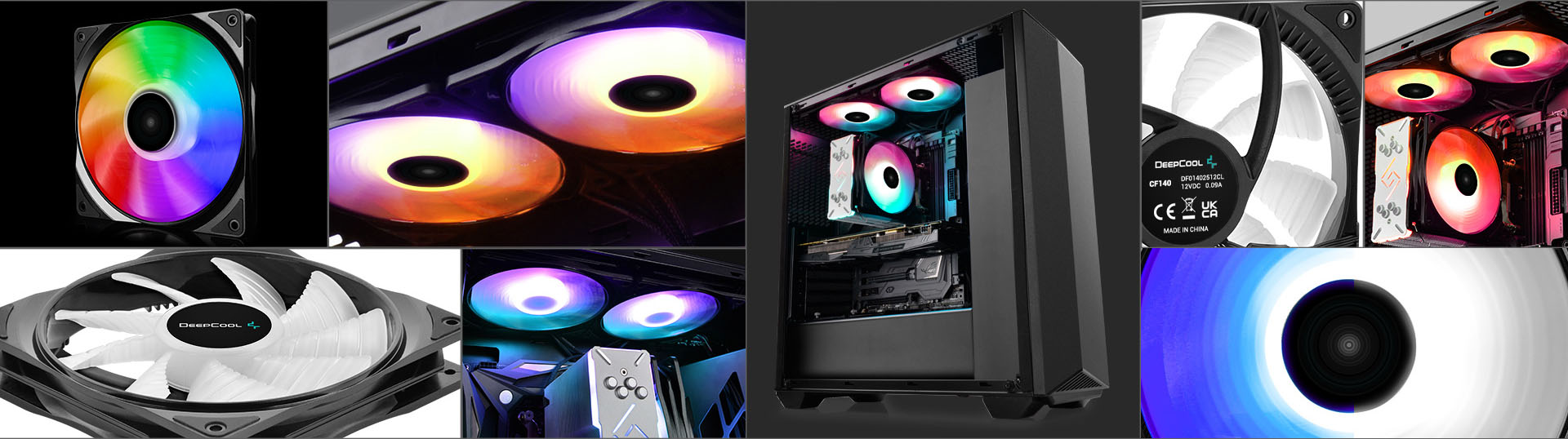

Customizable Addressable RGB LED Lighting
Utilize 12pcs of independently programmable RGB LED lights, CF120 provides full lighting for your build, achieving magical lighting effects with MB controls include 3 dynamic modes(waves, cycles and breathing) and 3 monochrome modes (constant light, breathing and meteor), up to 8 different colors to choose from
Synchronized Control via 5V A-RGB Header on MB
Can be easily controlled by MB through 5V A-RGB Header, no additional controller needed, and can synchronize with other A-RGB devices
|
Control by Using the Included A-RGB Controller
Use the included A-RGB Controller to control multiple Deepcool RGB devices, up to 6pcs
|
|
Better Balance on Performance & Low Noise

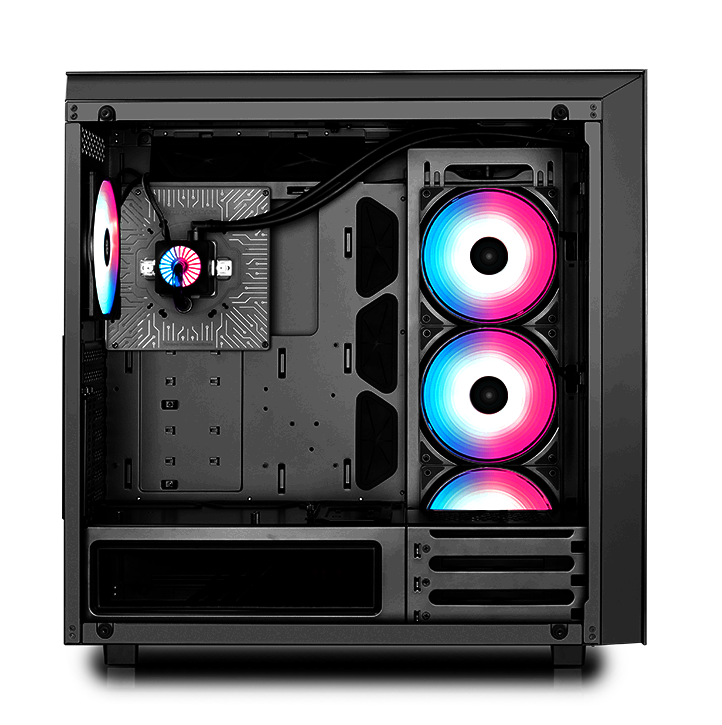

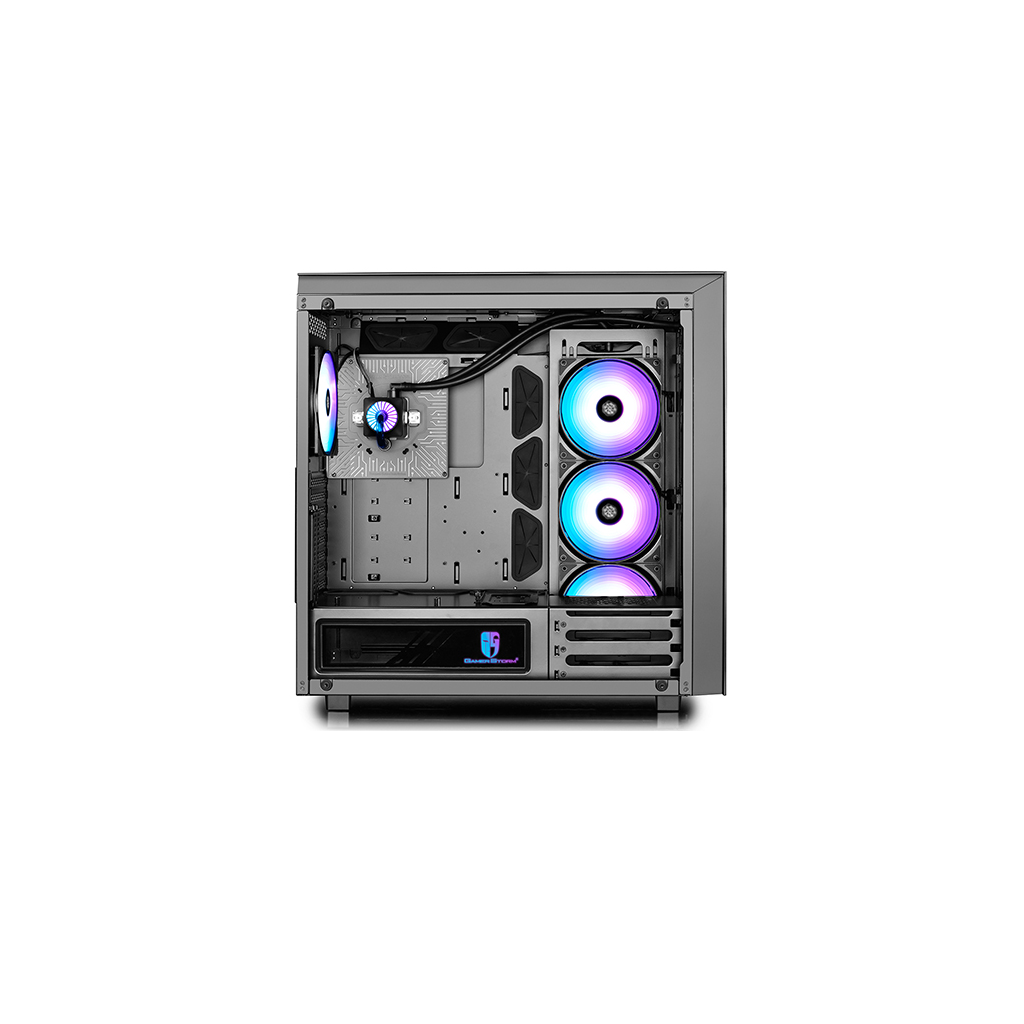

Better balance on air volume & air pressure, low noise, can be used as a case fan or CPU cooling fan
|
|
|
|
PWM Control
|
Super Silent
|
ADD-RGB LED
|
|
PWM Intelligent Control
Fan speed can be intelligently controlled by MB in accordance with temperature
|
|
Features
- Utilize 12pcs of independently programmable RGB LEDs for amazing display effects
*Can be easily controlled by MB through 5V A-RGB Header, no additional controller needed, and can synchronize with other A-RGB devices
- Use the included A-RGB Controller to control multiple devices
- Fan speed can be intelligently controlled by MB in accordance with temperature
- Better balance on air volume & air pressure, low noise, can be used as a case fan or CPU cooling fan
*WS2812B ADD-RGB LED is applied and the below 3pin ADD-RGB Headers are compatible for the device: 5V/D/G and 5V/D/NC/G, which is used for the mainstream M/B brands like ASUS, Gigabyte
|
Technical Spec
Fan Dimension |
140X140X26mm |
Net Weight |
436g |
Fan Speed |
500±200 -1200±10%RPM |
Fan Air Flow |
64.13CFM |
Fan Air Pressure |
1.09mmH2O |
Fan Noise Level |
19.8~24dB(A) |
Fan Connector |
4Pin |
FAN Rated Voltage |
12VDC |
FAN Operating Voltage |
10.8~13.2VDC |
FAN Starting Voltage |
7VDC |
FAN Rated Current |
0.02±15%A-0.09±10%A |
FAN Power Input |
1.08W |
Bearing Type |
Hydro Bearing |
LED Type |
Addressable RGB LED |
LED Rated Voltage |
5VDC |
LED Rated Current |
0.48±10%A |
LED Rated Power |
2.4W |
LED Connector |
3pin(+5V-D-G) |
LED Control |
M/B with 5V ADD-RGB Header |
EAN |
6933412710356 |
P/N |
DP-FA-RGB-CF140-2 |
|
Product Dimension
|
