AEROCOOL PROJECT 7 PRO GLASS WHITE

AEROCOOL PROJECT 7 PRO GLASS WHITE

Online Shop in Thailand



Categories: , Tag:
Description

RGB LIGHTING

Access 16.8 million colors and three LED modes with P7-S1 (Project7-Software1), available with our P7-Hub (P7-H1). RGB functions can also be controlled through motherboards with 4-Pin RGB configuration.

MONITOR FAN RPM

Monitors RPM of up to five fans compatible with either 4-pin or 3-pin connectors through the P7-H1 (Project7- Hub1)

AIR COOLING

Supports three 120mm intake fans

(P7-F12 x 3 included) or two 140mm intake fans

LIQUID COOLING

Supports 240mm, 280mm, or 360mm radiator

DUST FILTER

Removable dust filter in the front for easy cleaning and better maintenance

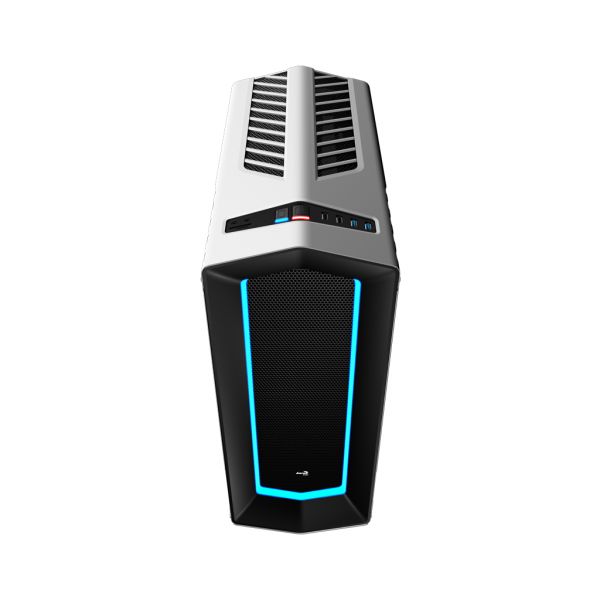

I/O PANEL

TOP COOLING

Exhaust Fan: 120mm x 2

TOP COOLING

Supports 240mm radiator x 1

CPU/GPU CLEARANCE

Supports CPU cooler up to 165mm

Supports GPU up to 375mm or 400mm (without fan)



STORAGE CAPACITY

2.5″ Drive Bays x 2



REAR COOLING

Supports 120mm fan x 1 (120mm Black Fan included)





STORAGE CAPACITY

2.5” Drive Bays x 2

3.5” Drive Bays x 2

SPECIFICATION

Model Name P7-C1 Pro
Case Type Mid Tower
Steel Thickness 0.6mm
Motherboards ATX / micro ATX / mini-ITX
Case Dimensions (Internal) 208mm x 475mm x 406.6mm (W x H x D)
Case Dimensions (Overall) 244.6mm x 550mm x 446.4mm (W x H x D)

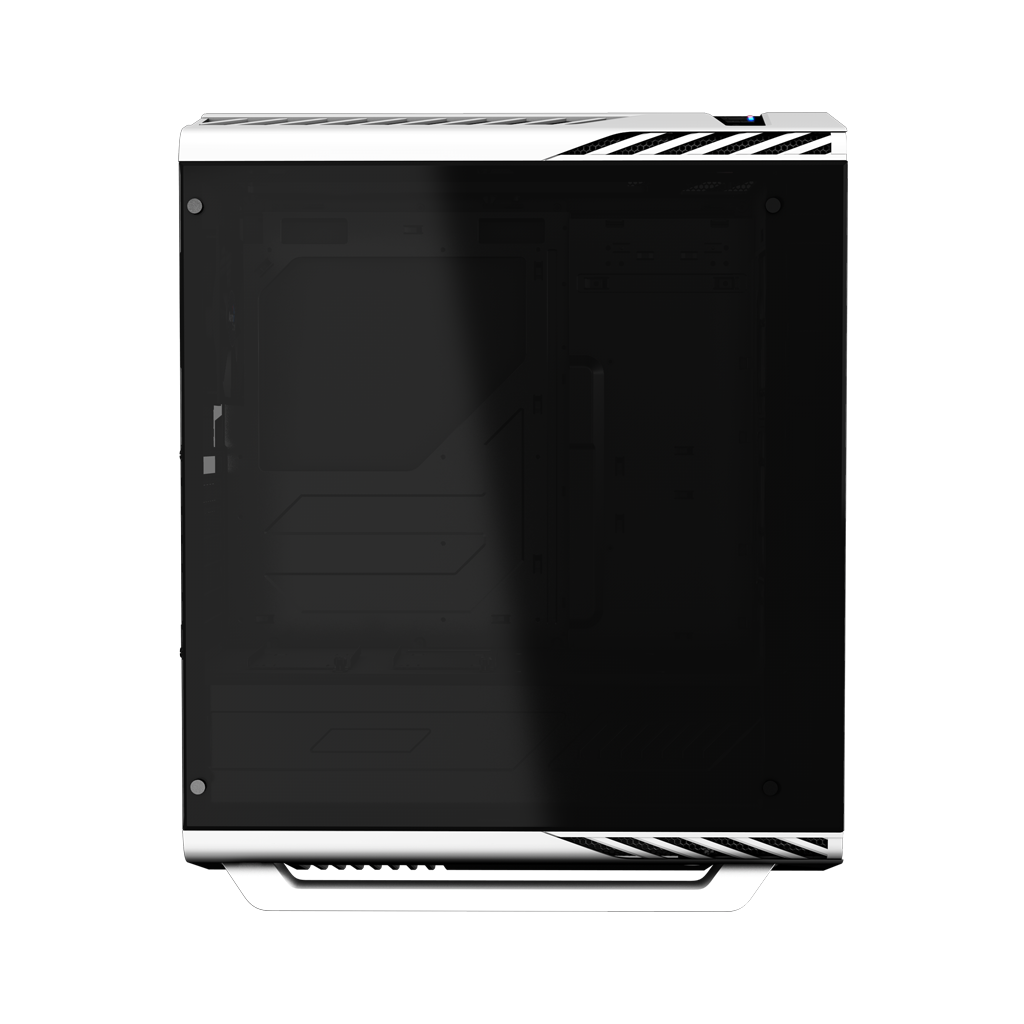

Side Panel Tempered Glass
3.5” Drive Bay 2 (Internal)
2.5” Drive Bay 4 (Internal)
Expansion Slot 7
GPU Clearance Supports GPU up to 375mm/400mm (without front fan)
CPU Clearance Supports CPU up to 165mm
I/O Ports USB3.0 x 2 | USB2.0 x 2 | HD Audio & Mic. | SD Card Reader
Air Cooling System Front: 120mm Fan x 3 or 140mm Fan x 2 (Includes 120mm x 3 RGB Fans)

Top: 120mm Fan x 2 (Optional)

Rear: 120mm Fan x 1 (120mm Black Fan Included)
Radiator Support Front: 240mm Radiator or 280mm Radiator or 360mm Radiator x 1 (Optional)

Top: 240mm Radiator x 1 (Optional)

Rear: 120mm Radiator x 1 (Optional)
Net Weight/Gross Weight 8.8Kg (19.4 Ibs)/10.4Kg (22.9 Ibs)
Power Supply ATX PSU (Optional)
EAN Code P7-C1 Pro Black 4713105958492

P7-C1 Pro White 4713105958508



Model Name P7-H1 (Project 7-Hub1)
System Compatibility Windows 7 and later
Connector 9-Pin USB2.0
LED Output Count 2 Connectors (Expandable)
LED Output (Watt) Up to 24 Watts
Fan Output 5 Connectors
Fan Output (Watt) Up to 18 Watts
Main Function Sets RGB colors, LED modes and monitors fan speeds

COOLING SYSTEM



P7-C1 Pro [ Rear ] [ Front ]
Black Edition
White Edition



Fan 120 x 120 x 25mm 120 x 120 x 25mm
Rated Voltage 12V 12V
Operating Voltage Range 6.0~13.2V 9.0~12.0V
Starting Voltage 6V 9V
Power Consumption 1.44W + 10% Max 1.8W + 10% Max
Rated Current 0.12A +- 10% Max 0.15A + 10% Max
Speed 1200 +- 10% RPM 1200 +- 10% RPM
Air Flow (CFM) 36.4CFM 45.8CFM
Air Pressure 1.32mm-H2O 1.01mm-H2O
Noise (dBA) 26.5dBA 14.5dBA
MTBF 20000 hours 60,000 hours
