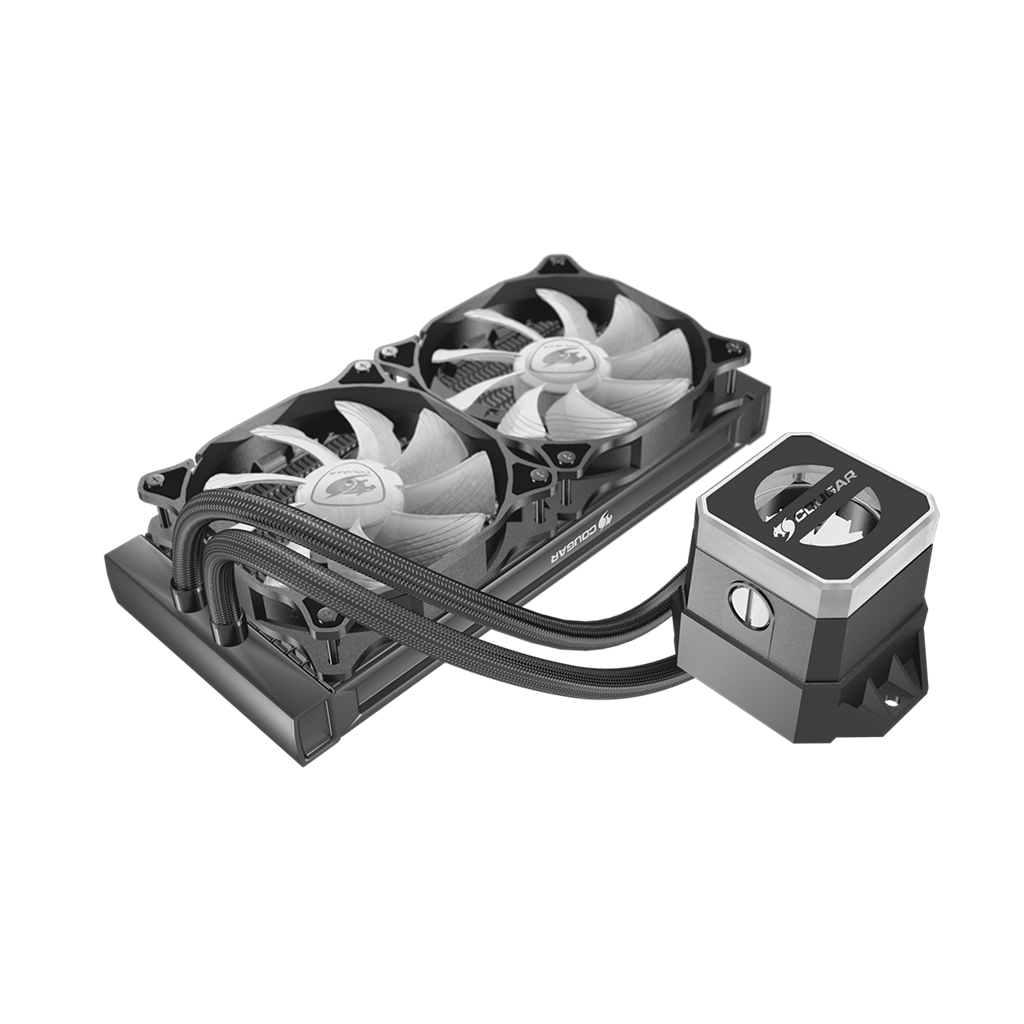

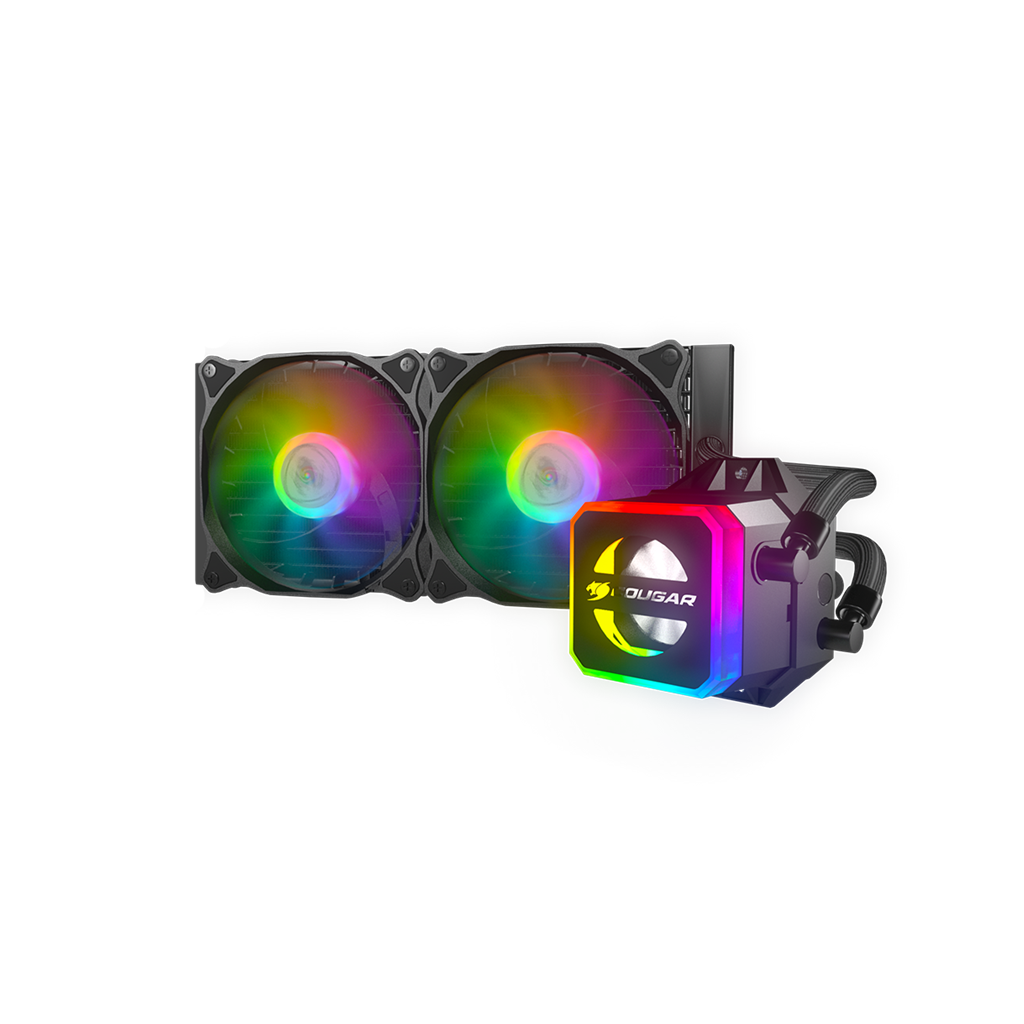

COUGAR HELOR 240
Let There Be COOL
COUGAR’s Helor Liquid Cooling Series is the perfect solution for gamers who require powerful CPU cooling with astounding visuals.
Online Shop in Thailand

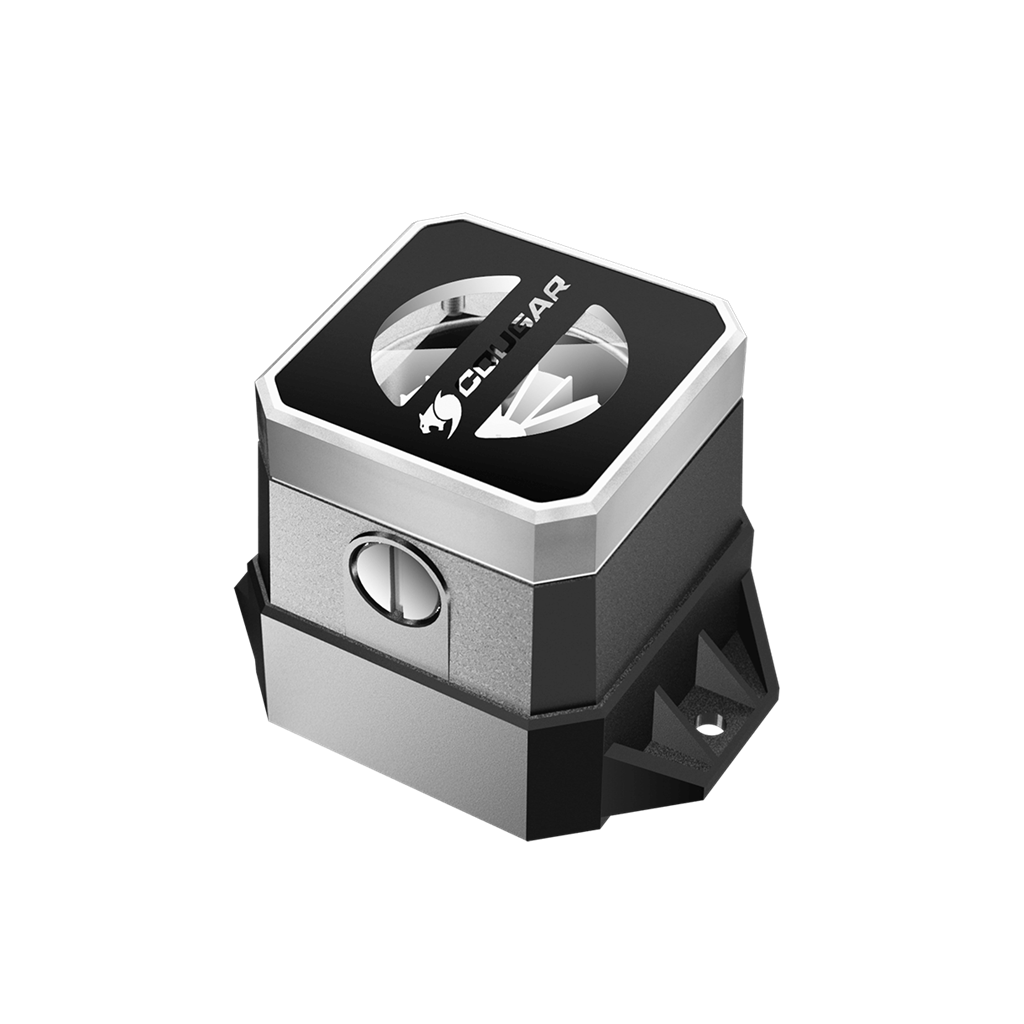

The Perfect Water Block: Durable and Convenient
The Helor Series’ Water Block packs together all the reliability and performance you expect from a high-end CPU cooler with a big transparent window to admire the lighting effects and check the coolant level.
Motherboard Synchronization + Core Box v2
Two ways to control this RGB powerhouse: with the included Core Box v2 and a remote controller, you have access to 100 preset RGB lighting effects. Through 3-pin 5v RGB motherboard synchronization, you can enjoy system-wide RGB effects!
Legendary Cooling
The Helor series’ advanced design allows it to get heat out of your system at amazing speeds. The union of the Vortex Omega fans’ spectacular performance, a radiator with enhanced fin thickness and the water block’s high efficiency in transferring heat to liquid allows it to make overheating a thing of the past.
Dynamic RGB Lighting
The Addressable LEDs in the water block and the fans provide a memorable lighting spectacle that will raise your computer to the category of an art piece.
Specifications
| Model Name | Helor 240 | |
| Model Number | RL-HLR240-V1 | |
| CPU Socket | Intel Socket 2066, 2011, 2011-3, 1366, 1156, 1155, 1151, 1150, 775 AMD Socket AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 (*) * Not compatible with Socket TR4 |
|
| Water Block & Pump | ||
| Dimensions (WxDxH) | 81.8 x 94.8 x 78.3 mm | |
| Cold Plate Material | Copper with Nickel Plating | |
| Pump Speed | 2700 ± 10% R.P.M | |
| Rated Voltage | 12 VDC | |
| Rated Current | 0.28 A | |
| Power Consumption | 3.36 W | |
| Cable Length | Pump power: 300 mm / LED power: 600 mm | |
| Connector & Control | 3 Pin Fixed Speed | |
| Lights | 12 Addressable RGB LEDs (5V) | |
| Radiator | ||
| Type | 240mm | |
| Dimensions (WxDxH) | 277 x 120 x 27 mm | |
| Material | Aluminum | |
| Package | ||
| Package Content | Helor 240 x 1 Vortex Omega 120 x 2 |
|
| Mounting Kit x 1 Core Box v2 & Power Connector x 1 Wireless Controller x 1 5V Addressable Header Adapter (Core Box v2 to M/B) x 1 1 to 3 Fan Splitter x 1 Maintenance Kit (100 ml Coolant & 1g Thermal Paste) x 1 User Manual x 1 |
||
| Tubing | ||
| Material | Durable Rubber with Sleeves | |
| Length | 360 & 400 mm | |
| Fans | ||

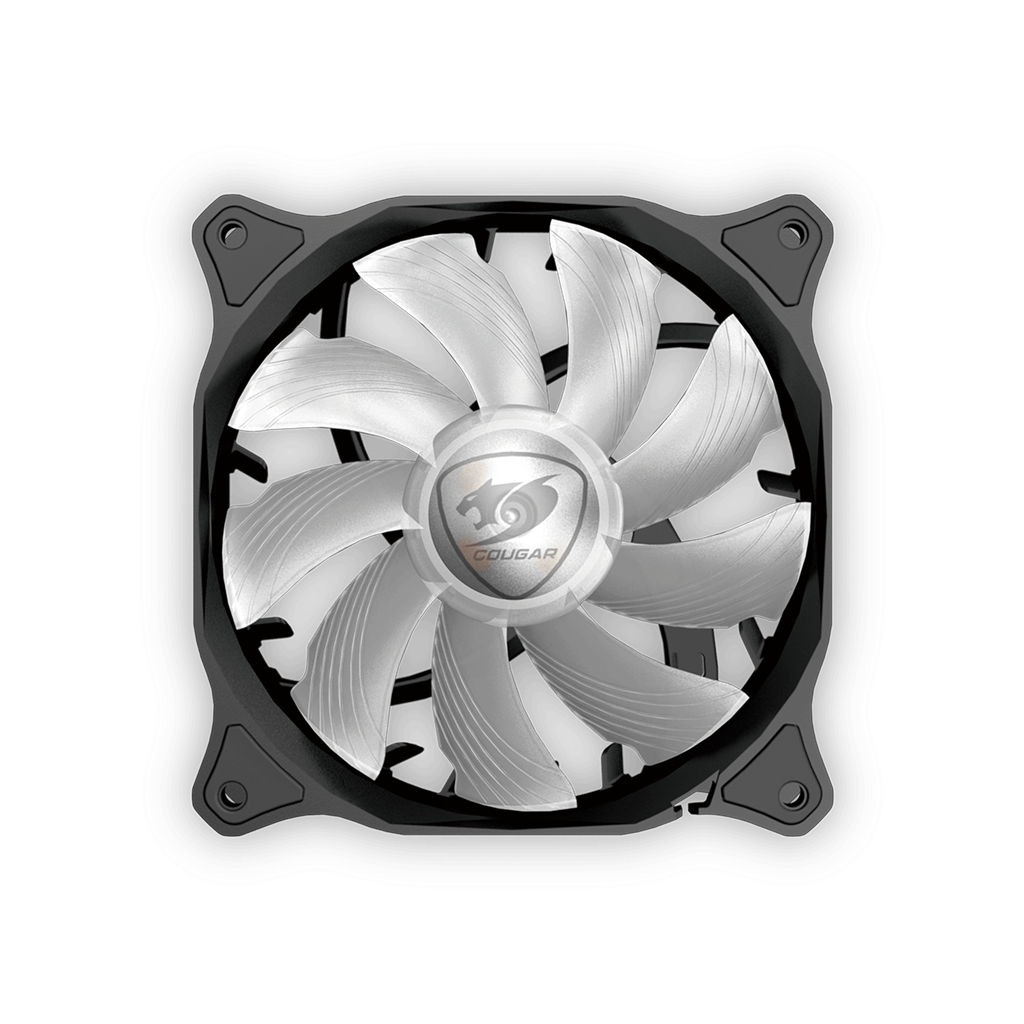

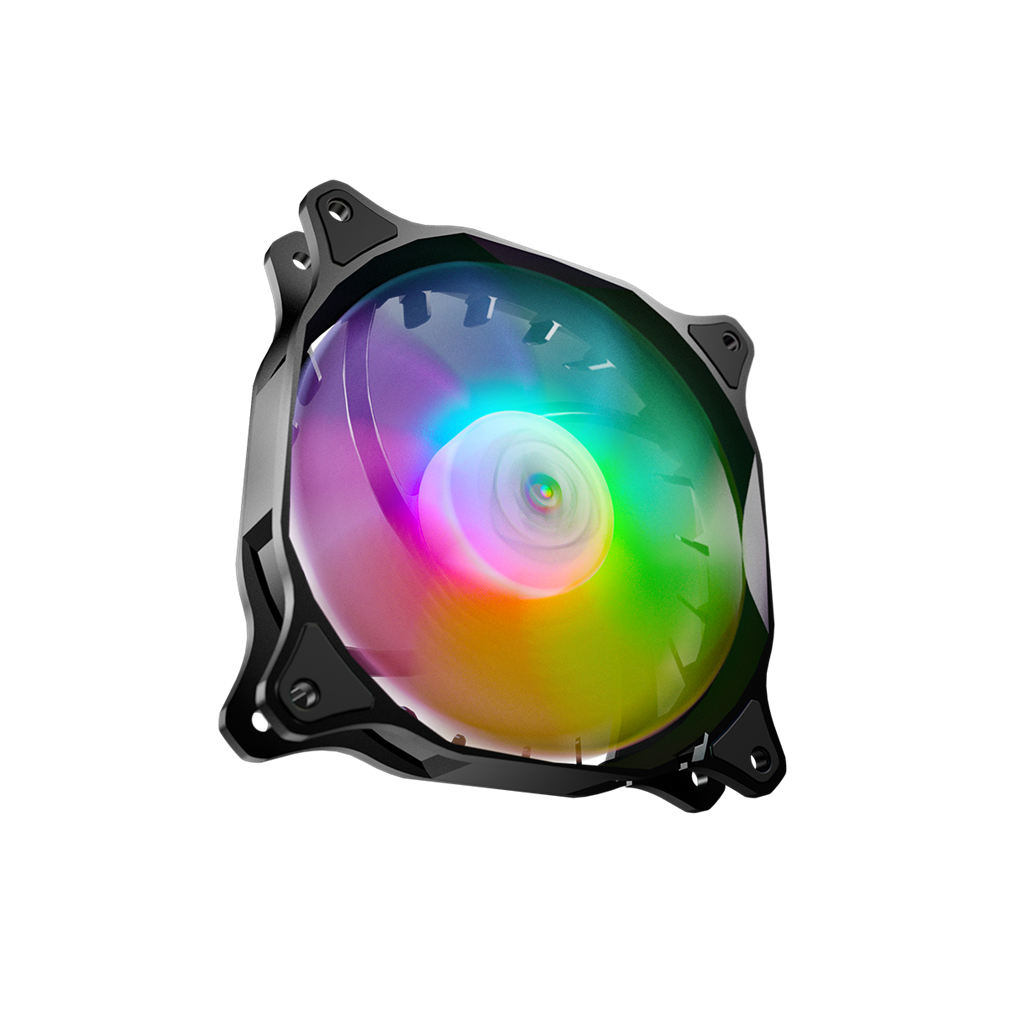

| Fan Model | Vortex Omega 120 | |
| Fan Quantity | 2 | |
| Dimensions (WxDxH) | 120 x 120 x 25 mm | |
| Bearing Type | Hydro-Dynamic Bearing | |
| Fan Speed | 600-1800 ± 200 R.P.M | |
| Air Flow | 78.4 CFM (Max.) | |
| Air Pressure | 2.4 mm-H2O (Max.) | |
| Acoustic Noise | 37.1 dBA (Max.) | |
| Rated Voltage | 12 VDC | |
| Rated Current | 0.32 A | |
| Power Consumption | 3.84 W | |
| Cable Length | Fan power : 600 mm / LED power : 600 mm | |
| Connector & Control | 4 Pin PWM | |
| Lights | 10 Addressable RGB LEDs (5V) | |
