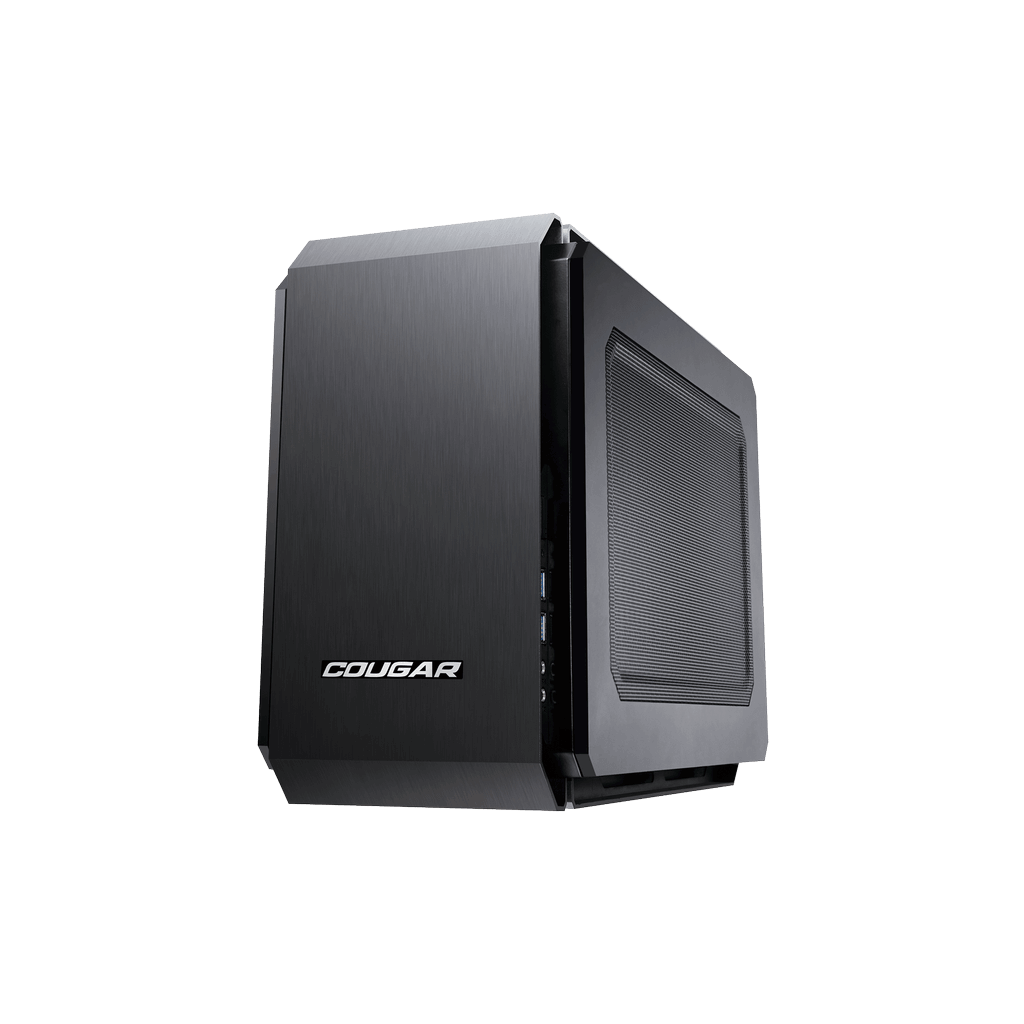

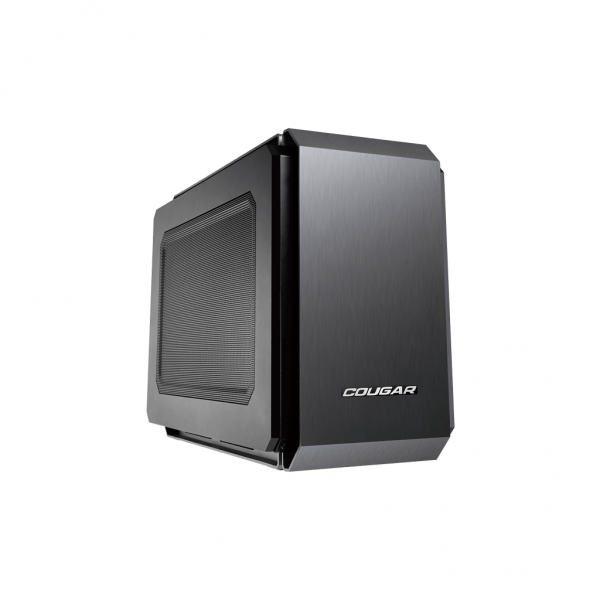

COUGAR QBX
Size Does Matter
Online Shop in Thailand
Compact
QBX’s 178 x 291 x 384 mm/7.01 x 11.46 x 15.12 (in) make it a highly compact case.
Gamers no longer need enormous desks with lots of space to install high-end gaming components
in order to enjoy new generation games.
Expandable: Powerful Graphics
The newest FPS?
Sure.
New generation 4K video games?
Of course.
With QBX Kaze, you gain access to new generation games in all their glory.
Maximum graphics cards length 350mm
Support for PS2 ATX Power Supply Units

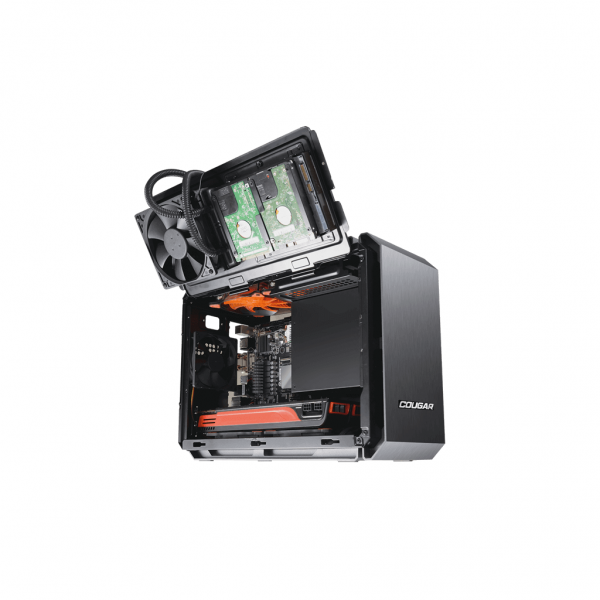

Expandable: Massive Storage + ODD
Up to 5 Storage Drives (1 x 3.5¨ HDD + 4 x 2.5¨ SSD/HDD) Access to CD, DVD, Blu-ray and other Disk Formats. Nobody likes those situations in which you need to uninstall a game to be able to install another one.
To prevent this, QBX supports enormous amounts of storage so that you can put all your games, music, movies and whatever you want inside it.
The Best Cooling of Its Class
QBX comes with the best cooling of any case of its class. With a maximum of seven fans (from 80mm to 120mm) and compatibility with up to 240mm radiators for water cooling solutions, QBX’s Pro-cooling design (including an independent power supply airflow) provides the best defence against overheating.
Left View
Optimum ventilation solution

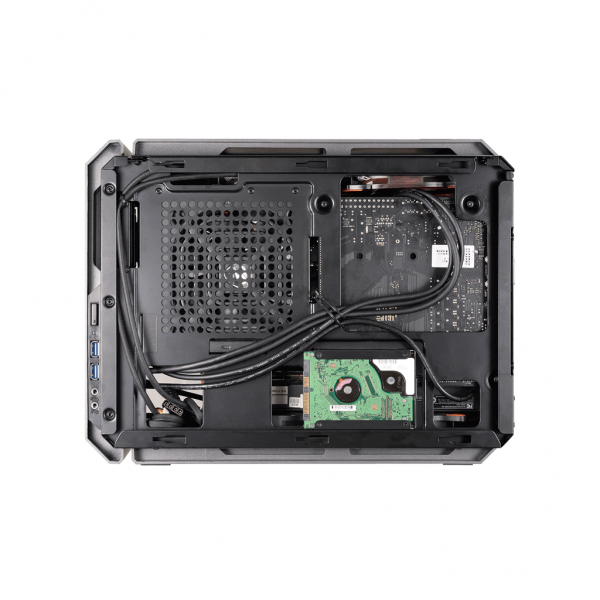

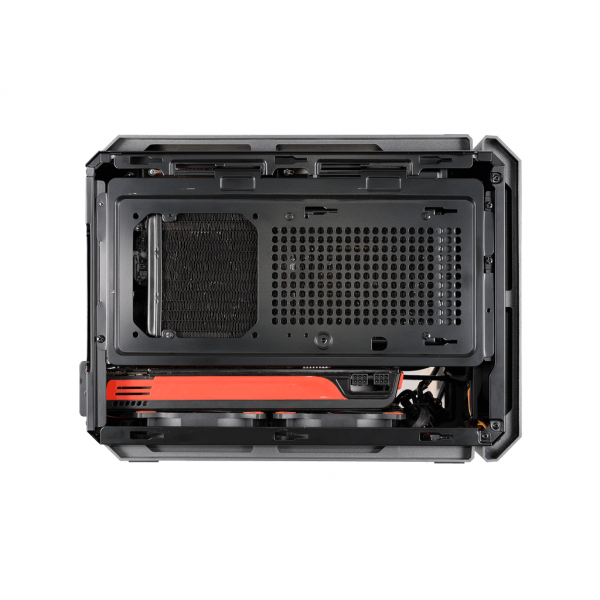

Right View
Independent power supply cooling solution
Top View
Support for 2 x 120mm fan on the top
Specifications
| Case Form Factor | Mini-ITX Case | |
|---|---|---|
| Motherboard Type | Mini-ITX | |
| Dimension (WxHxD) | 7.01 x 11.46 x 15.12 (in) 178 x 291 x 384 (mm) |
|
| Optical Disk Drive (ODD) Type | Supports ONLY Slot Loading Slim ODD | |
| 3.5″ Internal Drive Bay (HDD) | 1 | |
| 2.5″ Drive Bay (HDD/SSD) | 4 | |
| Expansion Slots (For example for Graphics Cards) |
2 | |
| I/O Panel | 2 x USB3.0/HD audio | |
| Cooling System Max. Supported Installation: Seven Fans |
Front | 80mm fan x 1 (optional) |
| Top | 120mm fans x 2 (optional) | |
| Rear | 90mm fan x 1 (pre-installed) | |
| Bottom | 120mm fans x 2 (optional) | |
| Left Side | 120mm fan x 1 or 240mm radiator with a single 120mm fan or 120mm radiator with a 120mm fan |
|
| Cable Management System | Cable feedthrough on the motherboard tray for easy routing and hiding of cables. | |
| Fan Filter (Cleanable) | 1 x Bottom Filter (pre-installed and removable) 1 x Front Filter (included, installed by the user) |
|
| Water Cooling Support | Left Side：240mm radiator with a single 120mm fan or Left Side：120mm radiator with a 120mm fan |
|
| Max. Graphics Card Length | 350mm (Support for High-End Graphics Cards) | |
| Max. CPU Cooler Height | 105mm | |
| PSU | PS2 ATX Type | |
| Max. PSU Length | 140 mm / 5.5 (in) | |
| Compatible PSU | supports the following COUGAR PSU series: A Series and STX Series. |
|
Related Products
-

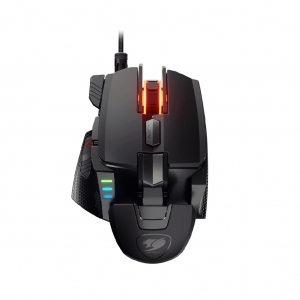

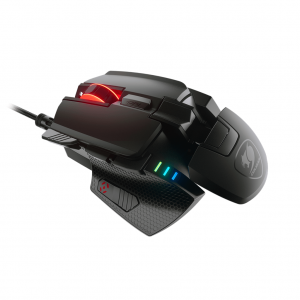

COUGAR 700M EVO
16000 DPI Optical Gaming Mouse
The final evolution of the gaming mouse world’s alpha predator. Taking all the customization, ergonomics and extended functionality that made 700M a winner, 700M EVO brings in a robust new optical sensor (Pixart PMW3389), further ergonomic enhancements and a new look to rule the online arenas.Online Shop in Thailand
-
COUGAR BUNKER BUNGEE
Vacuum Mouse Bungee
COUGAR Bunker is the perfect solution for those gamers who want to enjoy the superior reliability, response and accuracy of a wired gaming mouse while at the same time preventing the mouse cord from getting in their way.
With a patented design that provides unsurpassed durability, stability, and portability. COUGAR Bunker is one of the best investments a serious gamer can make.
Online Shop in Thailand
-

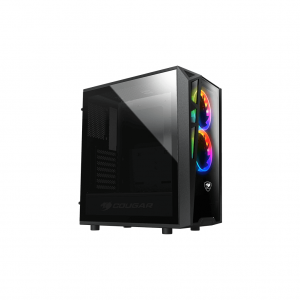

COUGAR TURRET RGB
