Great Looks

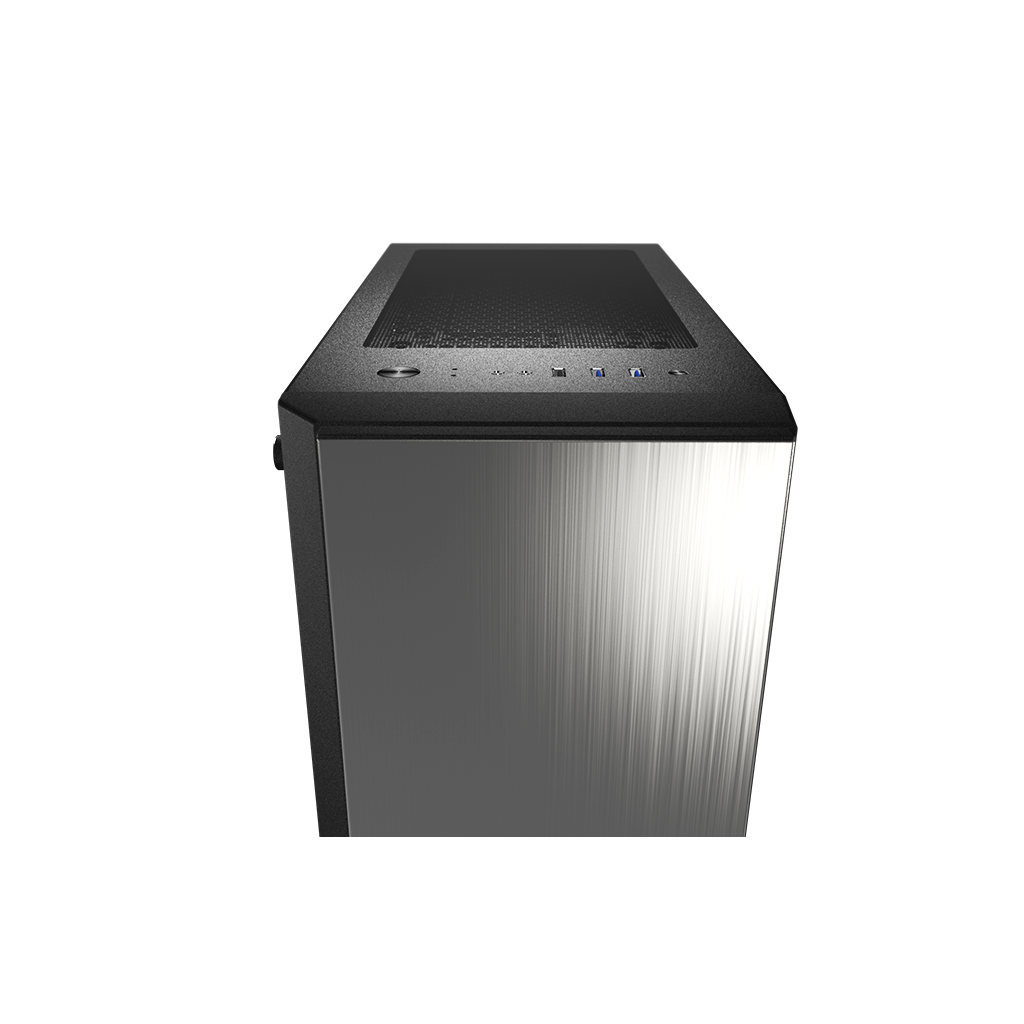

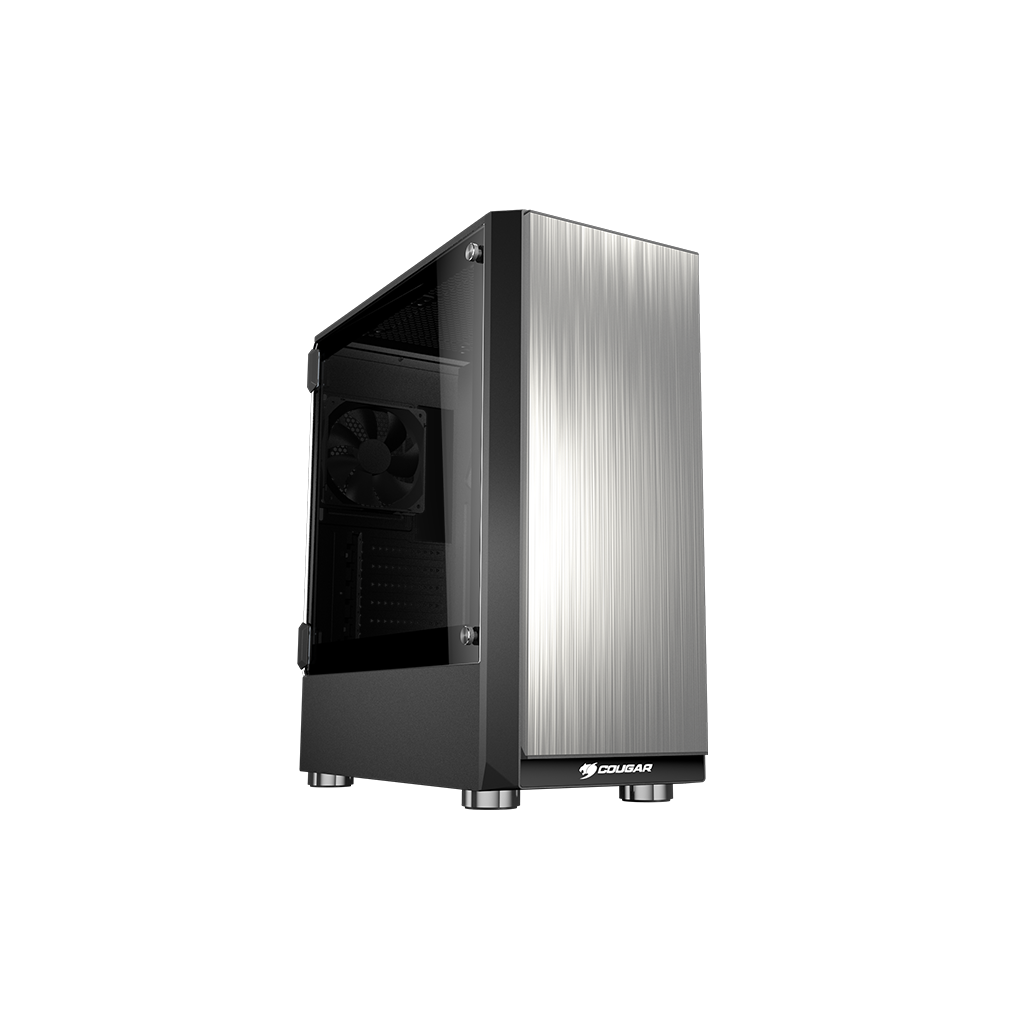

A hinged tempered glass side window allows you to see clearly your computer’s components and easily replace them, while the elegant brushed steel front panel gives it a modern and distinctive design. Good for both gamers and professionals, this is a case that looks great in any environment!
Extended Compatibility
With support for high-end motherboards up to 12″ x 13″ (E-ATX) and seven expansion slots for up to three 360mm graphics cards, you can build a wide range of powerful builds within Trofeo.
Great Cooling

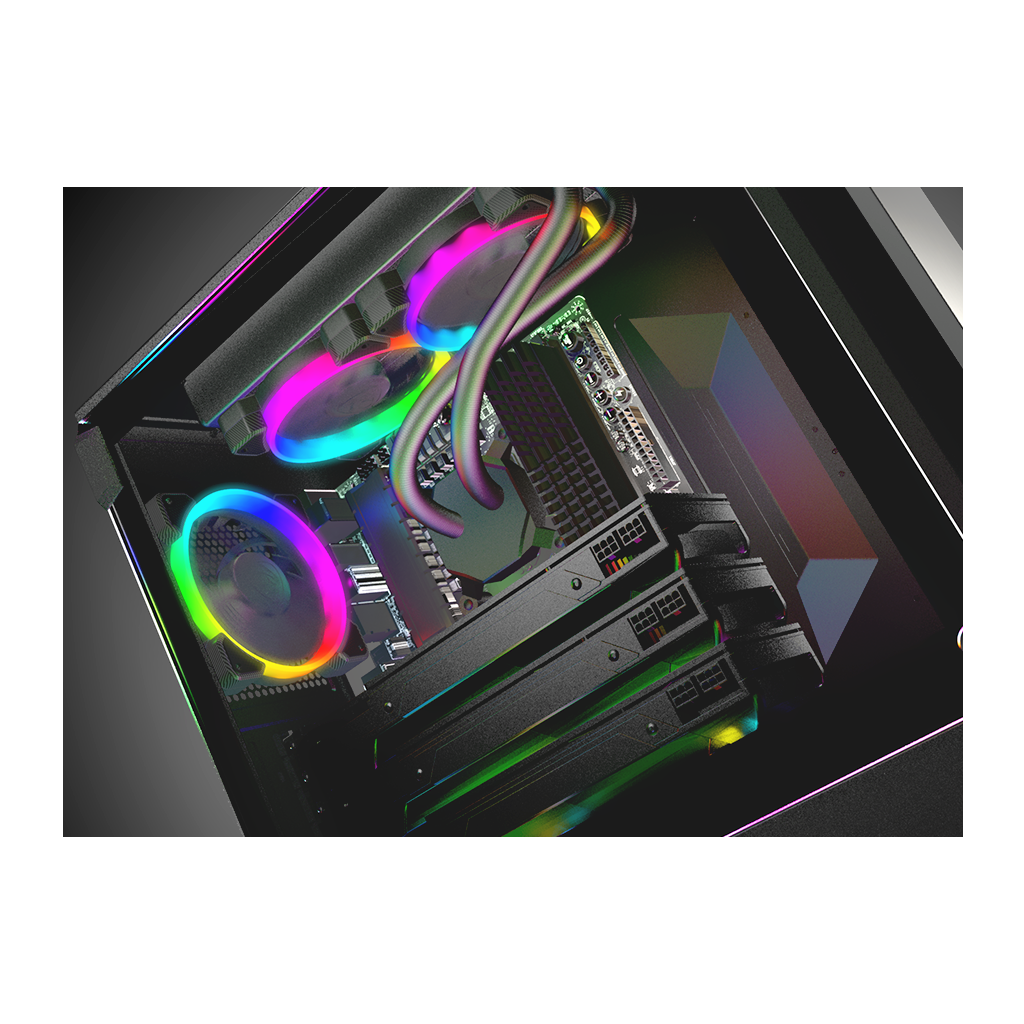

With support for up to nine fans and two radiators and two big vents on the sides of the front panel that provide quick access to fresh air, Trofeo helps you keep your computer’s temperature under control.
Water cooling radiator support |
Air cooling support |
Specifications
Model Name | TROFEO | |
Case Form Factor | Mid-Tower | |
Dimension (WxHxD) | 205 x 490 x 440 (mm) 8.07 x 19.29 x 17.32 (in) |
|
Motherboard Type | Mini ITX / Micro ATX / ATX / E-ATX | |
3.5″ Drive Bay | 2 | |
2.5″ Drive Bay | 3+2 (converted from 3.5″ drive bays) | |
I/O Panel | USB3.0 x 2 / USB2.0 x 1 / Mic x 1 / Audio x 1 | |
Maximum Number of Fans | 9 Max. | |
Cooling System | Front | 120mm x 3 |
Top | 140mm x 2 / 120mm x 2 | |
Rear | 120mm (pre-installed) | |
Bottom | 120mm x 3 | |
Water Cooling Support | Top | 280mm / 240mm / 140mm / 120mm |
Rear | 120mm | |
Expansion Slots | 7 | |
Max. Graphics Card Length | 360 (mm) / 14.17 (in) | |
Max. CPU Cooler Height | 160 (mm) / 6.29 (in) | |
PSU | Standard ATX PS2 | |
Max. PSU Length | 160 (mm) / 6.3 (in) |
