COUGAR VORTEX RGB SPB 120
PWM HDB COOLING KIT

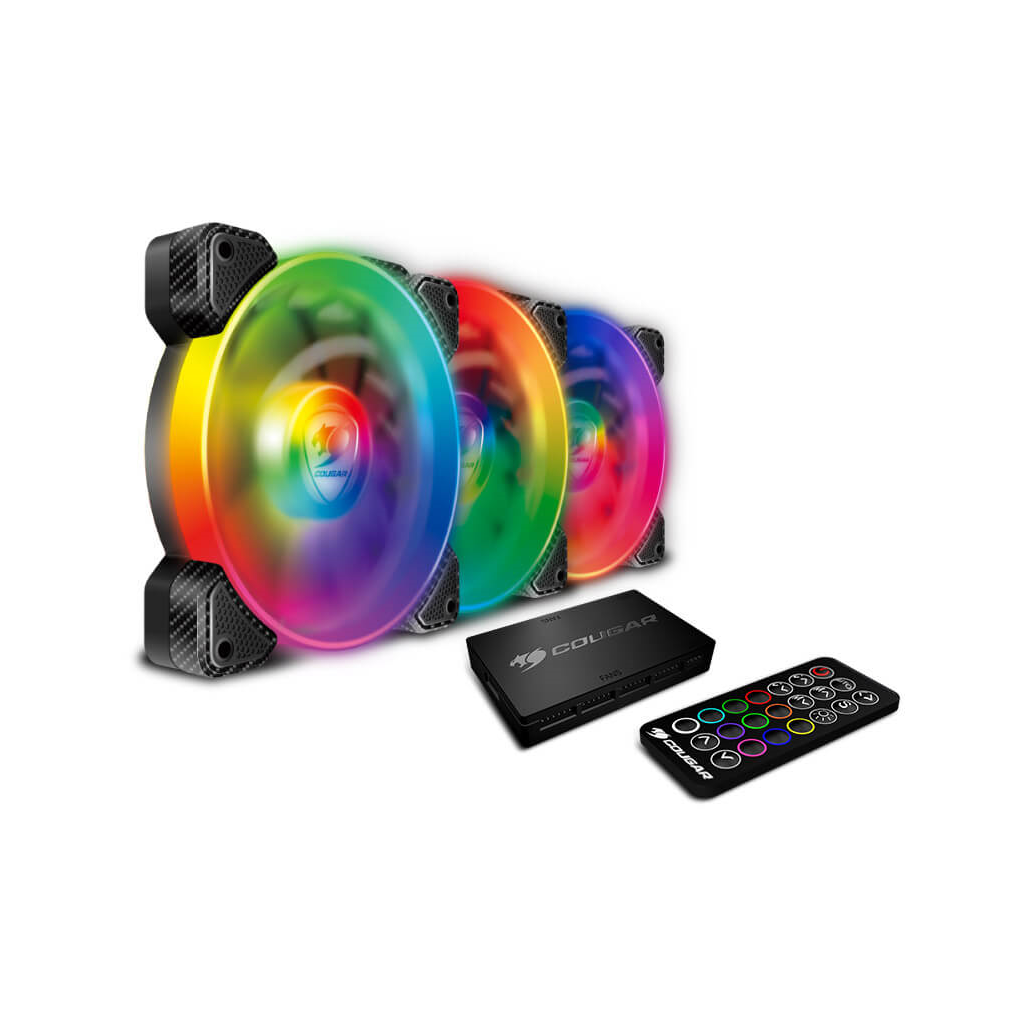

The VORTEX RGB SPB 120 Cooling kit brings you first-class silent cooling with omnidirectional addressable RGB lighting. This robust package includes the COUGAR Core Box v2, a remote controller and three Vortex RGB SPB 120 cooling fans, everything you need to create an incredible RGB build!
Online Shop in Thailand

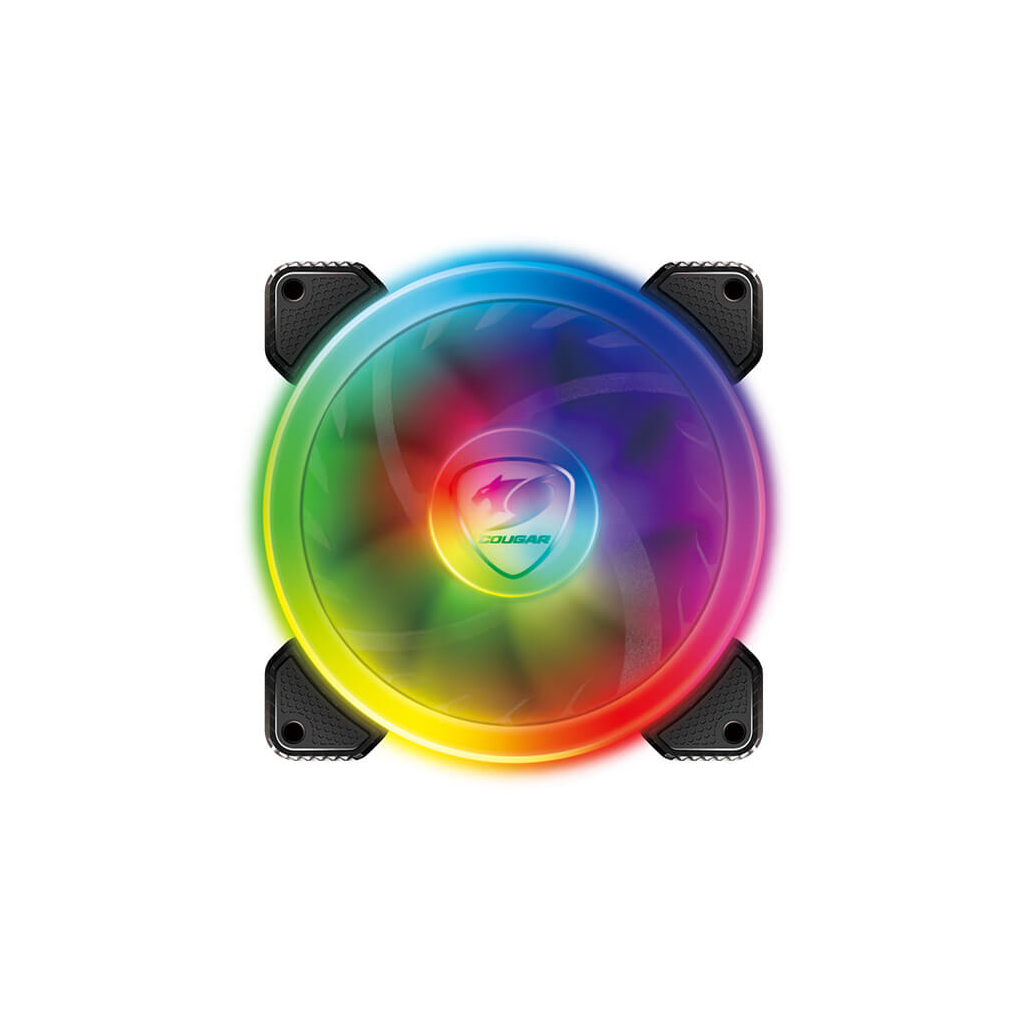

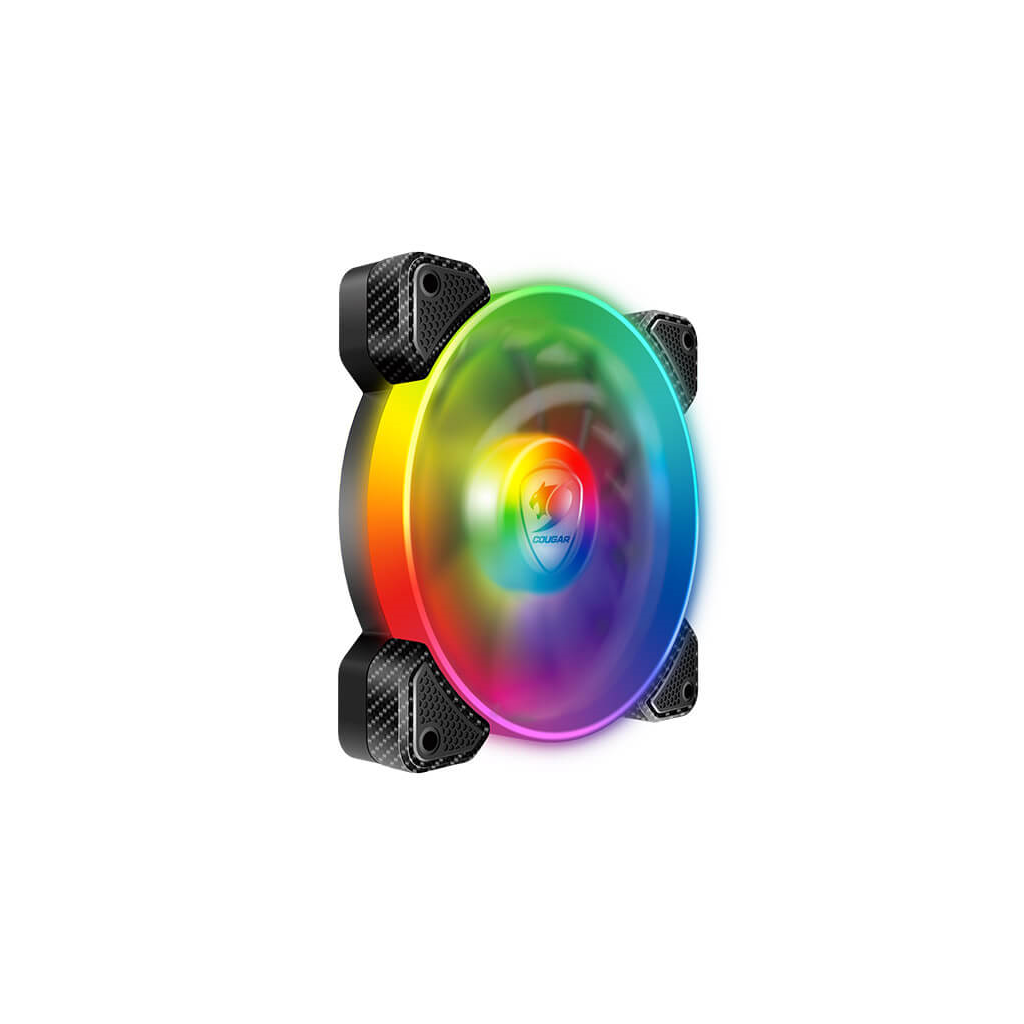

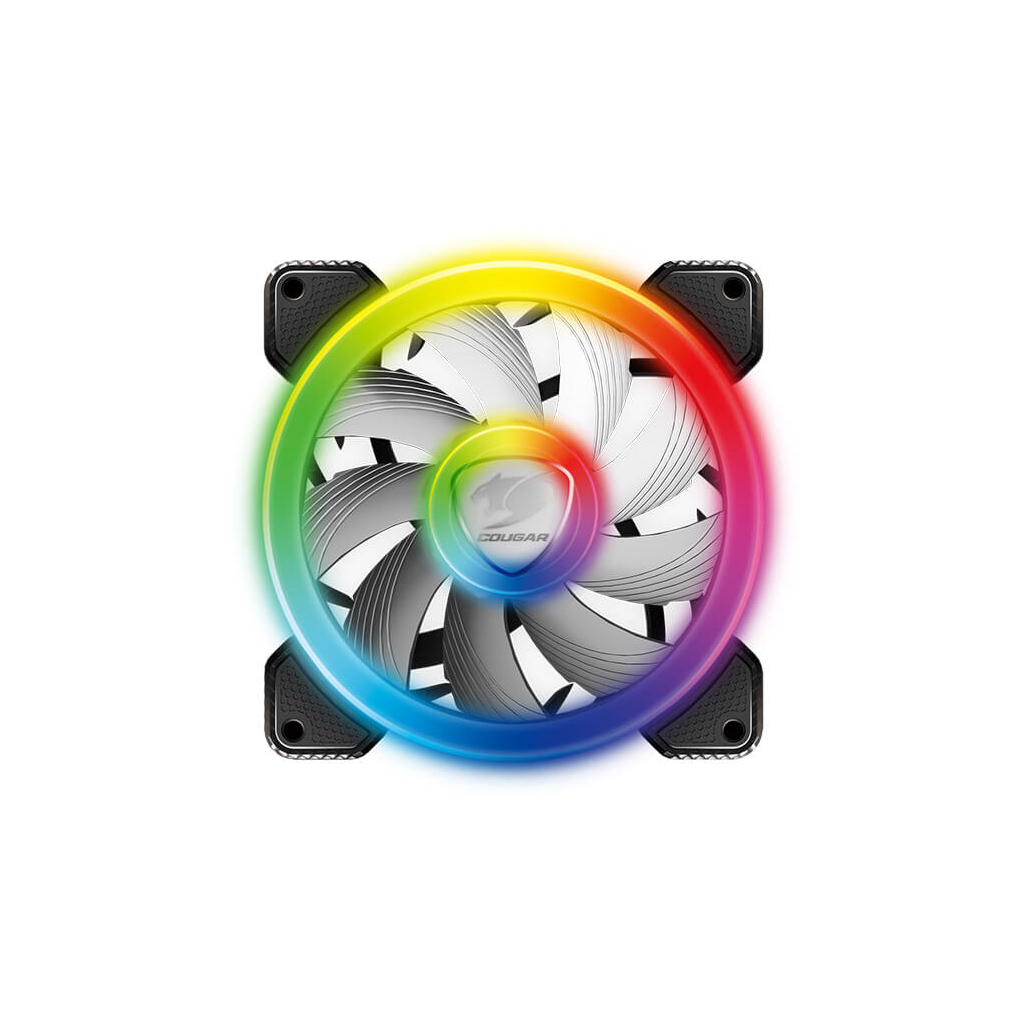

Omnidirectional Lighting

Patented Vortex Frame Design
Our patented frame design shapes the airflow into a vortex that works wonders when it comes to keeping your computer’s critical components cool.

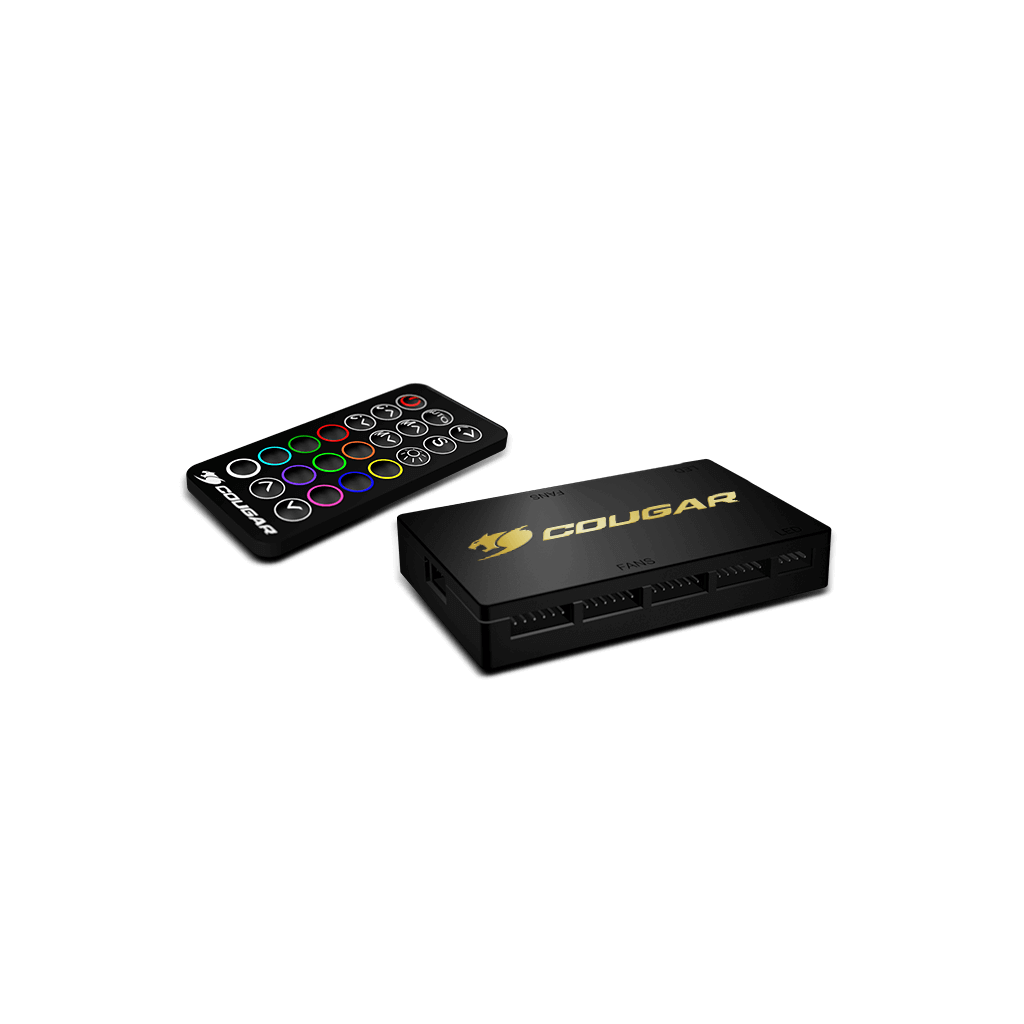

100 Effects with Driver-Free Remote Control
Customize your build’s appearance and change it at will with more than Preset 100 impressive lighting effects. Choose colors, lighting patterns, brightness and speed with the included wireless controller and make full use of each fan’s 24 addressable LEDs!

Make it Bigger
The 3 included VORTEX RGB SPB 120 cooling fans can by themselves create a truly magical atmosphere, but some users want even more. Fear not! The COUGAR Core Box v2 supports up to 8 RGB fans, and 4 RGB LED strips, enough to make your PC overflow with light.

Motherboard RGB Synchronization


Optimized Cooling (PWM)
Pulse-width Modulation is a technology that allows the mainboard, through the 4-pin connector, to adjust the fan speed in a range that goes from 600 to 1500 R.P.M., reaching the optimal balance between cooling and audible output while keeping a constant 12V operating voltage. The cooling you need without the extra noise!

Hydro-Dynamic Bearing (HDB)
The hydro-dynamic bearing technology brings a triple benefit: it increases the fan’s useful life, allows it to operate with less noise and minimizes heat generation.

Specifications
Model | CF-V12SET-SPBRGB |
---|---|
Product Name | VORTEX RGB SPB 120 PWM HDB Cooling Kit |
Dimensions | 120 x 120 x 25mm |
Bearing Type | Hydro-Dynamic Bearing |
Speed | PWM 600-1500 R.P.M |
Air Flow | 43.54 CFM 73.94 m3/h |
Air Pressure | 1.17mm H2O |
Fan Voltage | 12 VDC |
LED Voltage | 5 VDC |
Acoustical Noise | 26 dBA |
Cable Length | 600mm |
LED Lights | 24 |
LED Power Consumption | 2.4W |
Package Content | VORTEX RGB SPB 120 Cooling Fan x 3 Core Box V2 & Power Connector Wireless Controller 4 to 4 Pin Adapter x 3 5V Addressable Header Adapter Fan Screws User Manual |
