DEEPCOOL BARONKASE LIQUID

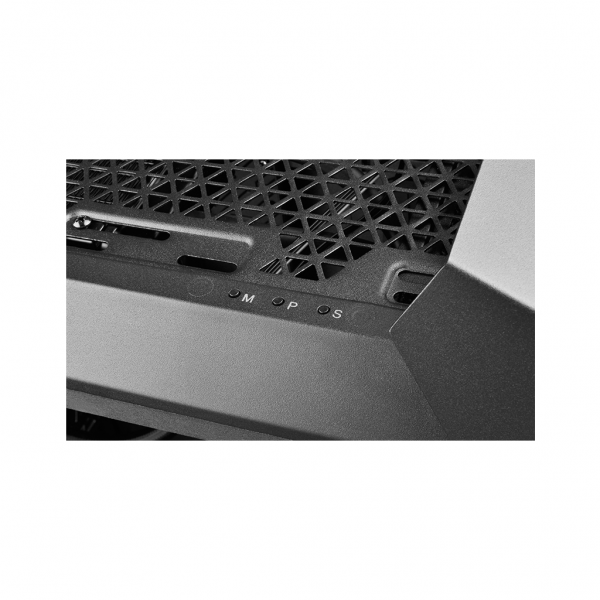

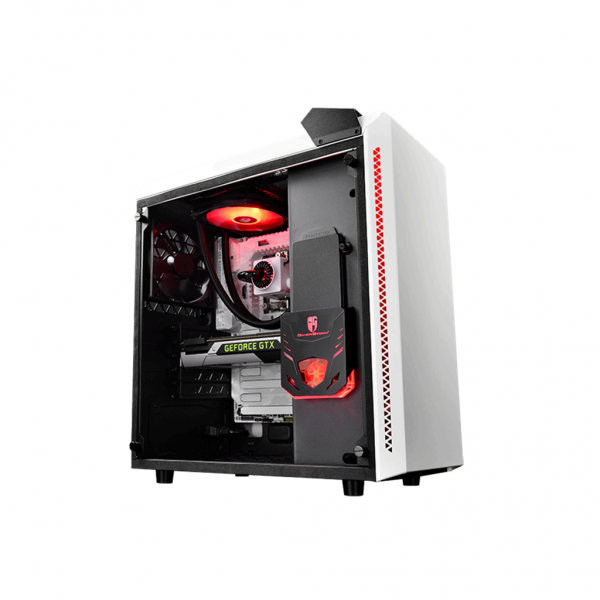

The BARONKASE LIQUID case features a multi-point lighting system with manual control from the top panel. A tempered glass side panel safely mounted on soft buffered screws allows all the interior features to be seen and admired.
Online Shop in Thailand

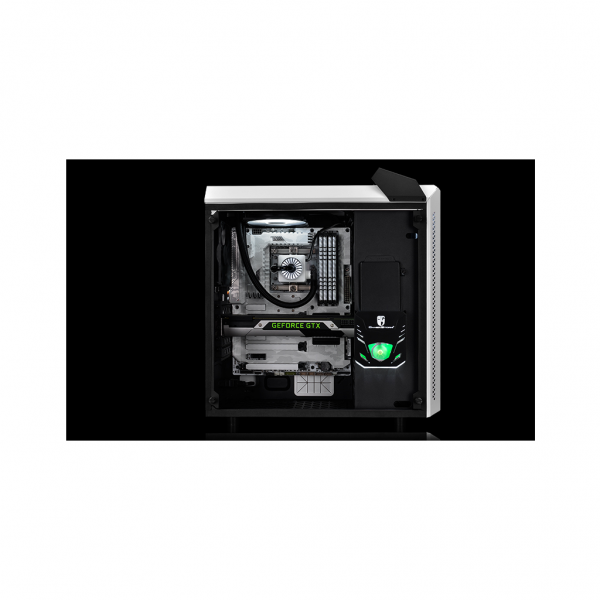

BARONKASE LIQUID is a new MATX size all-metal case that features a pre-installed Integrated Liquid Cooling System with a 120mm Radiator. It supports a full sized ATX mainboard, which is achieved by allowing the PSU to be mounted at the top of the case towards the front and bringing power to the PSU with an extension cable provided. Full length graphics cards can also be fitted by removing a name plate on the back panel.

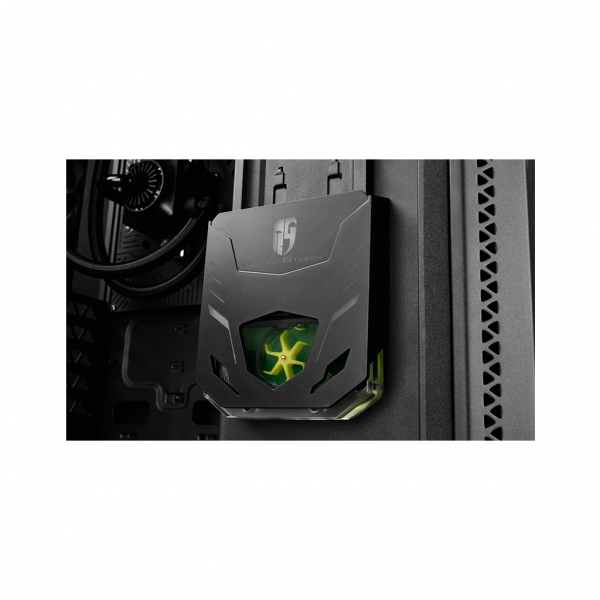

The water-block is supplied mounted on a specially designed board to keep it stable and safe during transportation

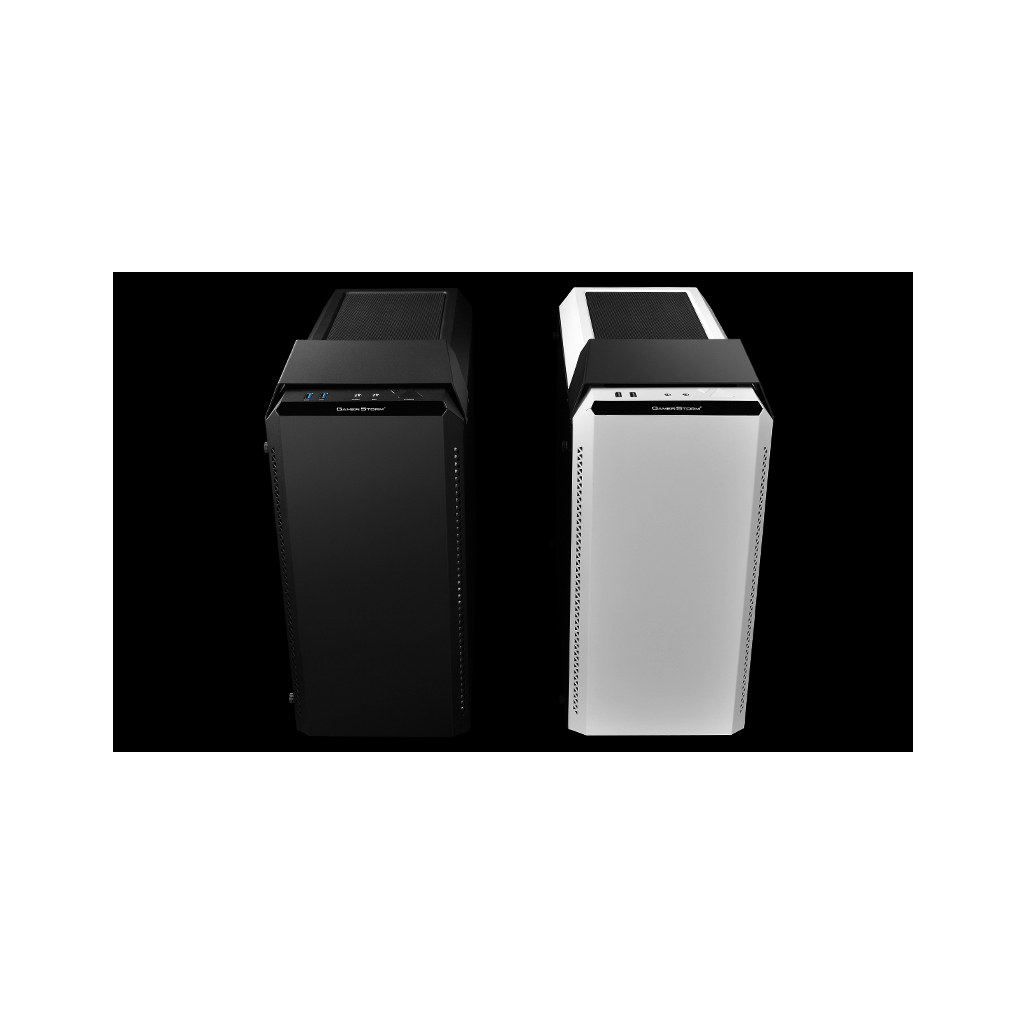

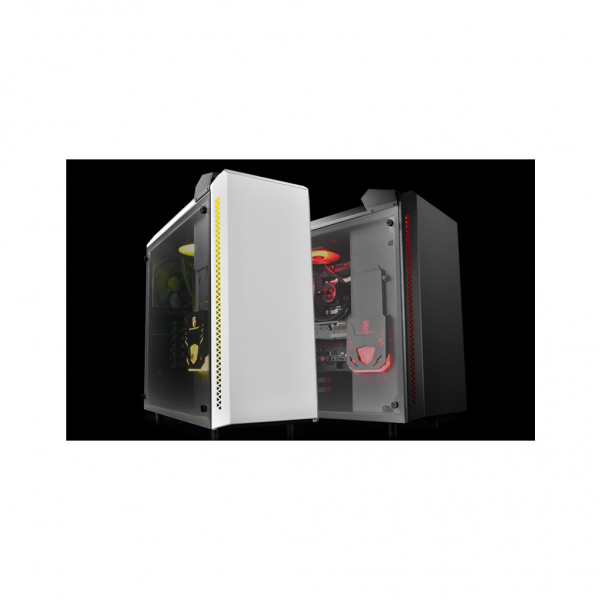

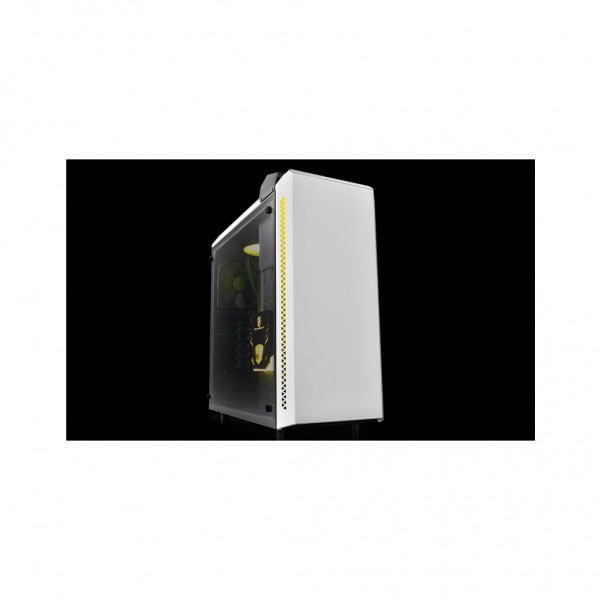

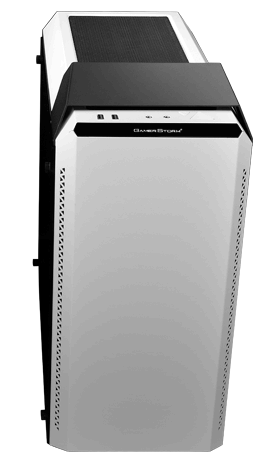

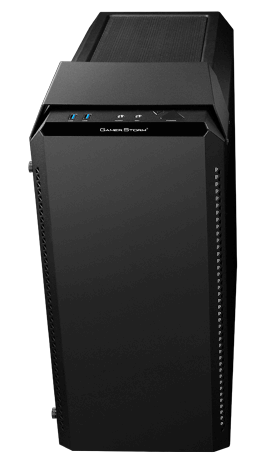

The All-metal Front Panel is available in a choice of Black or White
 |
 |
Features
MATX Size Supports ATX MB
Tempered Glass Side-panel
Pre-installed Integrated Liquid Cooling System with 120mm Radiator
Combined RGB Lighting System with Manual Controller
All-metal Front Panel
Application For
|
Intel Socket 150W |
AMD Socket 140W |
|
LGA20XX/LGA1366/LGA115X |
AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Ryzen
APU A12/A10/A8/A6/A4 FX 8/6/4-Core Phenom II X6/X4/X3/X2 Athlon II X4/X3/X2 Athlon X4 |
Technical Spec
| Materials | SPCC(thickness: side panel:0.7mm, Glass: 4mm, Front panel:1.2mm) |
| Product Dimension (LxWxH) | 423×215×470mm |
| Weight | Net Weight:10 kg; Gross Weight:11 kg |

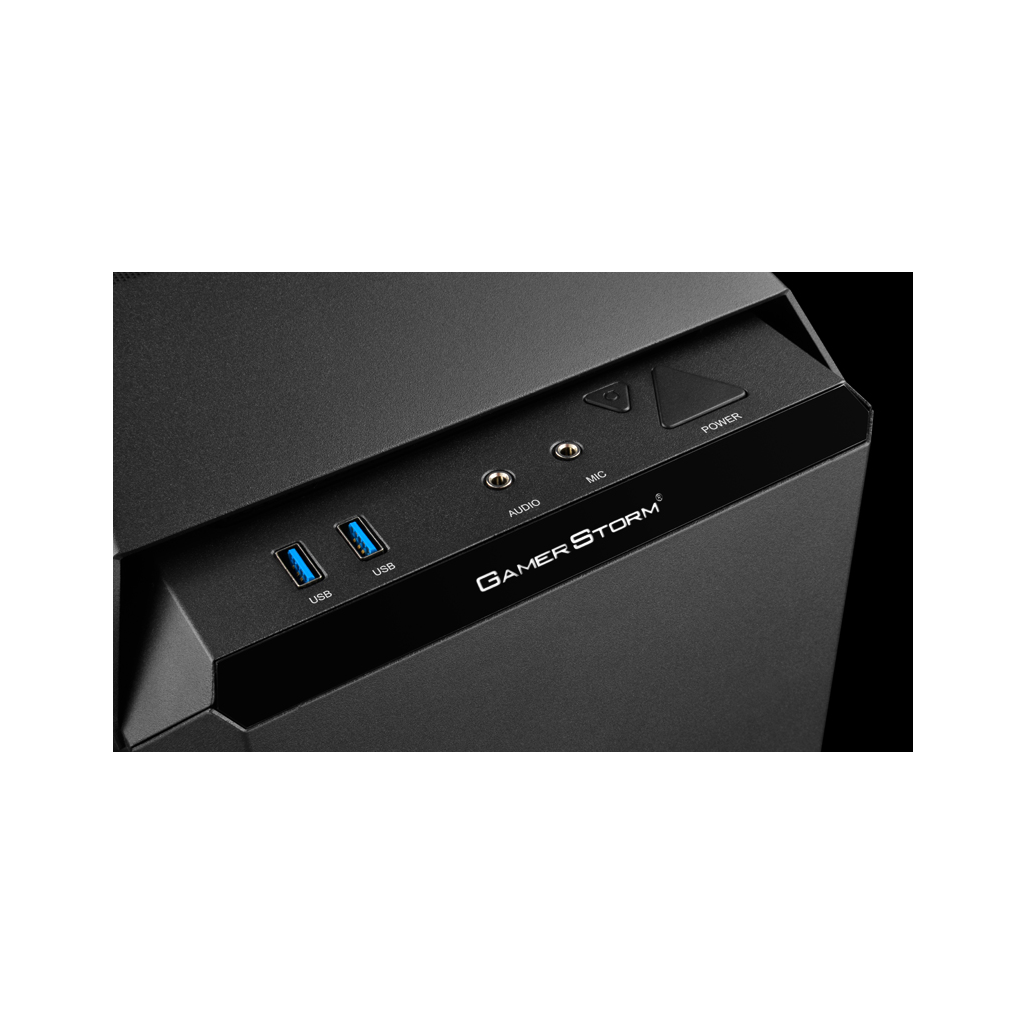

| I/O Panel | 2×USB3.0 /Audio(HD)×1/Mic×1/Manual Controller for RGB |
| Motherboards | ATX/MATX/MINI-ITX |
| Drive Bays | 5.25”Drive Bays×0; 3.5“/2.5”Drive Bays×2; 2.5“Drive Bays×3 |
| Expansion Slots | 5 |
| Cooling Fans | Pre-installed: Rear: 1×120mm fan; Top: 1×120mm RGB fan Optional: Front: 2×120 or 1×140; Top: 2×120/ 2×140mm Bottom: 2×120mm in case of PSU installed at top |
| CPU Cooler Compatibility | 168mm height limit /Liquid Cooler: 120mm radiator liquid cooling system pre-installed at top; Optional: 120mm radiator at rear; 120/240/140/280mm radiator at top |
| Power Supply Support | ATX PS2 (maximum length: 200mm at bottom, 160mm at top) |
| Graphic Card Clearance | Maximum 340mm length |
| Carton Dimension | 497×282×506mm |
| Water Block Dimensions | 92.5×93×85mm(L×W×H) |
| Radiator Dimensions | 154×120×27mm(L×W×H)(aluminum material) |
| Fan Dimensions | 120×120×25mm RGB Fan |
| Fan Speed | 500±150-1800±10%RPM (4Pin) |
| Fan Air Flow | 69.34 CFM (MAX) |
| Fan Noise Level | 17.8~30dB(A) |
| Fan Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12VDC |
| Fan Rated Current | 0.32A |
| Fan Power Consumption | 3.84W |
| Pump Connector | 3Pin |
| Pump Operating Voltage | 6~13.8VDC |
| Pump Rated Voltage | 12VDC |
| Pump Speed | 2300±10%RPM |
| Pump Current | 0.2A(MAX) |
| Pump Power Consumption | 2.4W |
| EAN (WH) | 6933412713401 |
| P/N (WH) | DP-MATX-BNKSWH-LQD |
| EAN | 6933412713395 |
| P/N | DP-MATX-BNKSBK-LQD |
Product Dimensions
