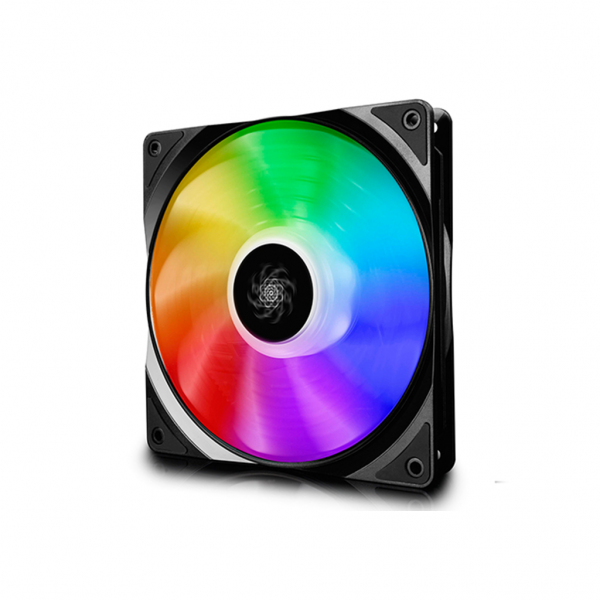

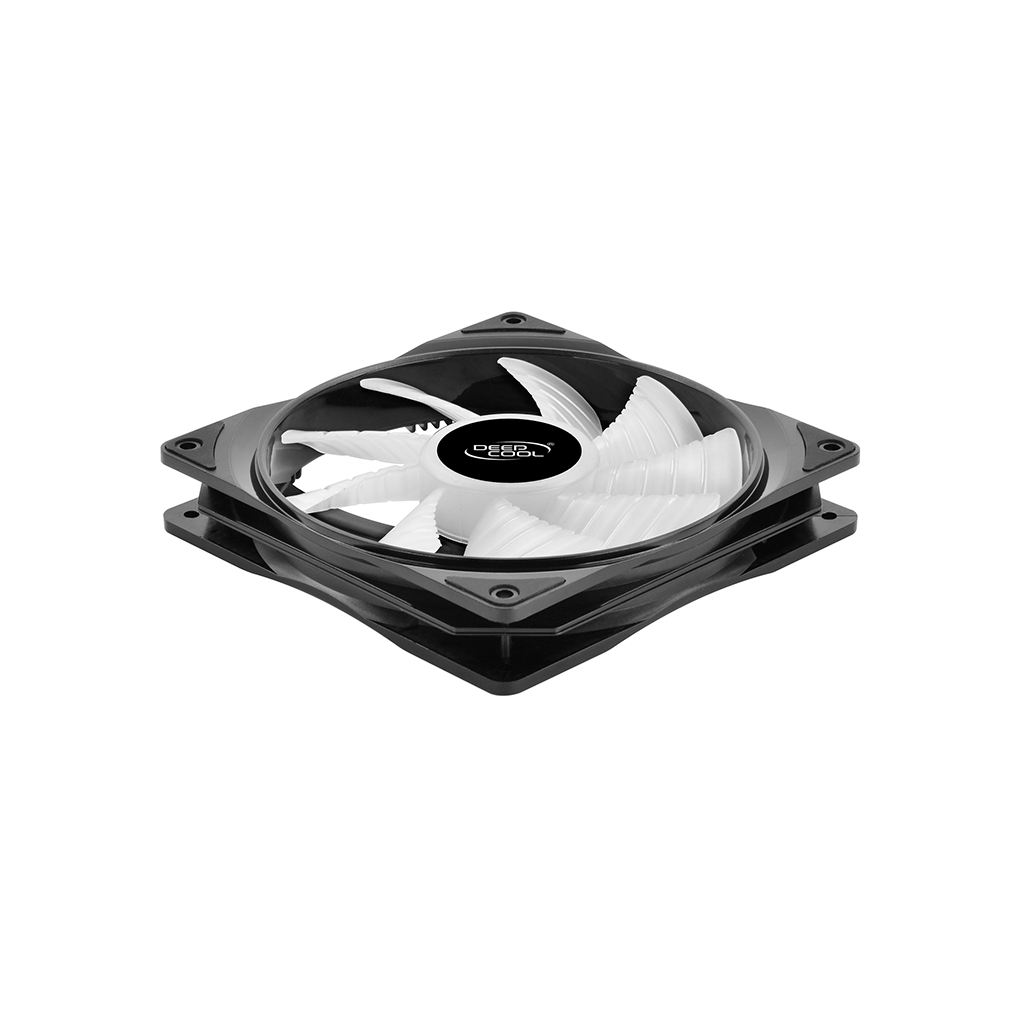

DEEPCOOL CF140 RGB

DEEPCOOL CF140 RGB

Online Shop in Thailand
Categories: , Tag:
Description

Customizable Addressable RGB LED Lighting

Utilize 12pcs of independently programmable RGB LED lights, CF120 provides full lighting for your build, achieving magical lighting effects with MB controls include 3 dynamic modes(waves, cycles and breathing) and 3 monochrome modes (constant light, breathing and meteor), up to 8 different colors to choose from

Synchronized Control via 5V A-RGB Header on MB

Can be easily controlled by MB through 5V A-RGB Header, no additional controller needed, and can synchronize with other A-RGB devices
Control by Using the Included A-RGB Controller
Use the included A-RGB Controller to control multiple Deepcool RGB devices, up to 6pcs
Better Balance on Performance & Low Noise

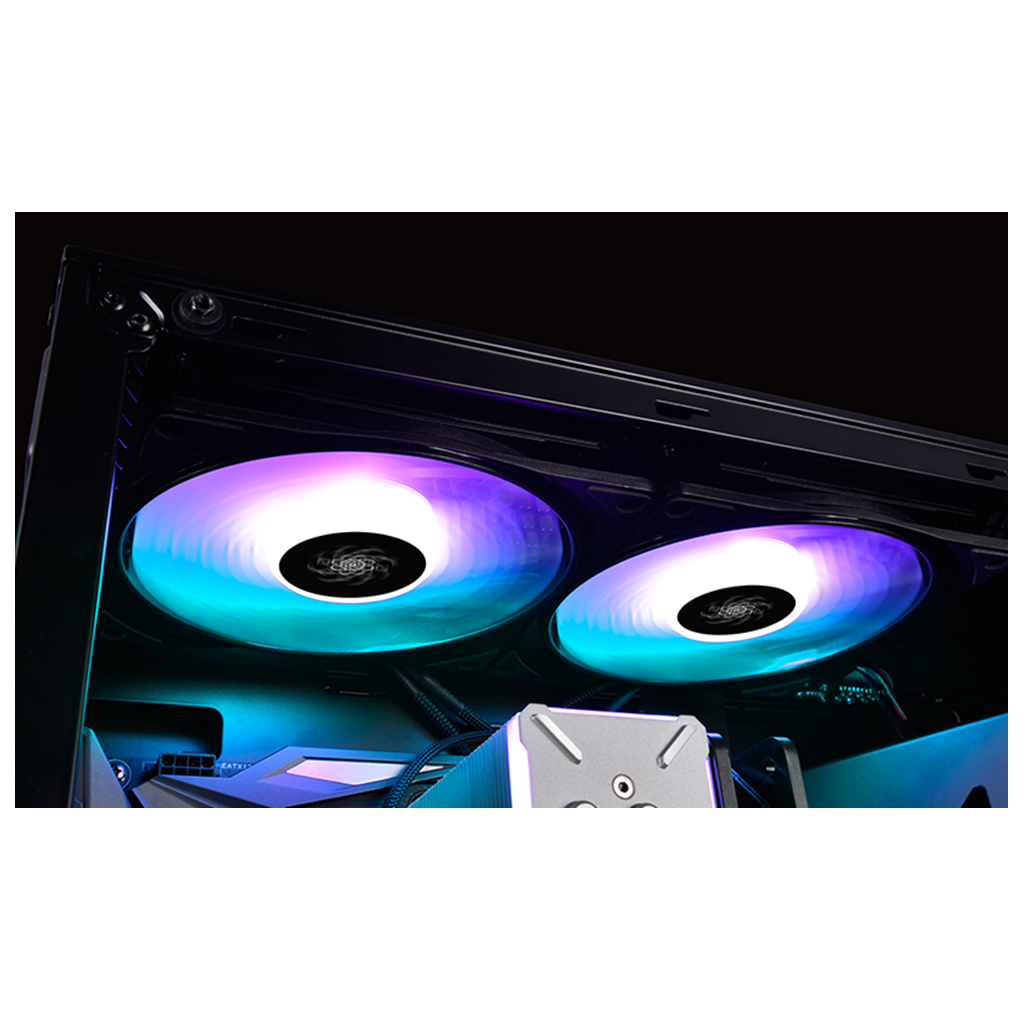

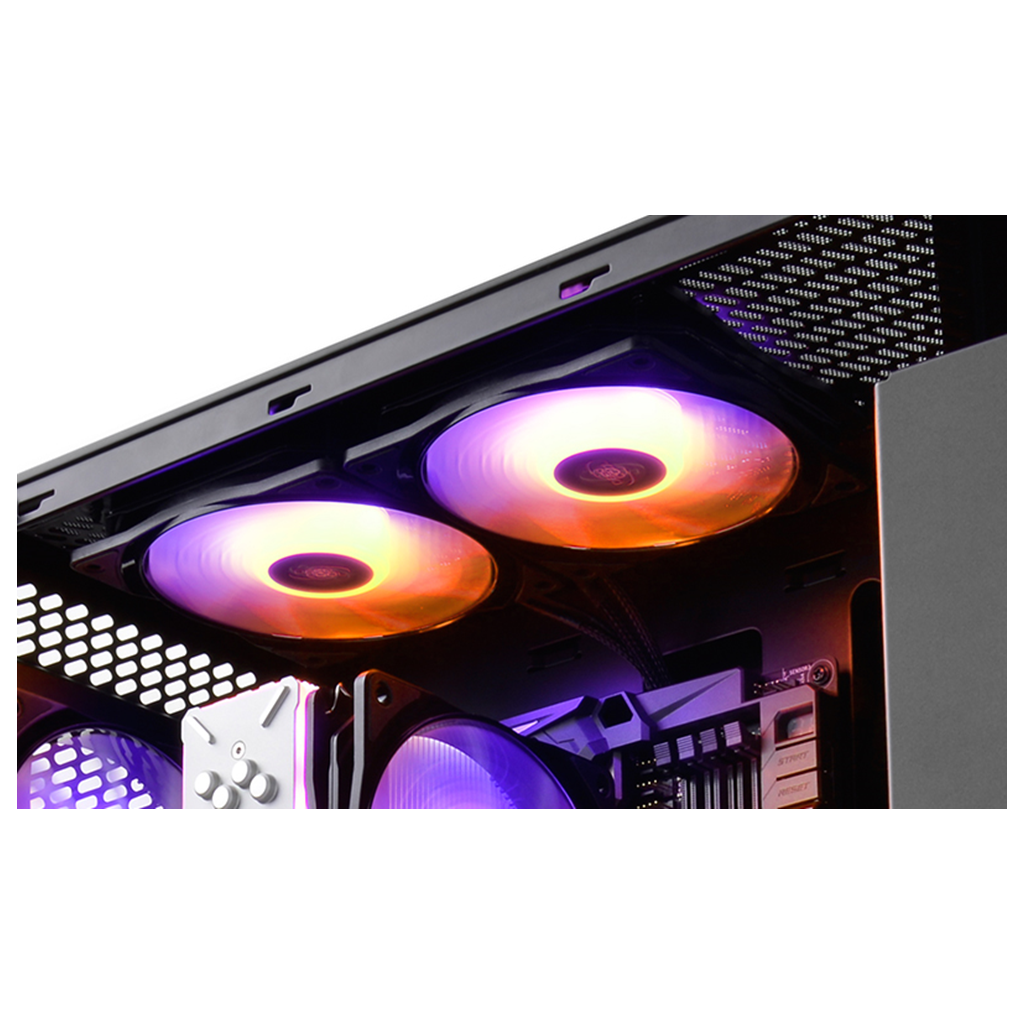

Better balance on air volume & air pressure, low noise, can be used as a case fan or CPU cooling fan

PWM Control

Super Silent

ADD-RGB LED
PWM Intelligent Control
Fan speed can be intelligently controlled by MB in accordance with temperature

Features

  • Utilize 12pcs of independently programmable RGB LEDs for amazing display effects
    *Can be easily controlled by MB through 5V A-RGB Header, no additional controller needed, and can synchronize with other A-RGB devices
  • Use the included A-RGB Controller to control multiple devices
  • Fan speed can be intelligently controlled by MB in accordance with temperature
  • Better balance on air volume & air pressure, low noise, can be used as a case fan or CPU cooling fan
    *WS2812B ADD-RGB LED is applied and the below 3pin ADD-RGB Headers are compatible for the device: 5V/D/G and 5V/D/NC/G, which is used for the mainstream M/B brands like ASUS, Gigabyte

Technical Spec

Fan Dimension 140X140X26mm
Net Weight 198g
Fan Speed 500±200 -1200±10%RPM
Fan Air Flow 64.13CFM
Fan Air Pressure 1.09mmH2O
Fan Noise Level 19.8~24dB(A)
Fan Connector 4Pin
FAN Rated Voltage 12VDC
FAN Operating Voltage 10.8～13.2VDC
FAN Starting Voltage 7VDC
FAN Rated Current 0.02±15%A-0.09±10%A
FAN Power Input 1.08W
Bearing Type Hydro Bearing
LED Type Addressable RGB LED
LED Rated Voltage 5VDC
LED Rated Current 0.48±10%A
LED Rated Power 2.4W
LED Connector 3pin（+5V-D-G）
LED Control M/B with 5V ADD-RGB Header
EAN 6933412710349
P/N DP-FA-RGB-CF140-1
