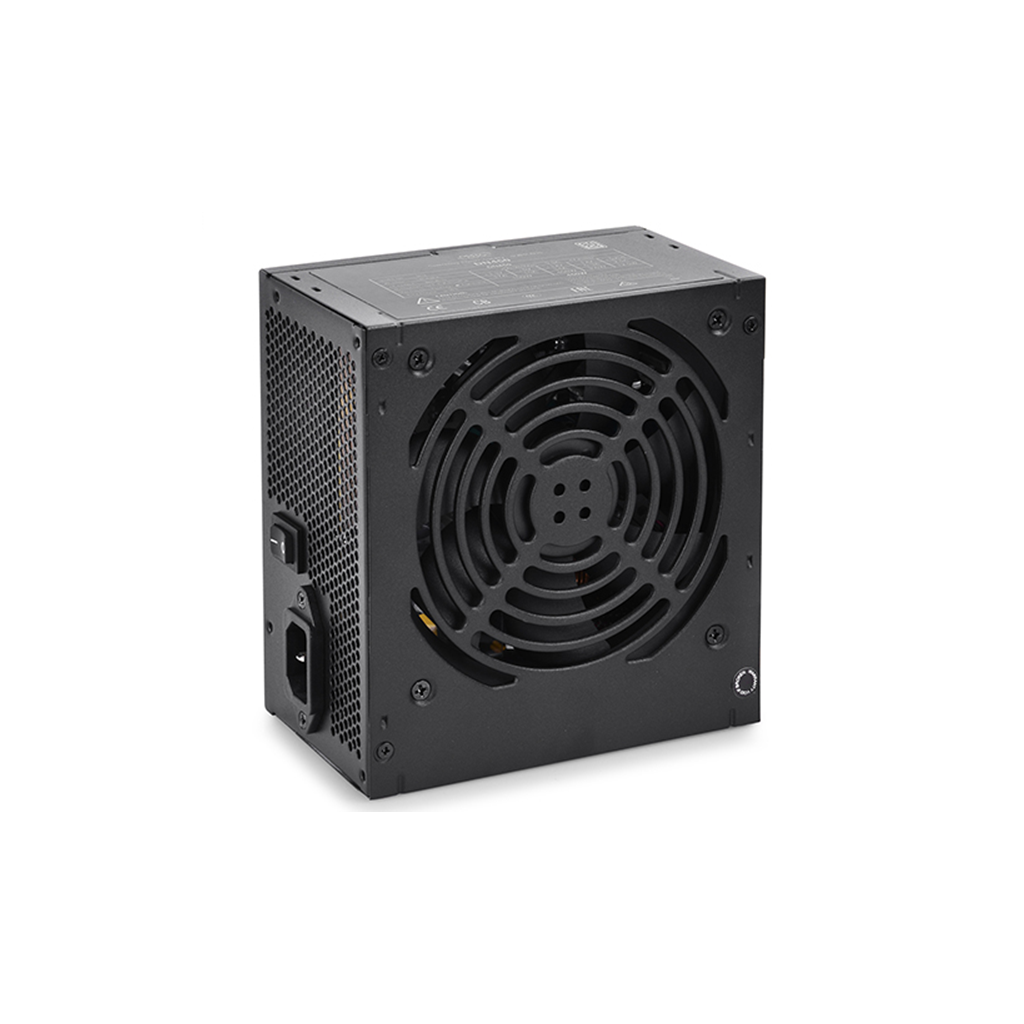

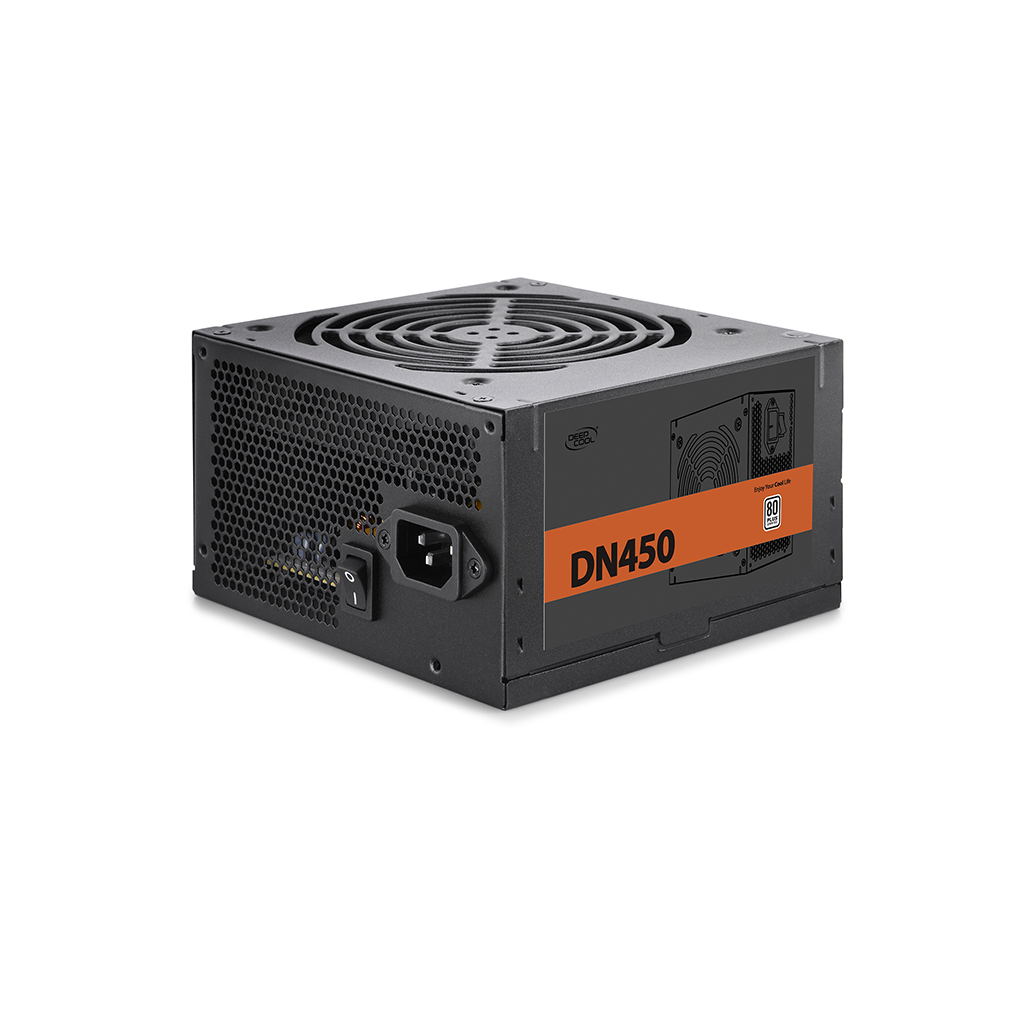

DEEPCOOL DN 450W/550W/650W
DN450, DN550, DN650 is certified to 80 PLUS® 230V EU, achieving up to 85% electrical efficiency, lowering heat generation and reducing operational costs. The PSU is designed to have < 1W power consumption under off-mode, and is therefore compliant to the Effective Radiated Power (ErP) standard. Outstanding and stable performance of this PSU makes it one of the best choices for a wide range of applications.
Online Shop in Thailand
 |
80 PLUS® 230V EU
80 PLUS® 230V EU certified provides a high energy efficiency up to 85%. Click here to view the certification.
|
 |
 |
 |
 |
Features
- Compliant Intel ATX12V v2.31
- Active PFC makes the efficiency higher
- 80 PLUS® 230V EU certified — up to 85% efficiency

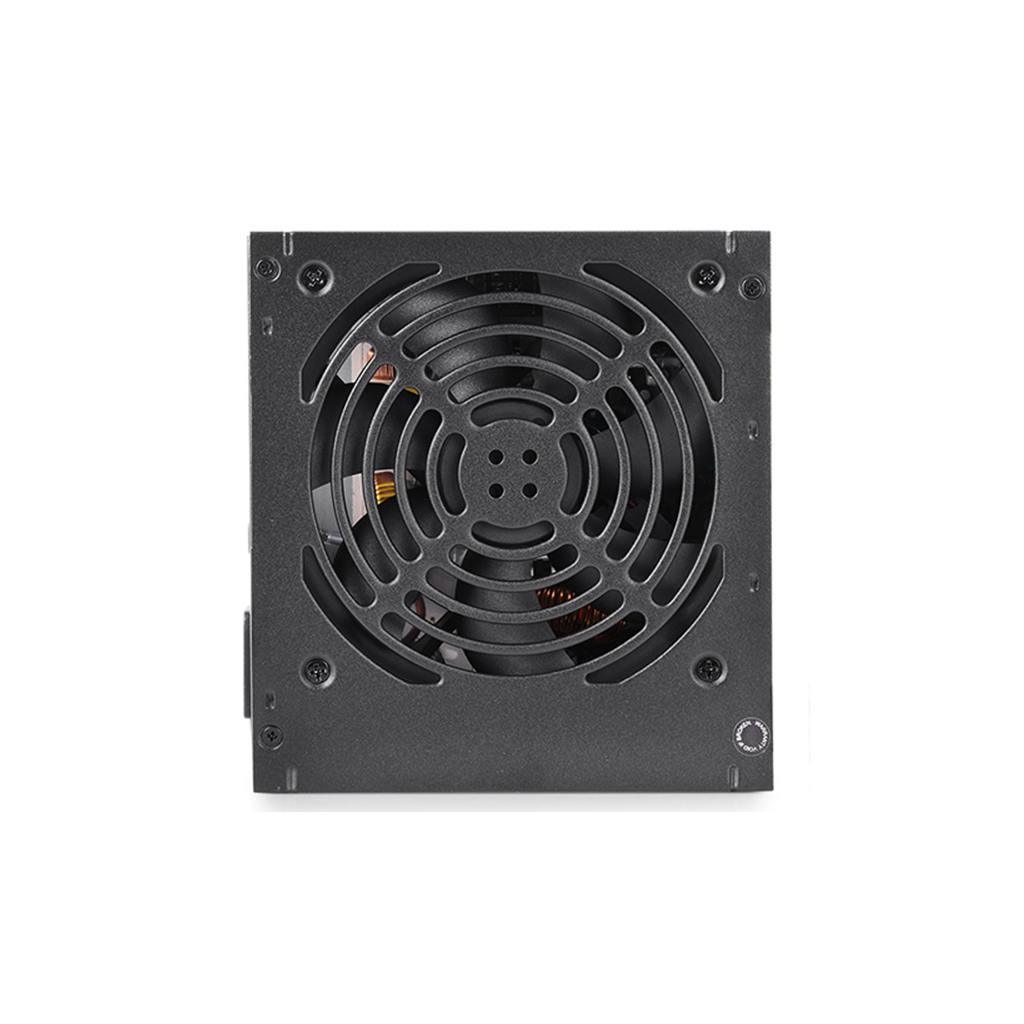

- 120mm silent fan with temperature control function
- The longer cable design supports cable management perfectly
- Double-Layer EMI Filter protects from electromagnetic interference & restrains noise
- Intelligentized eco-friendly chipset, consume < 1W in its off-mode, compliant Erp standard
- CircuitShield™ —OVP, UVP, SCP, OPP
- Supports Multi-Core CPUs
- High reliability with an MTBF of at least 100,000 hours of use

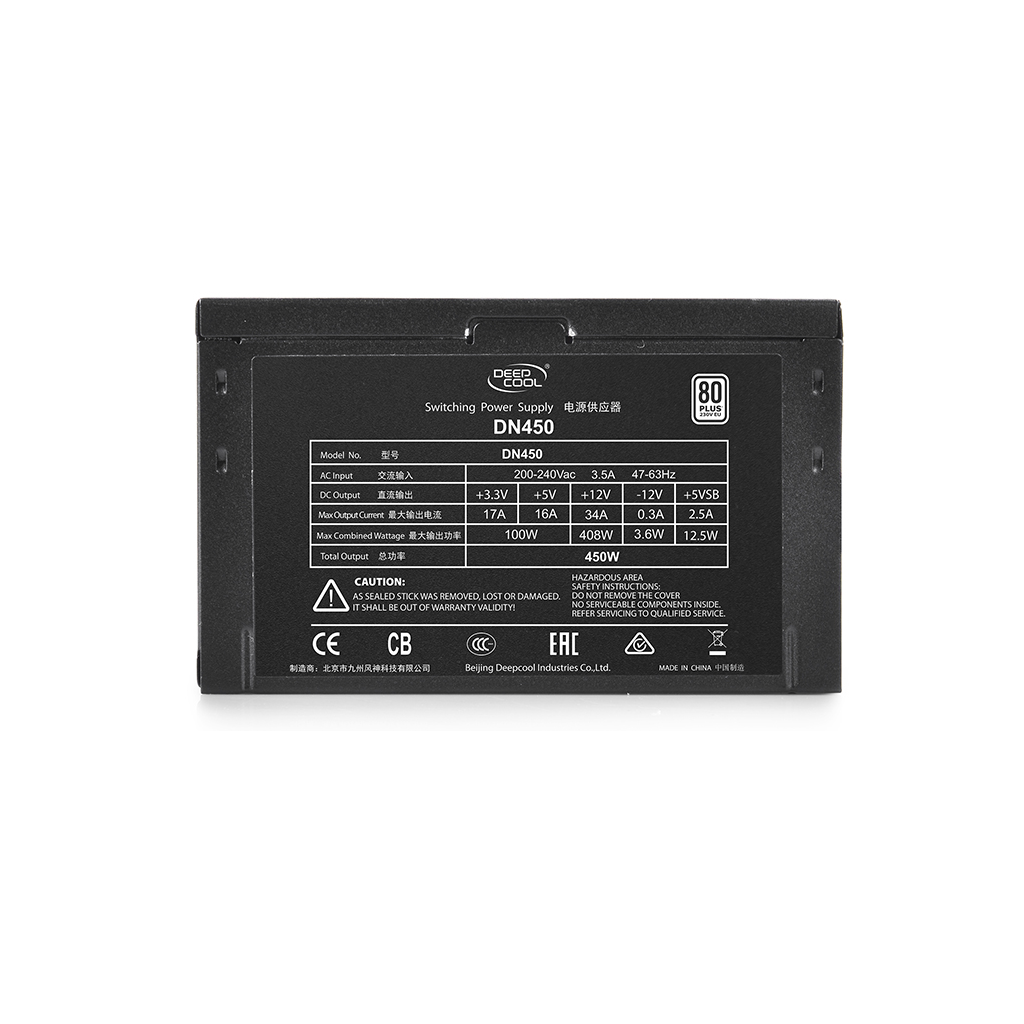

Output
| AC INPUT | VOLTAGE | CURRENT | FREQUENCY | ||
| 200-240V | 3.5A | 47-63Hz | |||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB |
| CURRENT(Max) | 17A | 16A | 34A | 0.3A | 2.5A |
| OUTPUT(Max) | 100W | 408W | 3.6W | 12.5W | |
| TOTAL OUTPUT | 450W | ||||
Technical Spec
| Model | DN450 |
| Type | ATX 12V V2.31 |
| Dimension | 450W |
| Input Voltage | 230V |
| Input Current | 3.5A |
| Input Frequency Range | 47~63Hz |
| Fan Size | 120mm |
| PFC | Active PFC (>0.99) |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms |
| Efficiency | 85% Under Typical Load |
| Protection | OVP/UVP/SCP/OPP |
| Operation Temperature | 0~40°C |
| Regulatory | CE/CB/EAC/CCC |
| MTBF | 100,000 Hours |
