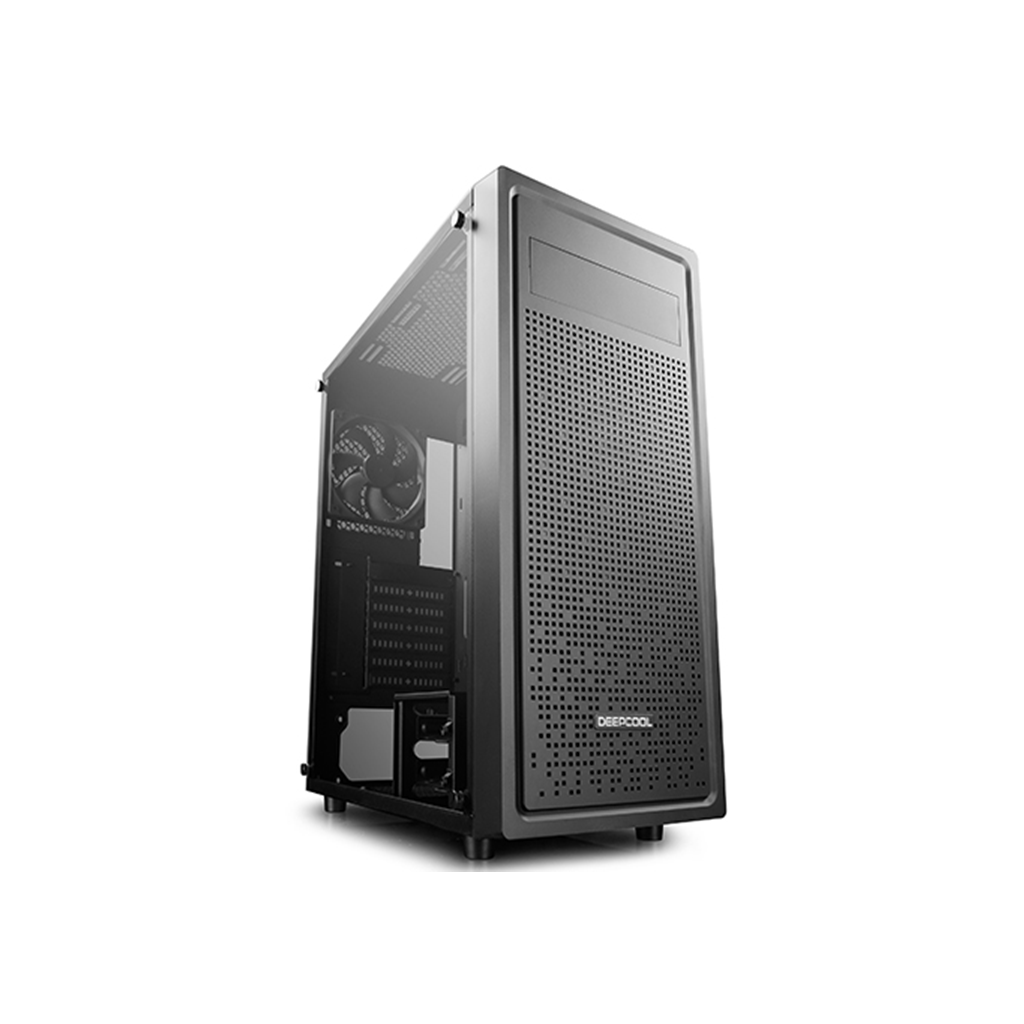

DEEPCOOL E-SHIELD
Superior Performance, Exquisite Appearance

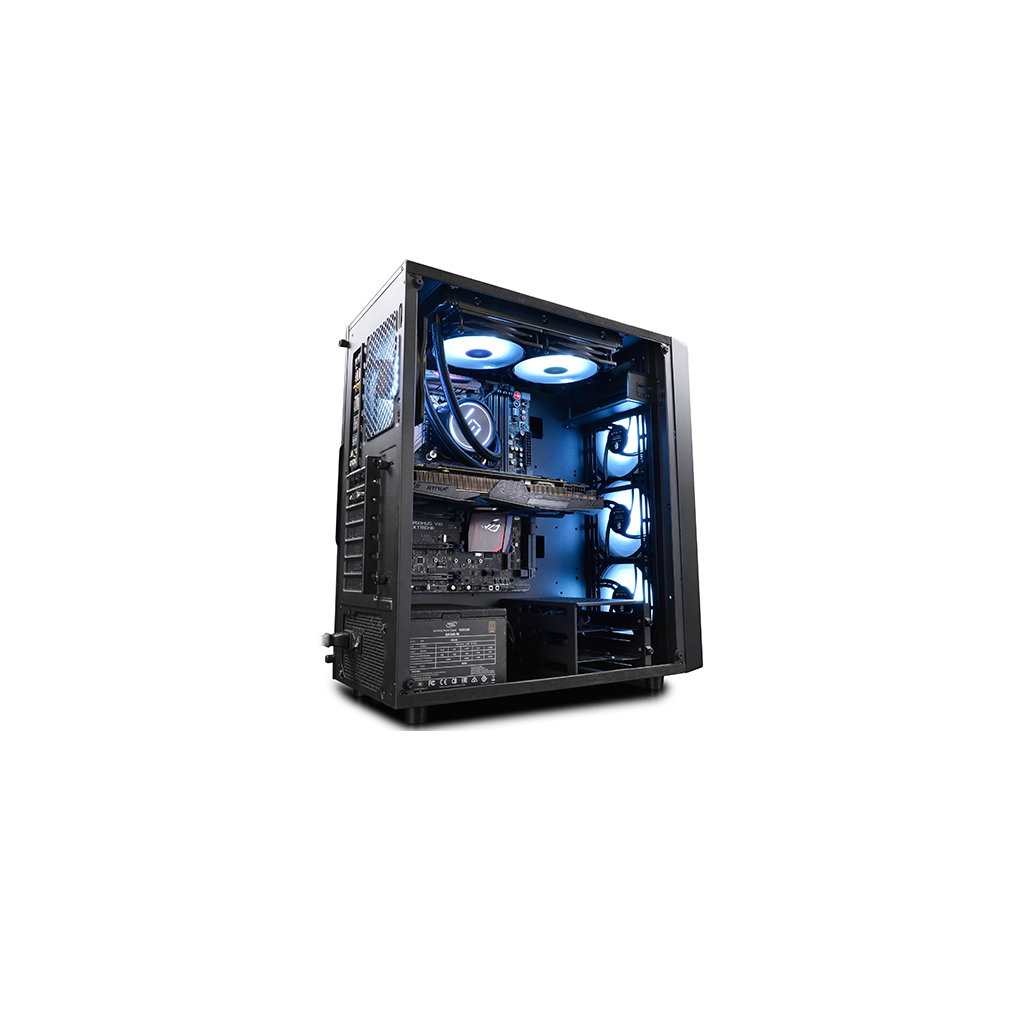

The all-new E-SHIELD comes with 4mm thick Tempered Glass side-panel, which gives the case a unique look to perfectly show off your inner structure.A Square-hole Array style front panel is used to keep sufficient intake airflow from the front, and also to keep the exterior semi-transparent for RGB devices. Cooling performance is crucial for a computer case, and E-SHIELD does a great job on this point thanks to its square-hole array style front panel.Exquisite and optimized structural design makes E-SHIELD a leading choice for PC enthusiasts who want a PC chassis with great performance.
Online Shop in Thailand

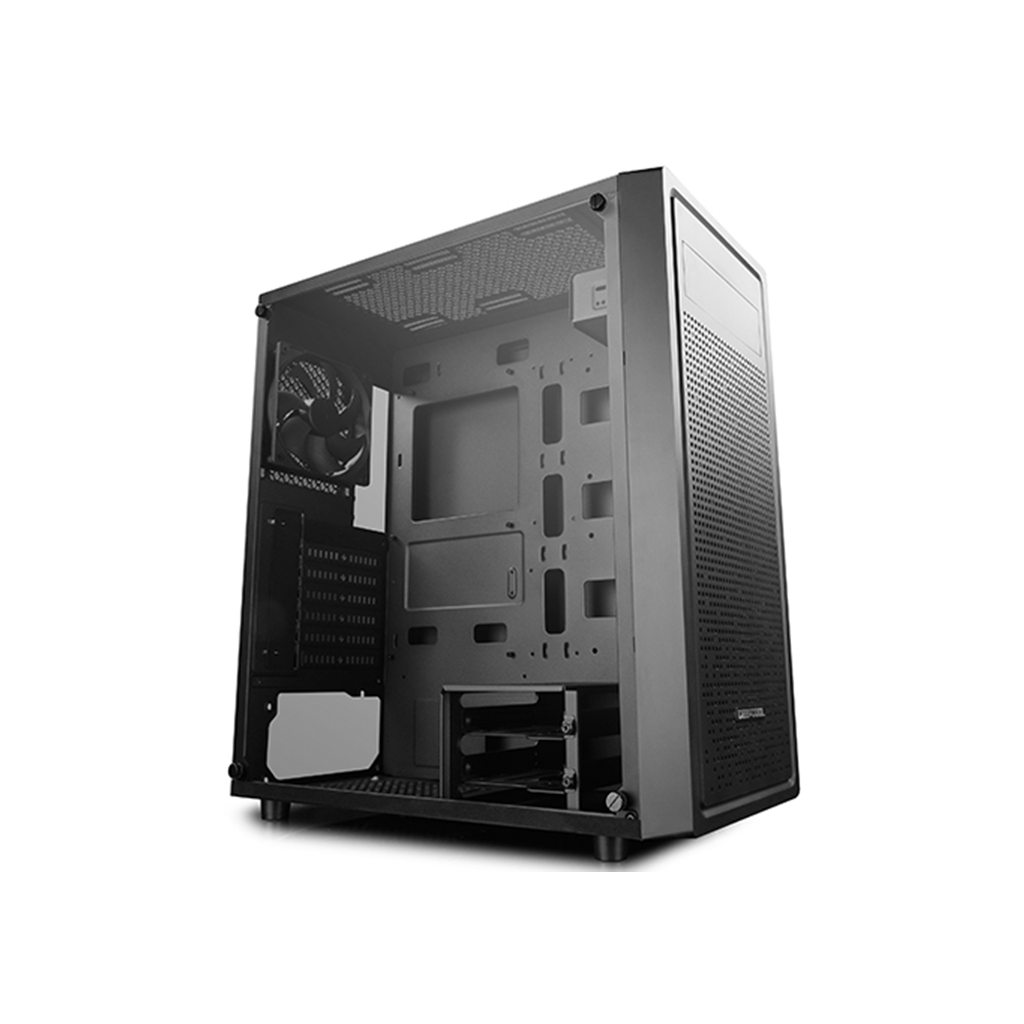

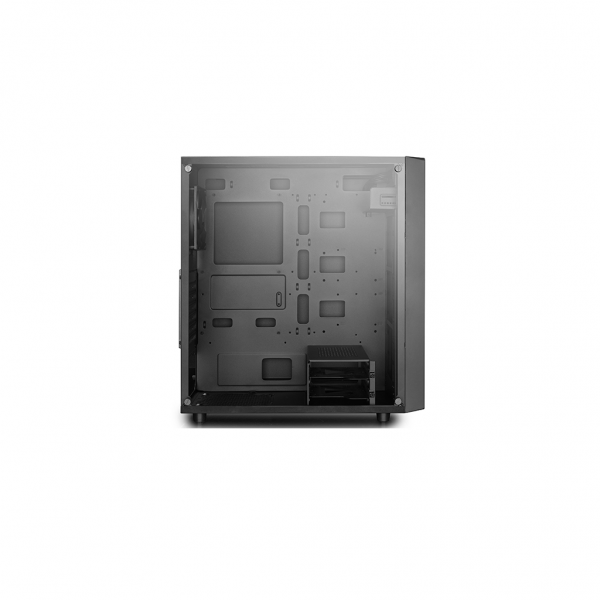

4mm Tempered Glass

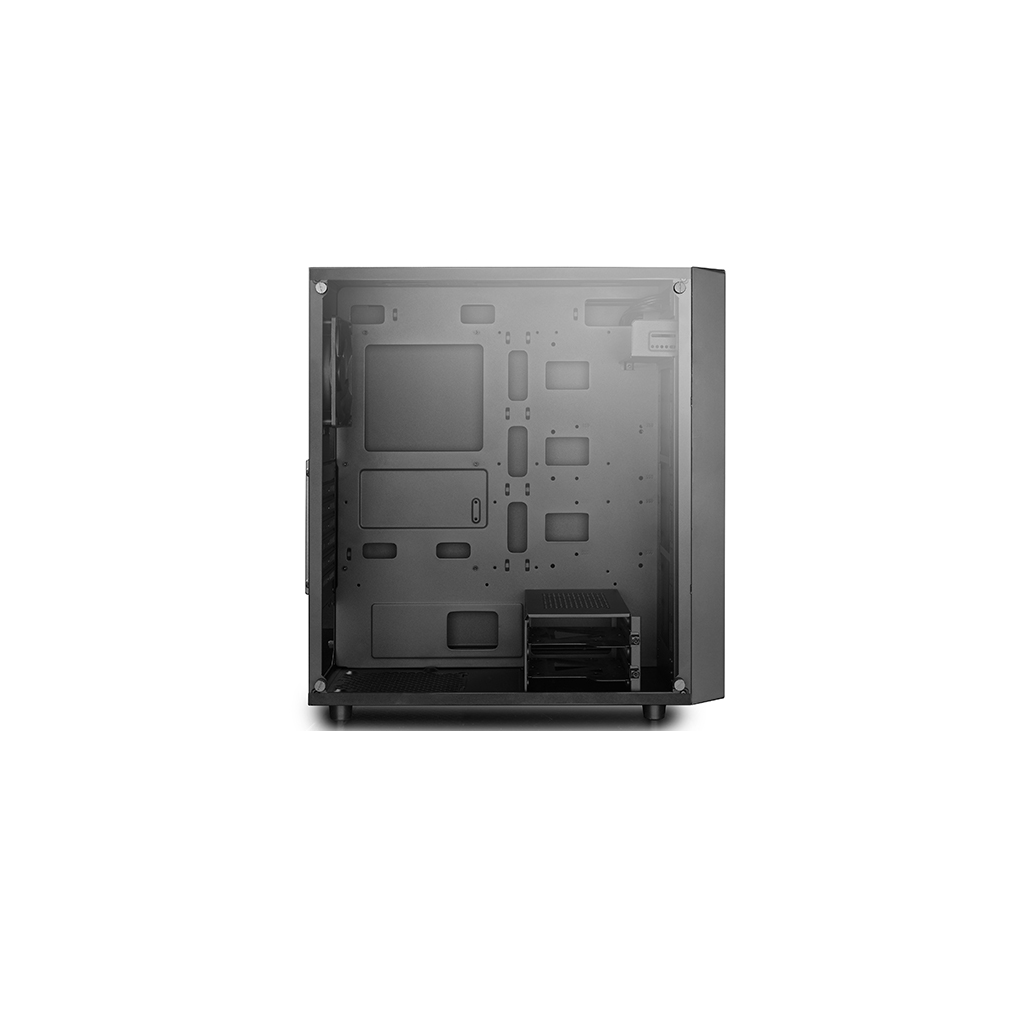

4mm thick Tempered Glass side-panel gives the case a unique look to perfectly show off your inner structure

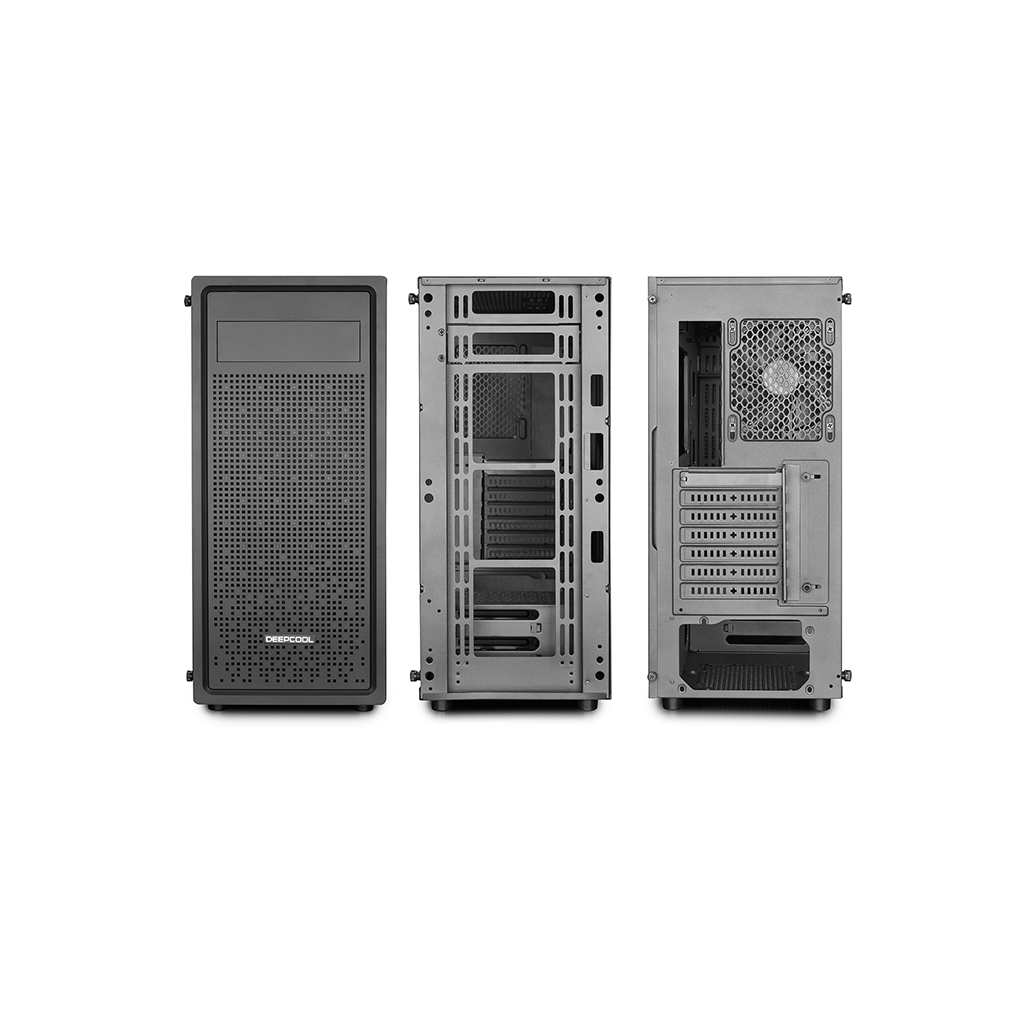

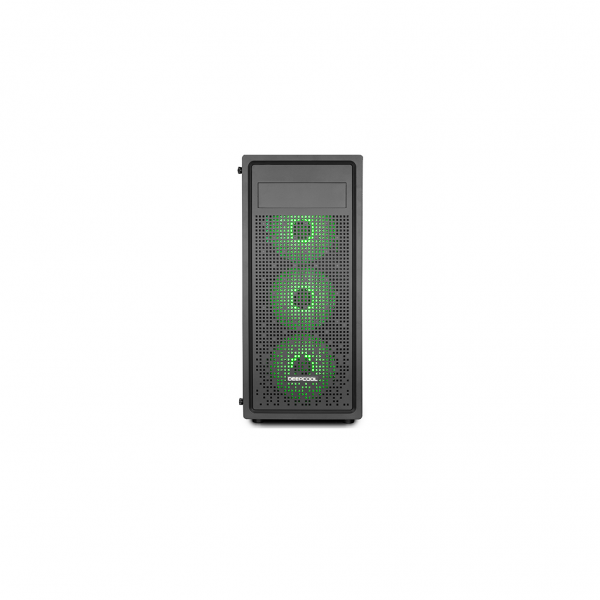

Square-hole Array style front panel

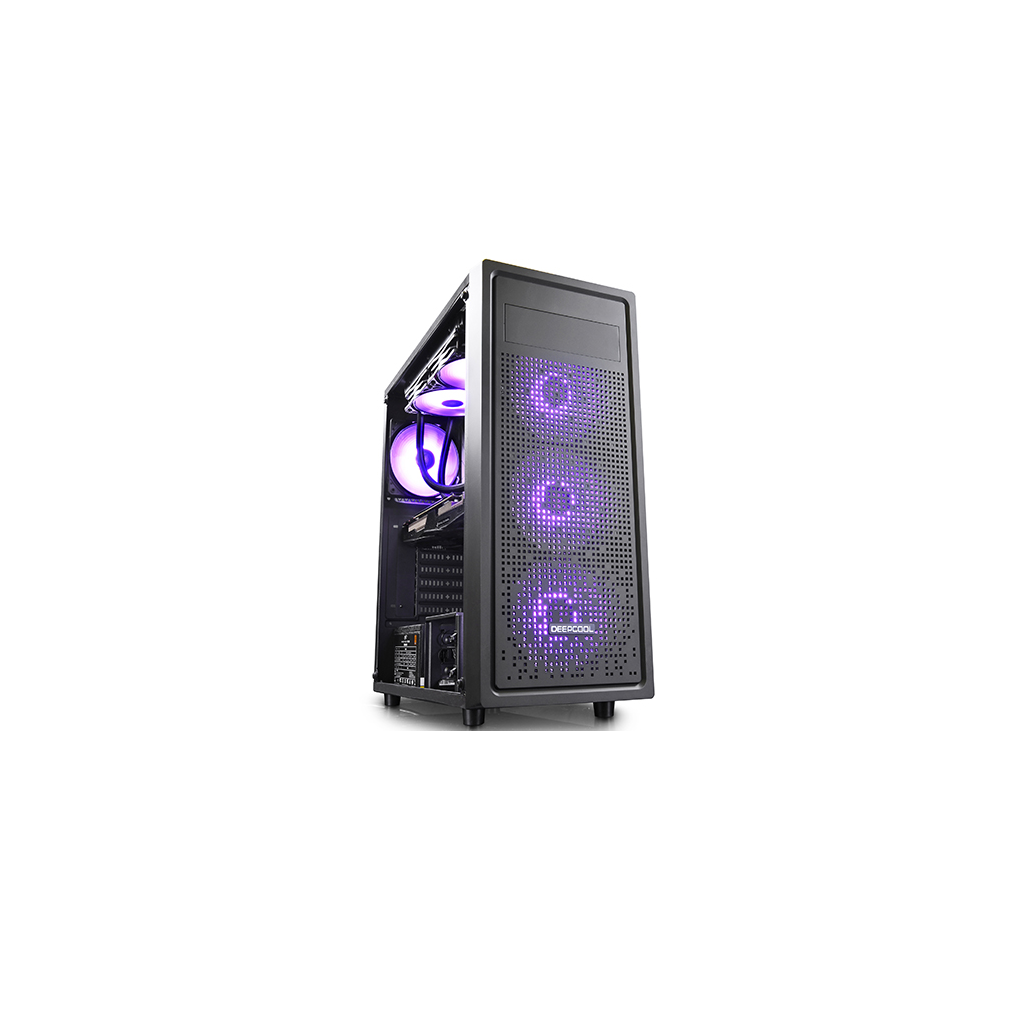

Square-hole Array style front panel used to keep sufficient intake airflow from front, and also keep semi-transparent for RGB devices
Cooling Compatibility:

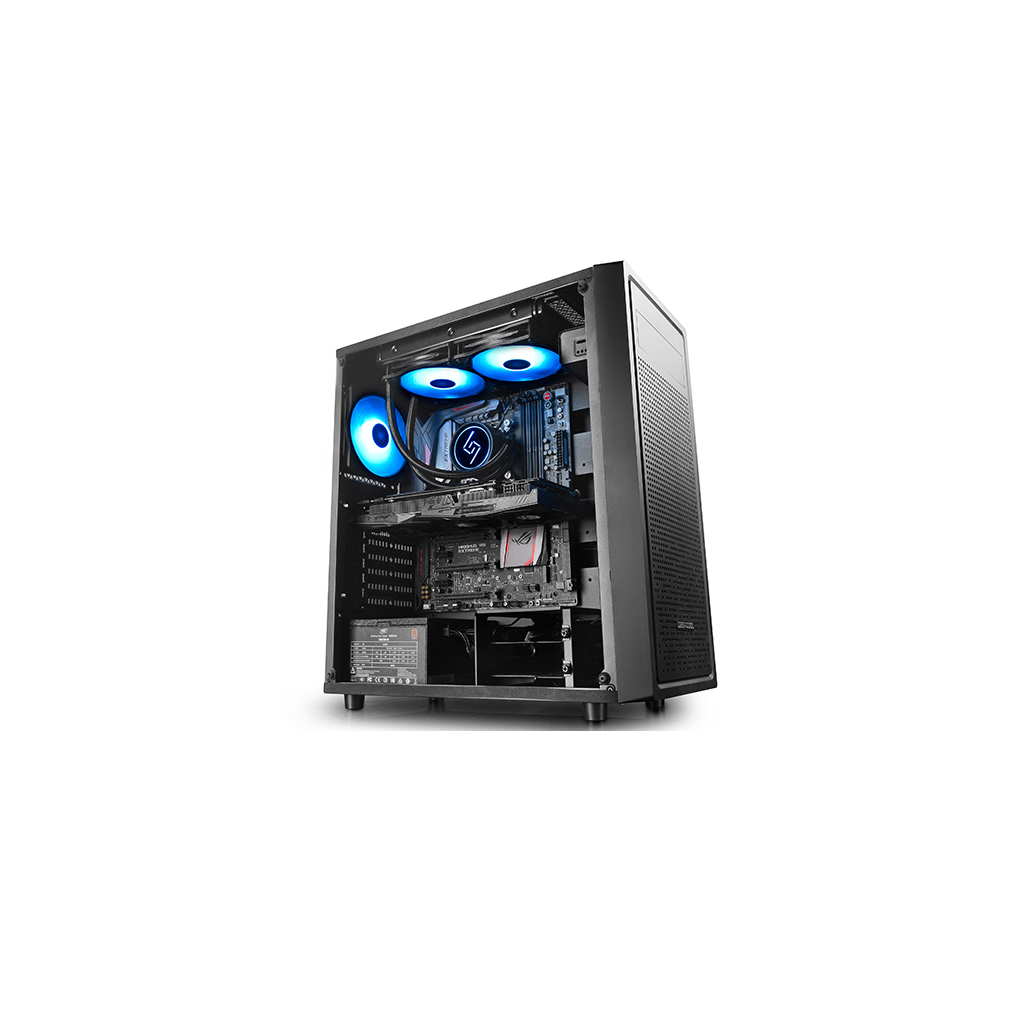

Liquid Cooler Support
- 120/140/240/280/360mm radiator liquid cooling system(360mm radiator without CD-ROM installed) ；
- 120/140/240mm radiator liquid cooling system(240mm radiator without CD-ROM installed) ；
- 120mm radiator liquid cooling system
Cooling Fan Support:

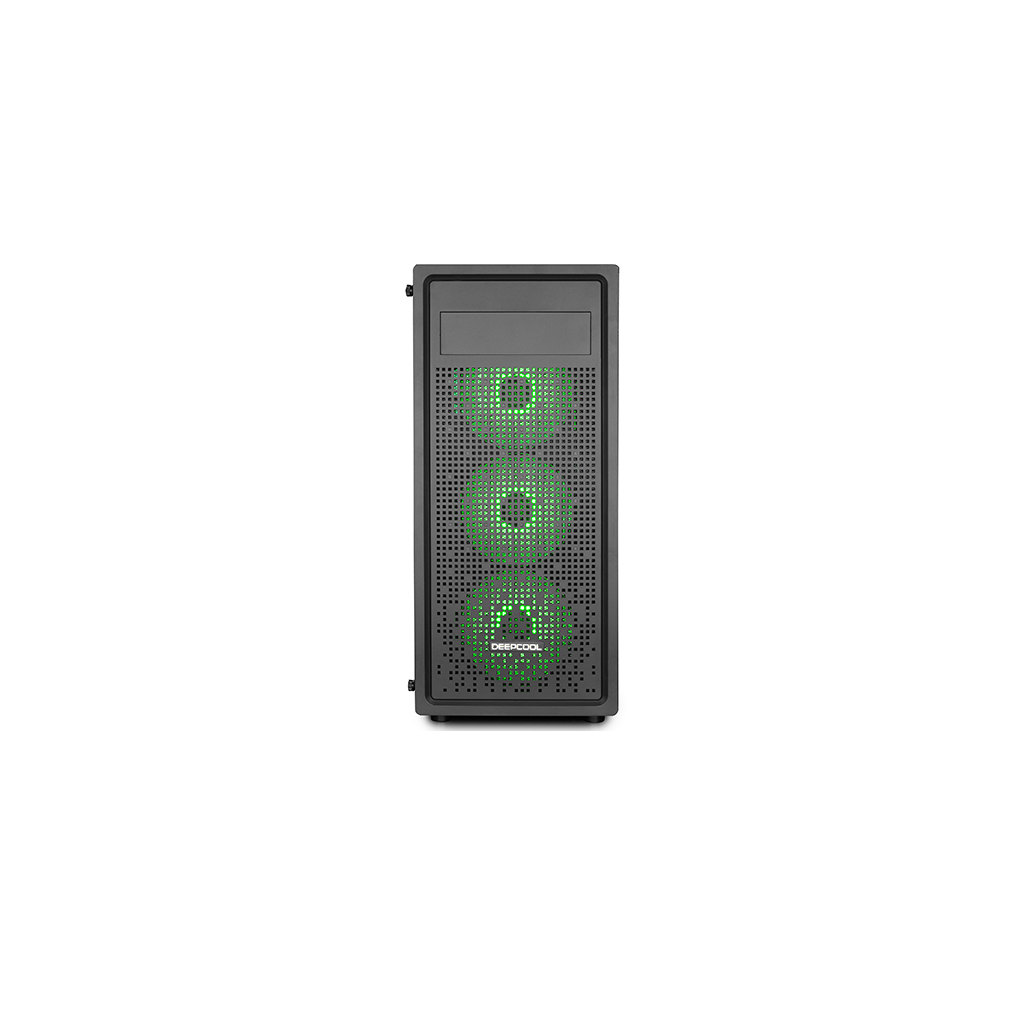

- 3×120mm or 3×140mm (without CD-ROM installed) 2×120mm or 2×140mm (with CD-ROM installed
- 2×120mm or 2×140mm
- 1×120mm
Features
- Supports up to E-ATX motherboard.
- Supports installation of 120/140/240/280/360mm radiator liquid cooling system at front (360mm radiator without CD-ROM installed).
- Supports installation of 120/140/240mm radiator liquid cooling system on top (240mm radiator without CD-ROM installed).
- Supports installation of 120mm radiator liquid cooling system at rear.
- Supports 370mm (MAX) long Graphics Card installation.

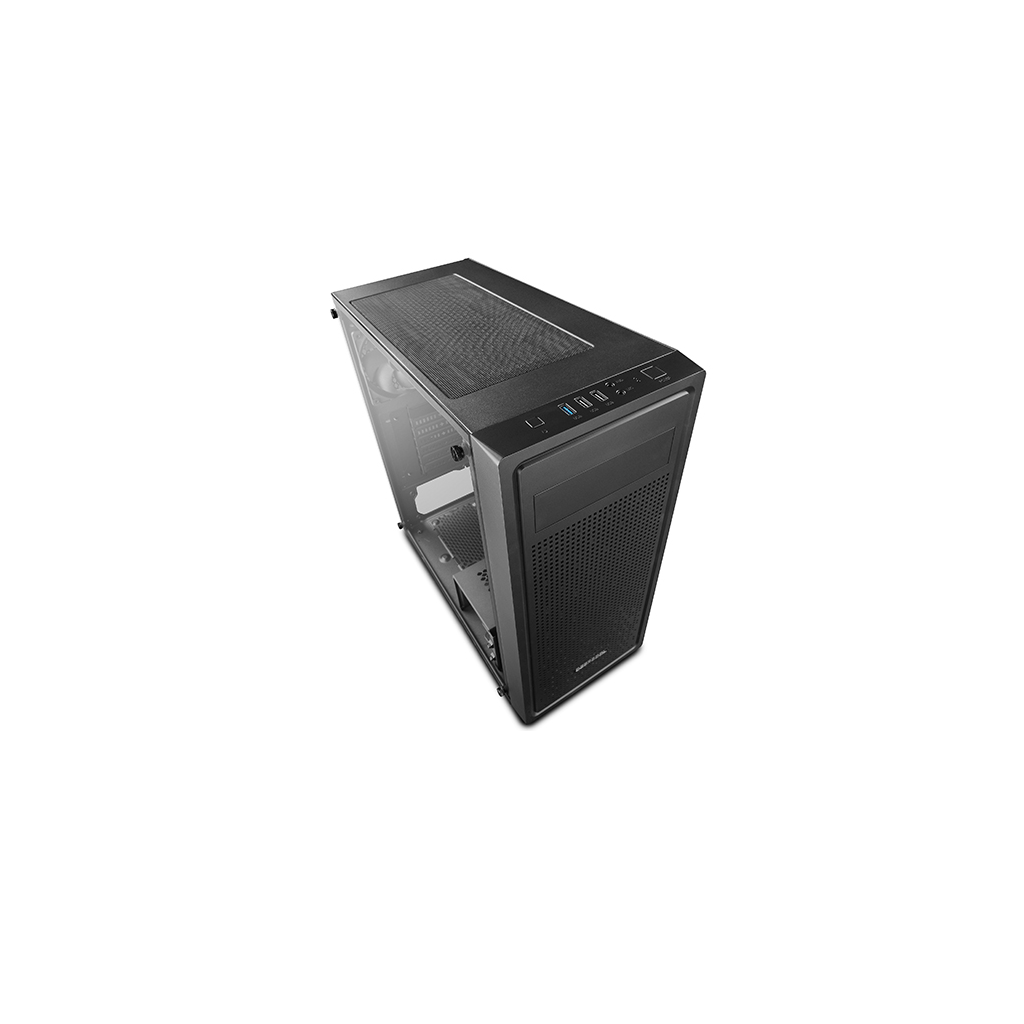

- Magnetic dust proof net on top, easy for cleaning.
- Friendly designed internal structure for easy installation.
- 4mm thick tempered glass side-panel.
- 1×USB 3.0 +2*USB 2.0 Ports.
- 25mm clearance for cable management.
Specifications
| Motherboards | E-ATX(Without CD-ROM) /ATX/Micro ATX/Mini-ITX |
| Case Type | Middle Tower |
| Materials | ABS+SPCC(Panel thickness: 0.6mm)+Tempered Glass (4mm) |
| Product Dimensions (L×W×H) | 438×210×477mm |
| Net Weight | 6.36 Kg |
| Gross Weight | 7.34 kg |
| 5.25″ Drive Bays | 1 |

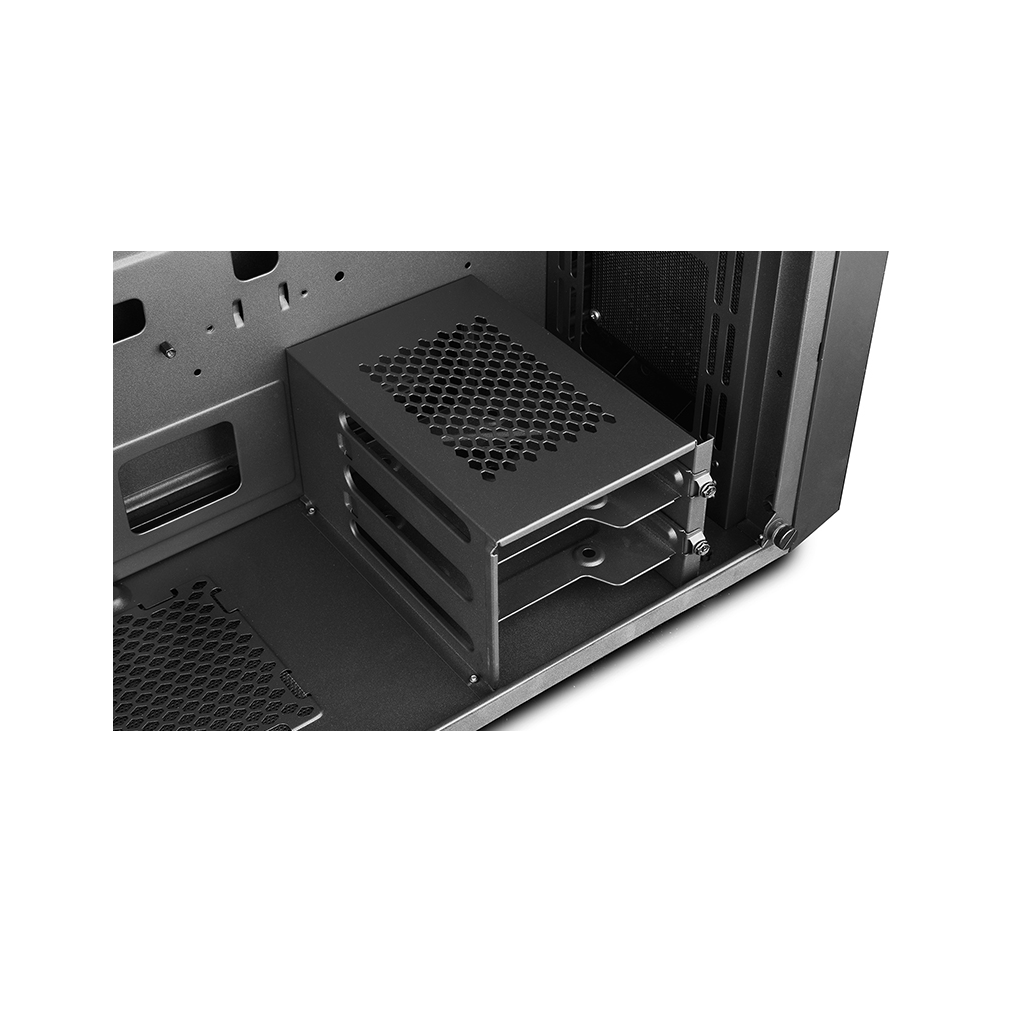

| 3.5″ Drive Bays | 2 |
| 2.5″ Drive Bays | 2+2 |
| I/O Ports | 1×USB3.0/2×USB2.0/1xAudio(HD)/1xMic |
| Expansion Slots | 7 |
| Cooling Fans Support | Pre-installed: Rear: 1×120mm fan; Optional: Front: (Without CD-ROM installed) 3×120mm or 3×140mm; (With CD-ROM installed) 2×120mm or 2×140mm, Top: 2×120/140mm |
| Cable Management | 25mm Clearance |
| Liquid Cooler Support | Front: 120/140/240/280/360mm(280/360mm without CD-ROM); Top: 120/140/240mm; Rear: 120mm |
| Power Supply Type | ATX PS2 (Length less than 170mm) |
| CPU Cooler Height Limit | 168 mm |
| VGA Length Limit | 370 mm |
| Carton Dimension (LxWxH) | 523×277×514mm |
| EAN | 6933412713647 |
| P/N | P/N:DP-ATX-E-SHIELD |
