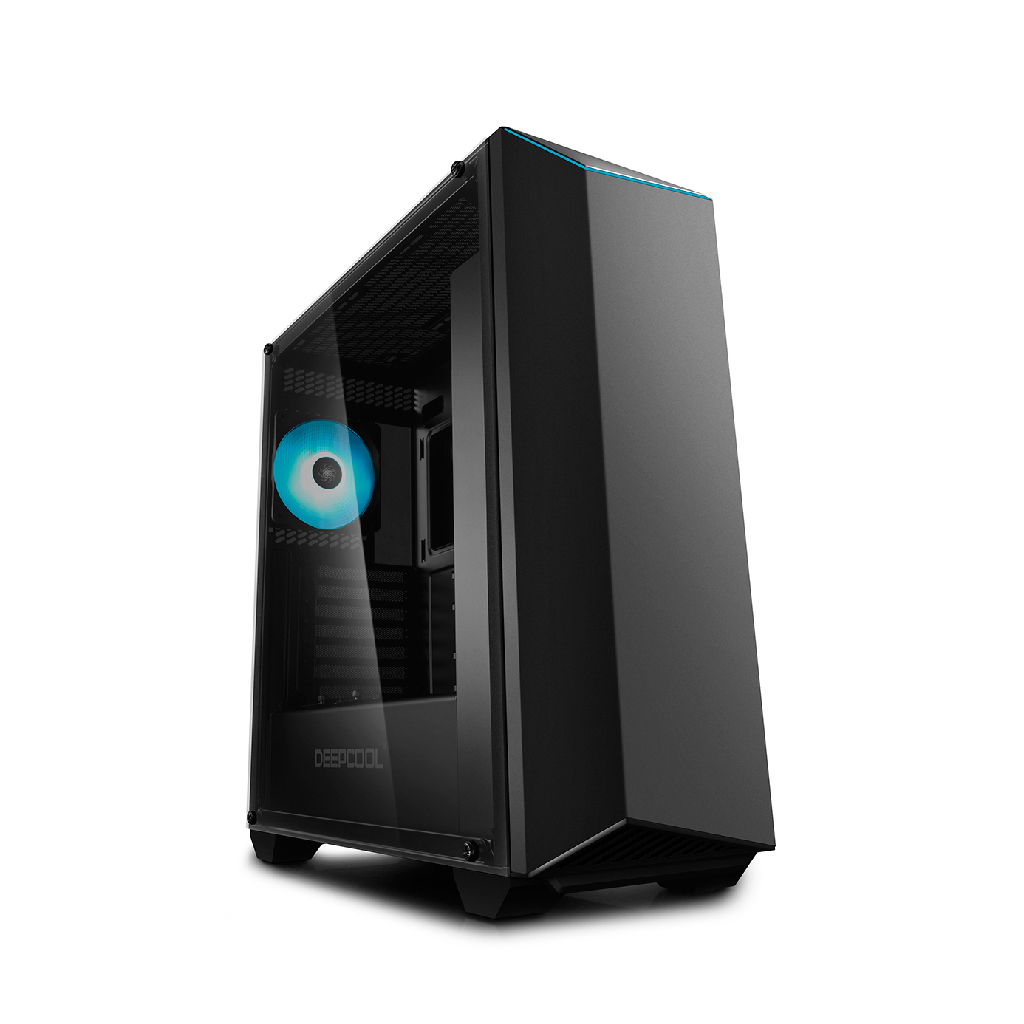

DEEPCOOL EARLKASE RGB V2
Easily Adjustable LED Lighting
EARLKASE RGB V2 includes an expandable RGB lighting,system with RGB V-Shaped strip at front, 120mm RGB Fan at rear and 2 extra RGB headers.
Online Shop in Thailand
Features
- With RGB Lighting System: Manual controller + RGB V Strip at front + RF120 RGB Fan at rear + 2 extra ports for expansion; also supports Motherboard 4Pin RGB_HEADER SYNC Control.
- 1.0mm thickness all-metal front panel.
- Full-size tempered glass side panel.
- Magnetic dustproof net at top, easy for cleaning.
- Supports installation of 120/140/240mm radiator liquid cooling system at Front .
- Lighted I/O Ports, can be found easily even in darkness.
- Movable HDD Cage, extra space available for longer PSU.
- Specially designed air-taking slot-holes to lead airflow from front to your Graphic Card.
- One 120mm RGB fan (RF120) and one 120mm black fan pre-installed at rear and front.
- Supports the installation of split-type Liquid Cooling System,mounting holes preset for the installation of water pump or tank.
Design
 |
 |
 |
 |
 |
 |
Superb Liquid-Cooling Compatibility
Compatible with AIO liquid cooling systems. Top radiator: max 280 mm. Front radiator: max 240 mm.
DIY liquid cooling system support: Pre-fabricated internal mounting holes to easily install custom liquid cooling system components.
 |
 |
 |
|
1. 1x pre-installed fan
|
2. 1 x pre-installed RGB Fan
|
3. Magnetic dust filter
|
|
4. 2x 2.5-inch drive bays
|
5. Radiator mounting area (up to 280 mm)
|
6. Radiator mounting area (up to 240 mm)
|
|
7. 7x Expansion Slots
|
8. Movable HDD cage
|
Specifications
| Motherboards | ATX/Micro ATX/Mini-ITX | |
| Materials | SPCC+PLASTIC (ABS)(Panel thickness: 0.7mm)+ Tempered Glass | |
| Product Dimensions (L×W×H) | 500*203.5*510.5MM | |
| RGB Lighting System | 1*120mm RGB Fan+ Front Panel RGB Strip + Manual Controller; 2 extra ports for RGB devices expansion; Extra cable ready for MB 4Pin RGB_HEADER Control | |
| Net Weight | 8.1 Kg | |
| Gross Weight | 9.38 kg | |
| 5.25″ Drive Bays | 0 | |
| 3.5″ Drive Bays | 2 | |
| 2.5″ Drive Bays | 4 | |
| I/O Ports | 1×USB3.0/1×USB2.0/Audio(HD)×1/Mic×1 | |
| Expansion Slots |
|
|
| Cooling Fans Support | Pre-installed: Rear: 1×120mm RGB fan; Front: 1×120mm normal black fan; Optional: Front: 3×120mm or 2×140mm; Top: 2×120mm or 2×140mm | |
| Power Supply Type | ATX PS2 | |
| CPU Cooler Compatibility | 165mm height max;Liquid Cooler Compatibility: 120/240/140/280mm radiatorat Top,120mm radiator at Rear, 120/140/240mm radiator at Front. | |
| Graphic Card Compatibility | 340mm Max | |
| Carton Dimension (LxWxH) | 560*266*560mm |
