DEEPCOOL FRYZEN (TR4)

DEEPCOOL FRYZEN (TR4)

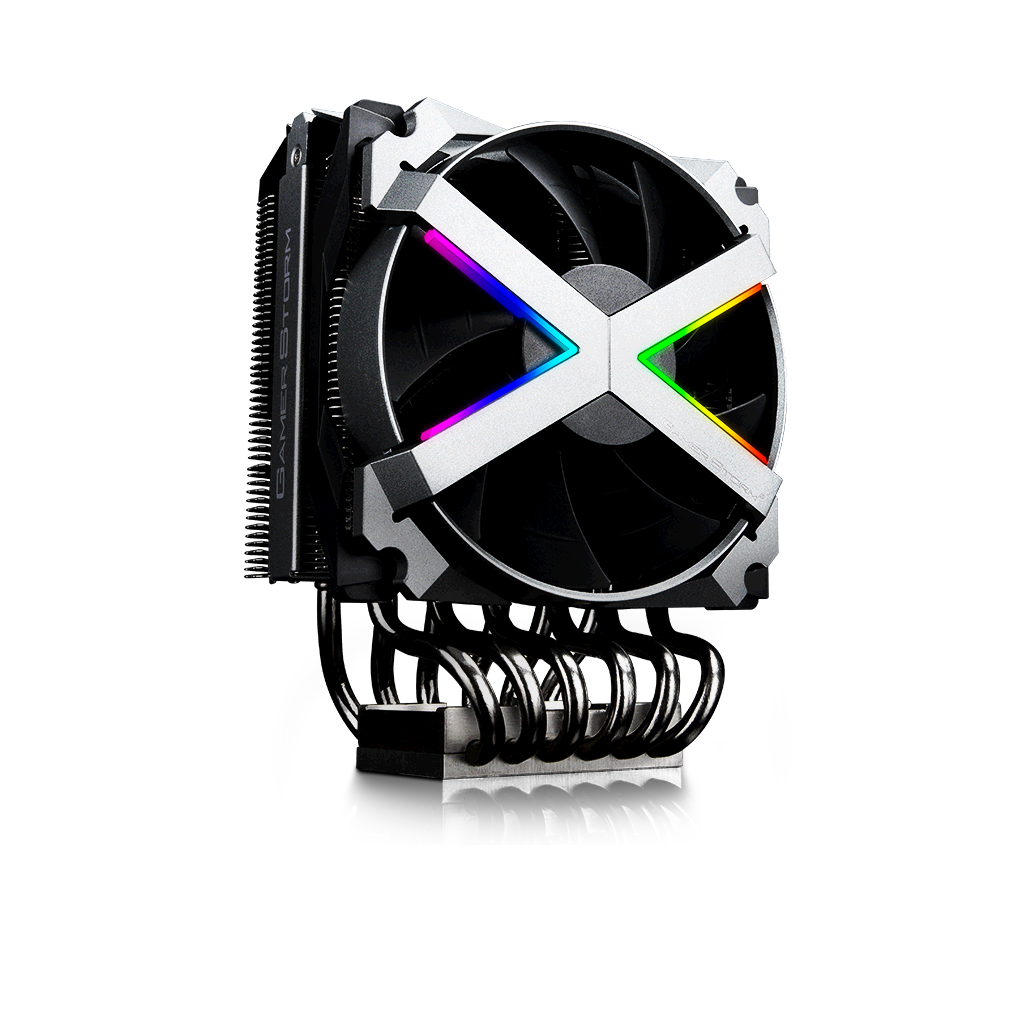

Fryzen is the award-winning cooler from Deepcool, specially designed for the AMD Ryzen™ Threadripper™ series processor, and supports the TR4/AM4 and mainstream AMD socket types. It features an ultra large copper base and a parallel arrangement of 6 boot-shaped heatpipes for extreme heat dissipation performance. The all-aluminum housing with inverse double-bladed fans offers twice the air pressure for twice the performance. A built-in 16.7M true color RGB lighting system provides variable lighting for a stunning personalized gaming rig

Online Shop in Thailand

TR4 IS READY

Specifically made for the Ryzen™
Threadripper™ series processor

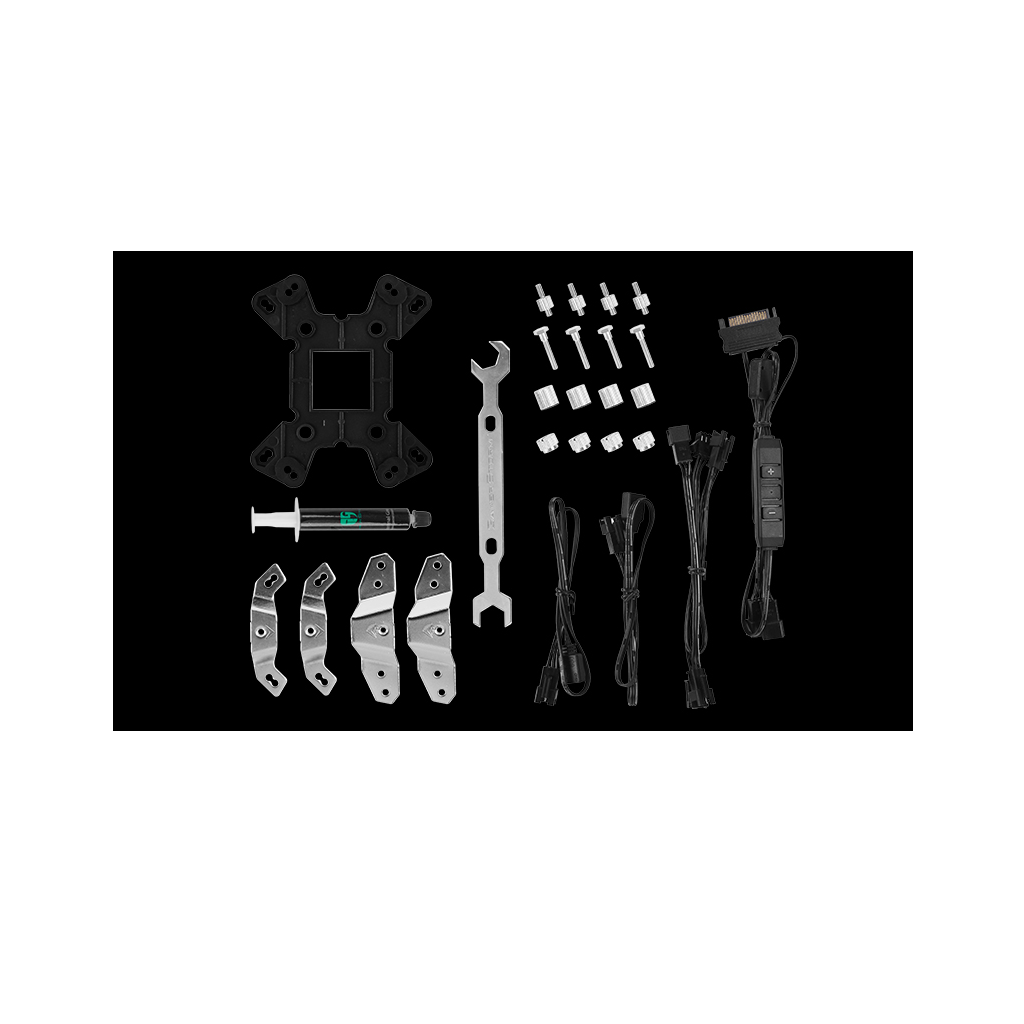

Features a quick and user-friendly mounting system for TR4/AM4 and mainstream AMD sockets

100% FULL CONTACT
Has 100% coverage for AMD Ryzen™ Threadripper™ processors
Ultra large copper base ensures extreme heat dissipation performance
FLOWING RGB LIGHTING SYNC
Built-in 16.7M true color RGB flowing light series with 5 effects (dynamic color, static, breathing, comet and fashion collision) for the top cover and fans provide up to 36 different modes and easily controlled with a wired controller (included) or motherboards with synchronized lighting control via an addressable RGB function

16.7 Million Colors – Wire control – MB Support

NON-INTERFERENCE COOLER

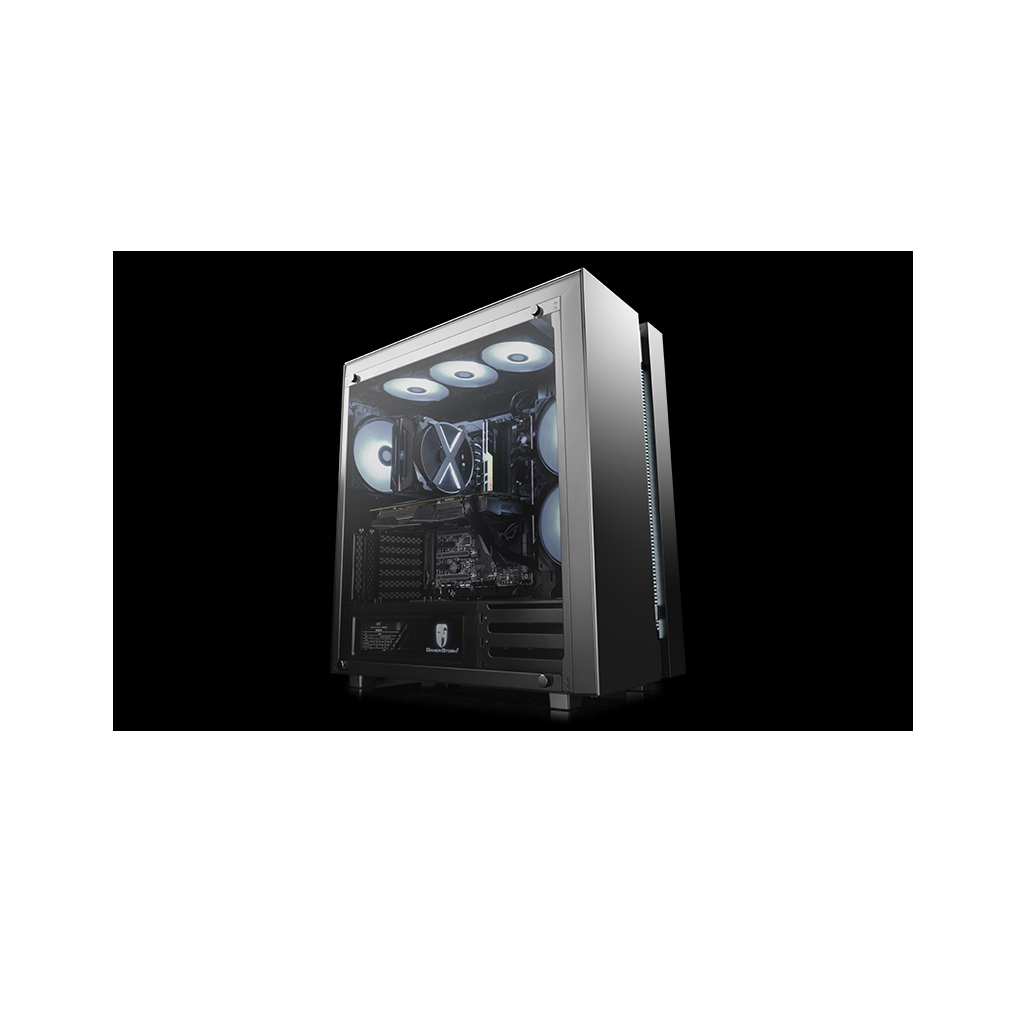

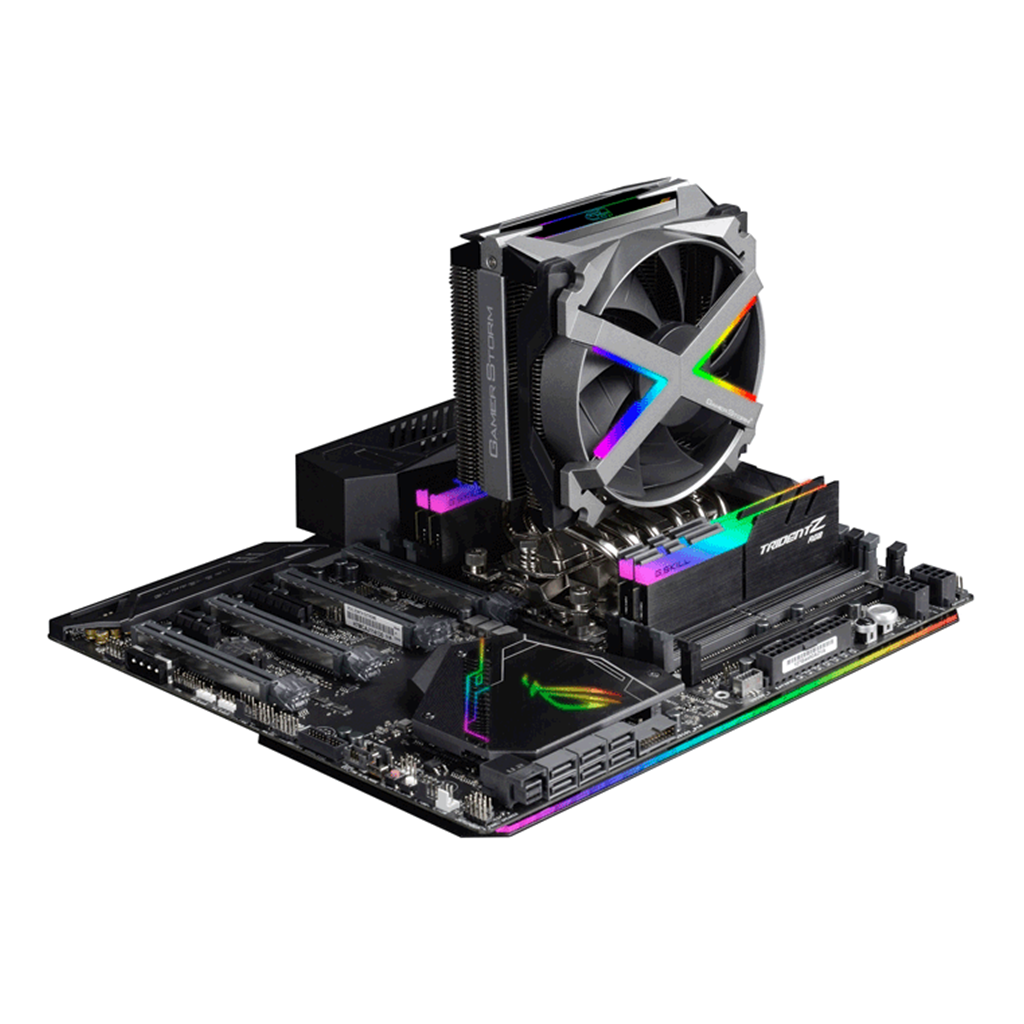

Has zero interference for various high memory rigs and display options

Features

  • Parallel arrangement of 6 boot-shaped heatpipes provides faster heat dissipation.
  • Premium all-aluminum fan frame add a quality finish with the high grade texture of the finest materials.
  • Exclusive metal fan frame with inverse double-bladed fans, offers twice the air pressure for twice the performance.
  • The 16.7 M true color RGB flowing light system with 5 in-built effects (dynamic, static, breathing, comet, and fashion collision) has 36 interchangeable lighting modes.
  • Supports AMD TR4/AM4 and mainstream AMD Socket quick installation.
  • Addressable RGB function with sync-control for motherboard lighting is supported

Application For

AMD 250W

TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1

Ryzen
APU A12/A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Athlon II X4/X3/X2
Athlon X4

Technical Spec

Overall Dimension 124×81.5×164.6 mm
Heatsink Dimension 120X79X155 mm
Fan Dimension 120×120×25 mm
Net Weight 1187g
Rated Voltage 12VDC
Operating Voltage 10.8~13.2VDC
Starting Voltage 7VDC
Rated Current 0.19A
Power Input 2.28W
FAN Speed 500±150-1800±10%RPM
MAX.Air Flow 64CFM
Noise level 17.8~41.5dB(A)
LED Type Addressable RGB LED
LED Rated Voltage 5VDC
LED Rated Current 1.03A
LED Rated Power 5.15W
LED Connector 3-pin(+5V-D-G)
LED Control M/B with 5V ADD-RGB Header
Bearing Type Hydro Bearing
EAN 6933412726449
P/N DP-GS-MCH6N-FZN-A

Product Dimension
