DEEPCOOL GAMMAXX 300

DEEPCOOL GAMMAXX 300

GAMMAXX 300 comes with a turbine fan and can be further mounted with a second fan. This is one of the most highly recommended mainstream CPU thermal solution. GAMMAXX 300 comes with the Core Touch Technology (CTT), enabling rapid heat dissipation, and making it the ideal multipurpose option for gamers and general users.

Online Shop in Thailand

Effective Cooling Performance

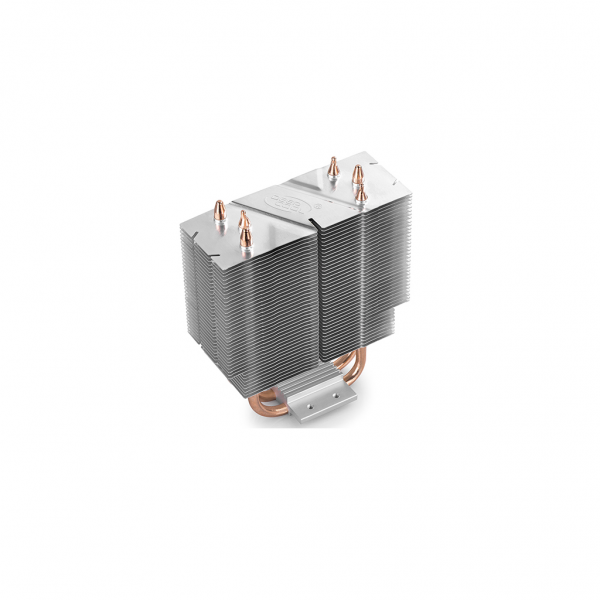

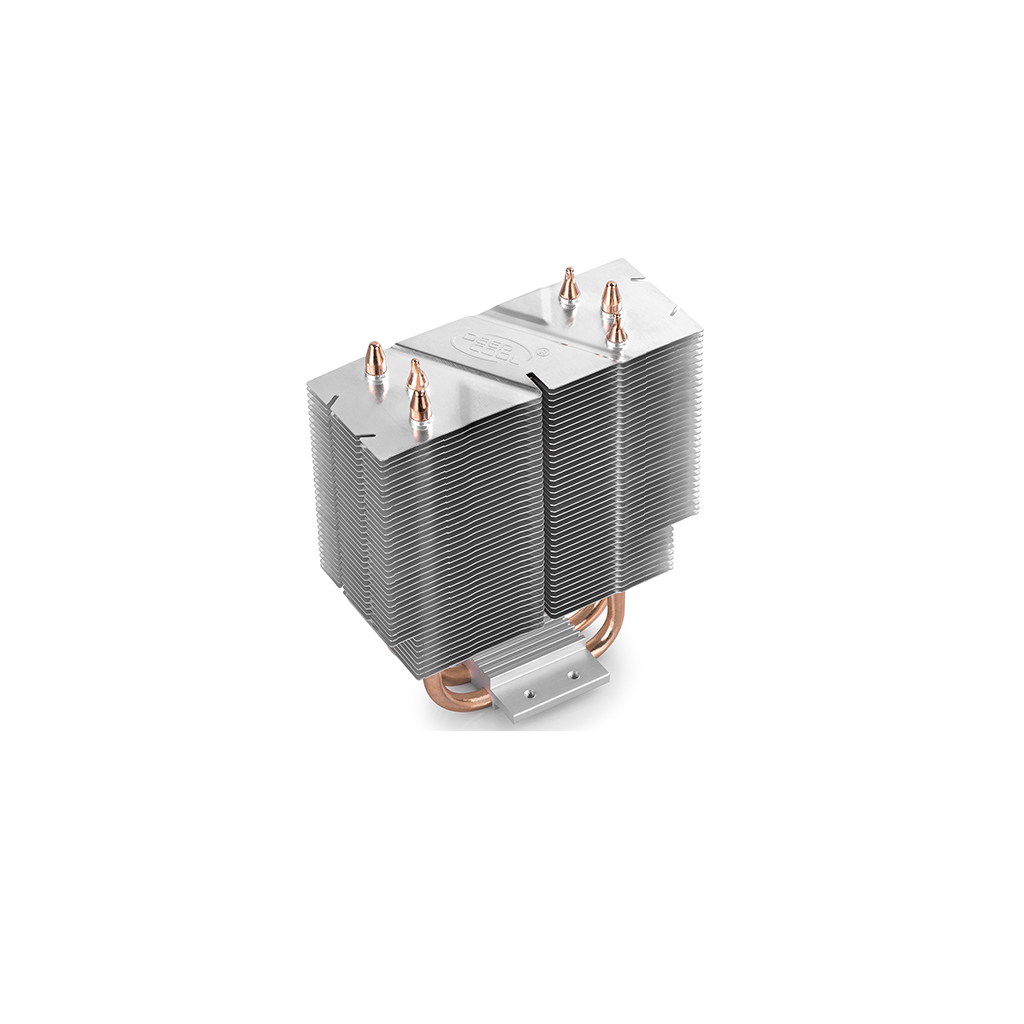

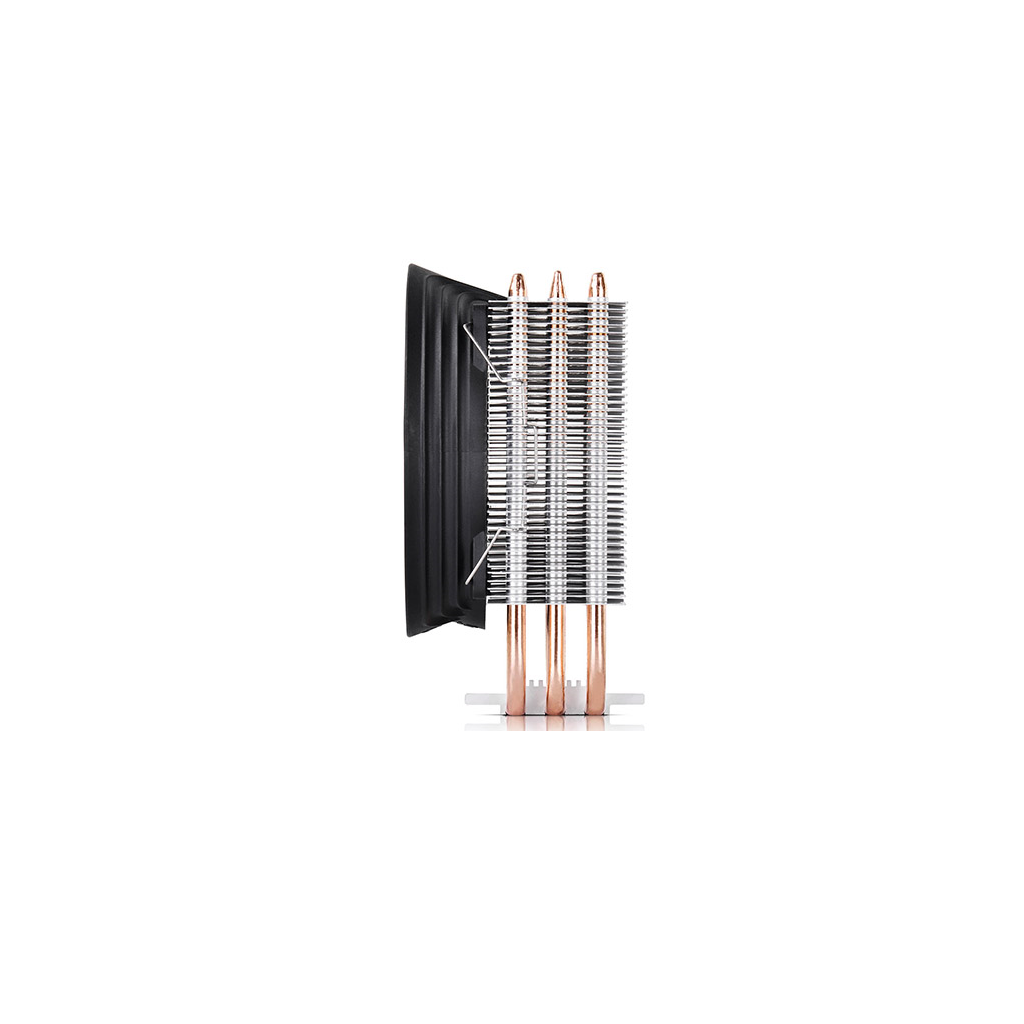

3 sintered metal powder heatpipes directly contacting the CPU surface for removing heat and eliminating chances of overheating.
Ф120 x 25 mm PWM-capable Fan
Ф120 x 25 mm PWM-capable fan offers perfectly balances powerful airflow and reduced noise.
Universal Socket Compatibility

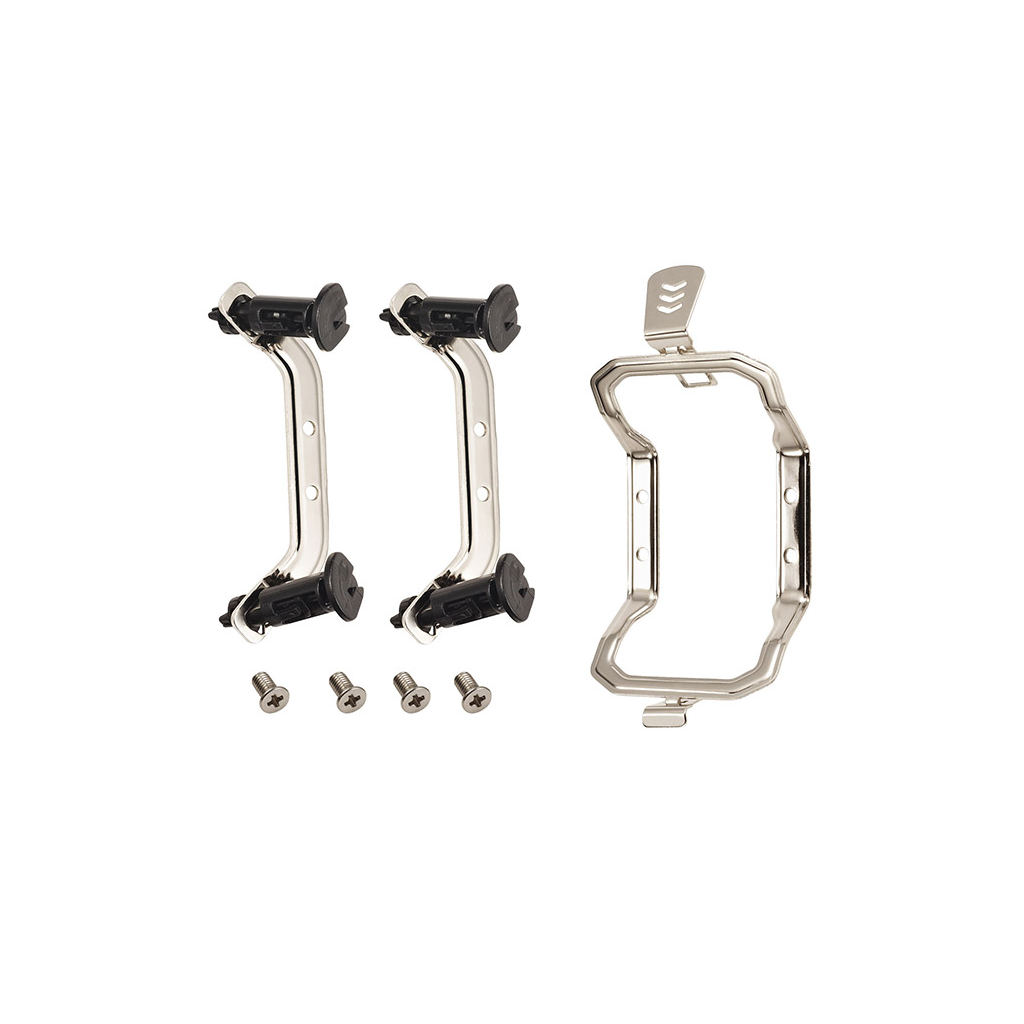

Equipped with multiple clips to support Intel LGA1366/115X/775 and AMD AM4/FM2/FM1/AM3+/AM3/AM2+/AM2/K8.
Easy Installation

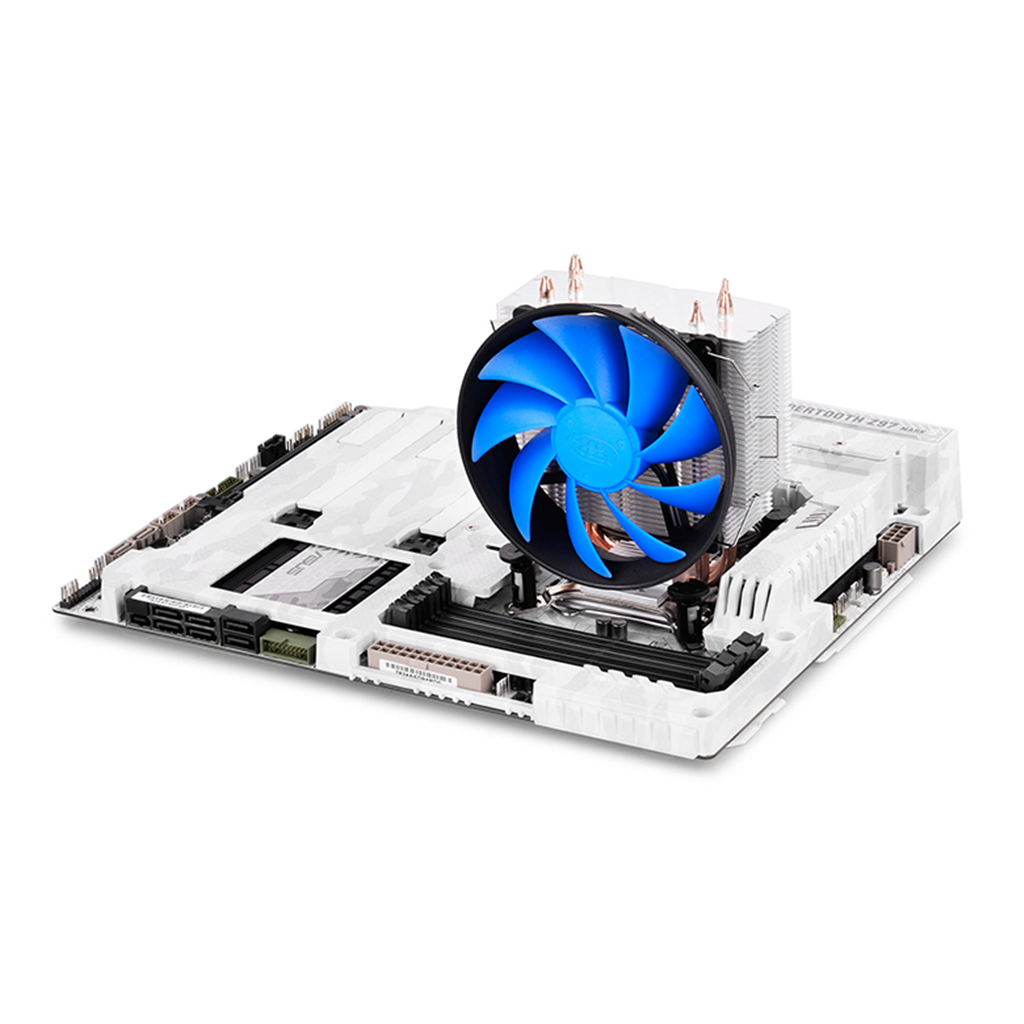

Can be easily installed without moving the motherboard.

Features

  • AMD AM4 Ready. (NOTE: Refer to FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 for the manuals)
  • Equipped with multiple clips to support Intel LGA1366/115X/775 and AMD AM4/FM2/FM1/AM3+/AM3/AM2+/AM2/K8.
  • 3 sintered metal powder heatpipes directly contacting the CPU surface for removing heat and eliminating chances of overheating.
    Ф120 x 25 mm PWM-capable fan offers perfectly balances powerful airflow and reduced noise.
  • Can be easily installed without moving the motherboard.
  • Excellent cooling performance up to 130 W.
    * Optional: Socket LGA2011.



Application For

Intel Socket 130W

AMD Socket 125W

LGA1366/LGA115X/LGA775

High End Desktop i9/i7
Core i7 Extreme/i7/i5/i3
Core 2 Extreme/Quad/Duo
Pentium/Pentium G
Celeron/Celeron G

AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
(NOTE: Manuals for AM4, please refer to FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2)

Ryzen
APU A12/A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Athlon II X4/X3/X2
Athlon X4



Technical Spec

Overall Dimension 121X75.5X135.7mm
Fan Dimension Φ120X25mm
Net Weight 429g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8~13.2VDC
Started Voltage 7VDC
Rated Current 0.13±10%A(MAX)
Power Input 1.56W
Fan Speed 900±150~1600±10%RPM
Max. Air Flow 55.50CFM
Noise 17.8~21dB(A)
EAN 6933412708124
P/N DP-MCH3-GMX300



Product Dimension
