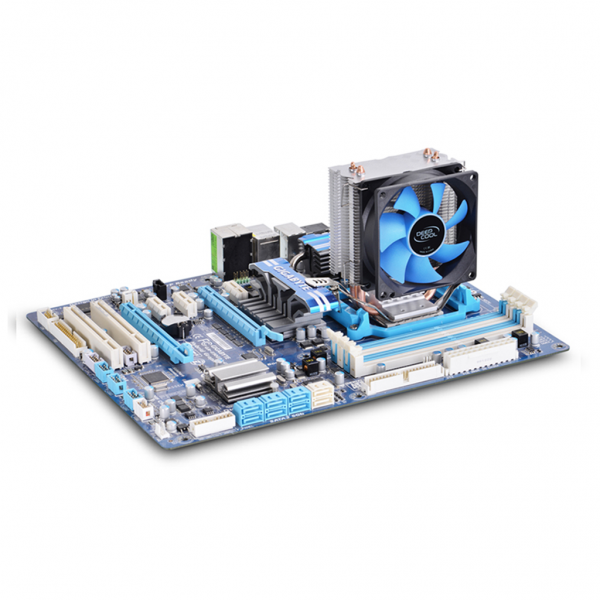

DEEPCOOL ICE EDGE MINI FS

DEEPCOOL ICE EDGE MINI FS

Online Shop in Thailand



AMD AM4 Ready. (NOTE: Refer to FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2 for the manuals)

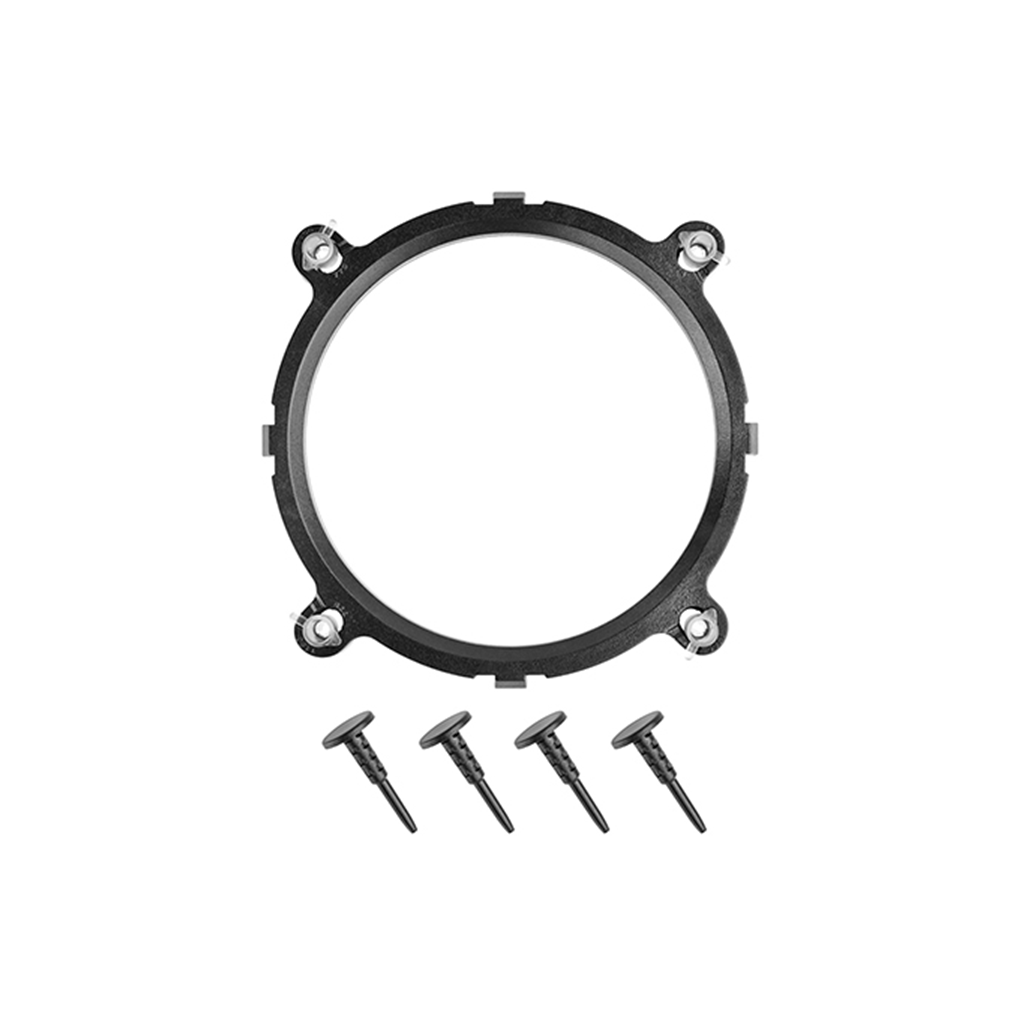

Equipped with multiple clips to support Intel LGA1155/1156/775 and AMD AM4/AM3/AM2+/AM2/K8.
2 sintered metal powder heatpipes directly contacting the CPU surface for removing heat and eliminating chances of overheating.
Specialized aluminum heatsink construction for efficient heat dissipation.
TPE fan housing designed to absorb operating vibration and reduce fan noise.

Application For

Intel Socket 95W

AMD Socket 100W

LGA115X/LGA775

Core i7/i5/i3
Core 2 Quad/Duo
Pentium/Pentium G
Celeron/Celeron G
AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
(NOTE: Manuals for AM4, please refer to FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2)

Ryzen
APU A12/A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Athlon II X4/X3/X2
Athlon X4

Technical Spec

Overall Dimension 119X75X112mm
Fan Dimension 80X80X25mm
Net Weight 276g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Operating Voltage 10.8~13.2VDC
Started Voltage 7VDC
Rated Current 0.12±10%A
Power Input 1.44W
Fan Speed 2200±10%RPM
Max. Air Flow 25.13CFM
Noise 24.7dB(A)

Product Dimension
