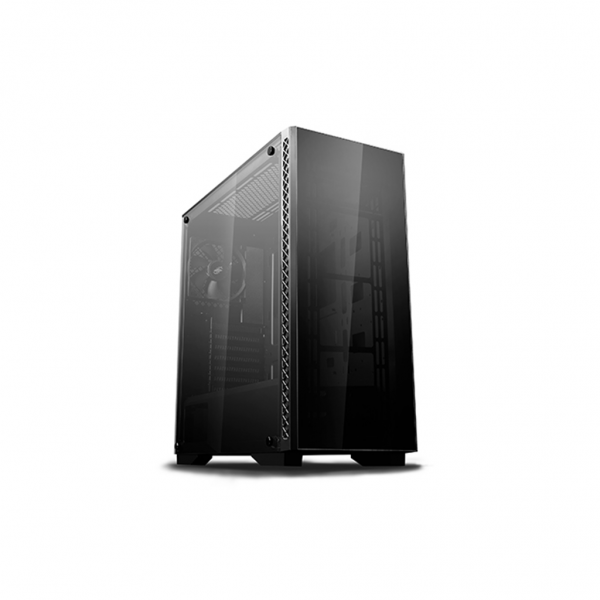

DEEPCOOL MATREXX 50
As a mid-tower case, Matrexx 50 is endowed with abundant space that supports up to E-ATX motherboard. With two large air intakes and an air exhaust, optimized airflow is guaranteed to keep your components cool. Matrexx 50 provides you with great building and using experiences
Online Shop in Thailand
Massive Cooling Compatibility
Optimized airflow is guaranteed with two large air intakes in two sides of the front panel, and an air exhaust in the back and on the top, to keep your components cool.
Dual 4mm Tempered Glass
Full-sized 4mm thickness, tempered glass side panel, and a front panel give the case a unique look to perfectly show off your inner structure.
Easy Cable Management
Cable managing is now easy with a 210mm wide tower compartment (24mm clearance).
PSU Shroud Added
Matrexx 50 is equipped with a PSU shroud to keep the cables and the system neat and tidy
 |
 |
Features
- Tempered glass side-panel and the front panel.
- Support installation of 120/140/240/280/360mm radiator in the front:120/140/240/280mm radiator on the top,120mm radiator in the rear.
- 210mm wide tower compartment with 24mm clearance for cable management.
- Supporting 168mm (max) CPU cooler height.
- Support 370mm (MAX) long Graphics Card installation.
- Magnetic dust-proof net on top, dust-filter in front, and bottom.
- Two large areas of air-intake on both sides of the front panel to ensure extreme cooling.
- A newly designed cable routing hole preset on PSU Shroud for better cable management with GPU Power cable.
Technical Spec
| Motherboard | Mini-ITX/Micro-ATX/ATX/E-ATX |
| Case Type | Middle Tower |
| Materials | ABS+SPCC+Tempered Glass |
| Product Dimensions | 442X210X479mm |
| Carton Dimensions | 515X275X510mm |
| Net Weight | 7.4Kg |
| Gross Weight | 8.5Kg |
| 5.25″ Drive Bays | 0 |
| 3.5″ Drive Bays | 2 |
| External 3.5” Drive Bays | 0 |
| 2.5″ Drive Bays | 4 |
| I/O Ports | USB2.0×2、USB3.0×1、Audio×1、Mic×1 |
| Expansion Slots | 7 Slots |
| Power Supply Type | ATX PS2 （maximum length: 170mm） |
| Cable Management | 24mm clearance |
| CPU Cooler Height Limit | 168 mm |
| VGA Length Limit | 370mm Horizontal, 340mm Vertical |
| Cooling Fans Support | Optional: Front:140mm×3/120mm×3; Top:140mm×2/120mm×2 Pre-installed: Rear:120mm×1 |
| Liquid Cooler Support | Front:120/140/240/280/360mm;Top:120/140/240/280mm; Rear:120mm |
| EAN | 6933412713906 |
| P/N | DP-ATX-MATREXX50 |
Product Dimension
