DEEPCOOL MATREXX 70
A new-concept chassis specially designed for the enjoyment of DIY. By adopting numerous novel tructural designs, its architecture yields convenience and flexibility in PC building. As a mid-tower case, it’s also endowed with abundant space that supports up to E-ATX motherboard.
Online Shop in Thailand
Removable Radiator Holder
- The radiator holder simplifies the installation of liquid coolers and replacement of the radiators. It’s especially effort-saving when you need to install radiators or fans on different sides of the holder.
- The holder supports up to 360mm radiator or 3*140mm fans.
- Removable tinted tempered Glass PSU Shroud
- In MATREXX 70, DEEPCOOL creatively used tinted tempered glass as the top cover of PSU shroud, which is pioneering in the industry.
Lighting Effects of LED Strip on the Power Shield (LED Strips are not included in the case）
Flexible Ventilation Solutions with Excellent Performance
With air intake options at front and bottom, exhaust options at the top and rear, MATREXX 70 provides highly flexible ventilation solutions. Meanwhile the 15mm-wide front intake hole guarantees sufficient air supply, together with the low friction material applied on all meshes, the cooling efficiency is maximized.
 |
Simple & Sleek Design

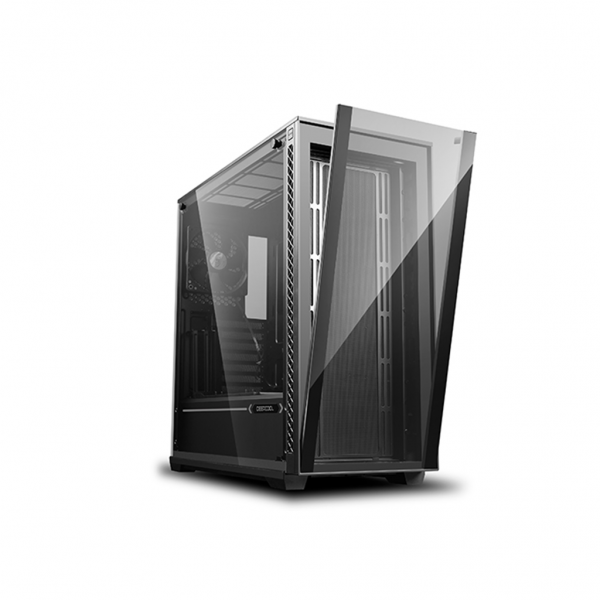

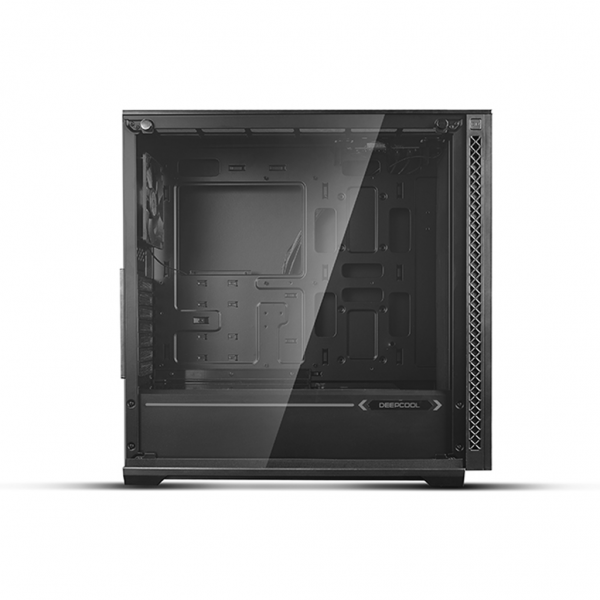

The front and side panels are made of full-sized, tinted tempered glass. They display your gears with a classy filter while keeping the overall look clean .
|
 |
Motherboard support
E-ATX( Up to 330mm )
ATX Micro-ATX Mini-ITX |
 |
All-round Dust Proof
Dust filters are installed at the front, top and bottom of the case.The all-round and fine coverage offers remarkable dust-proof capabilities. Meanwhile the top filter is magnetic whereas the front/bottom filters are inserted, which makes them very easy to clean.
|
 |
Abundant Storage Support
A total of 6* 2.5’’ drives or 4*2.5’’ + 2* 3.5’’ drives can be mounted in MATREXX 70. 2 SSD bays are fixed at the back of motherboard tray for quick installation. 2* 3.5/2.5’’ hard drive bays are mounted at the bottom of the case which are relocatable and removable.After removal, 2*120mm fans can be installed at the location.
|
 |
Spacious Interior
The case’s dimensions are 484×233×492mm, offering gigantic room to manage cables (170mm motherboard tray-to-glass clearance, 30mm motherboard tray-to-back plate clearance).
|
Features
- Large mid tower case supporting up to E-ATX(330mm) motherboard.
- 228mm wide tower compartment with 30mm clearance for cable management.

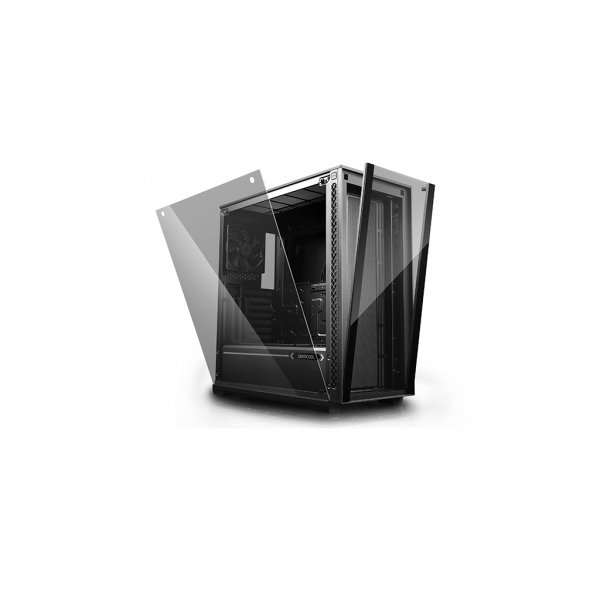

- Easy-to-install front and side panels.
- Quick-mounting radiator/fan holders pre-installed at the front.
- Supports installation of 120/140/240/280/360mm radiator liquid cooling system at front, 120/140/240/280/360mm radiator liquid cooling system at top, 120mm radiator liquid cooling system at rear.
- Removable tempered glass PSU-HDD top cover, offering top-notch lighting ambient.
- Magnetic dust filters at the top, insert-in dust filters at bottom and front
Technical Spec
| Motherboards | E-ATX/ATX/Micro ATX/Mini-ITX |
| Case Type | Middle Tower |
| Materials |
ABS+SPCC+Tempered Glass
|
| Product Dimensions (L×W×H) | 475×228×492mm |
| Net Weight | 8.89 kg |
| Gross Weight | 10.31 kg |
| 5.25″ Drive Bays | 0 |
| 3.5″ Drive Bays | 2 |
| 2.5″ Drive Bays | 4 |

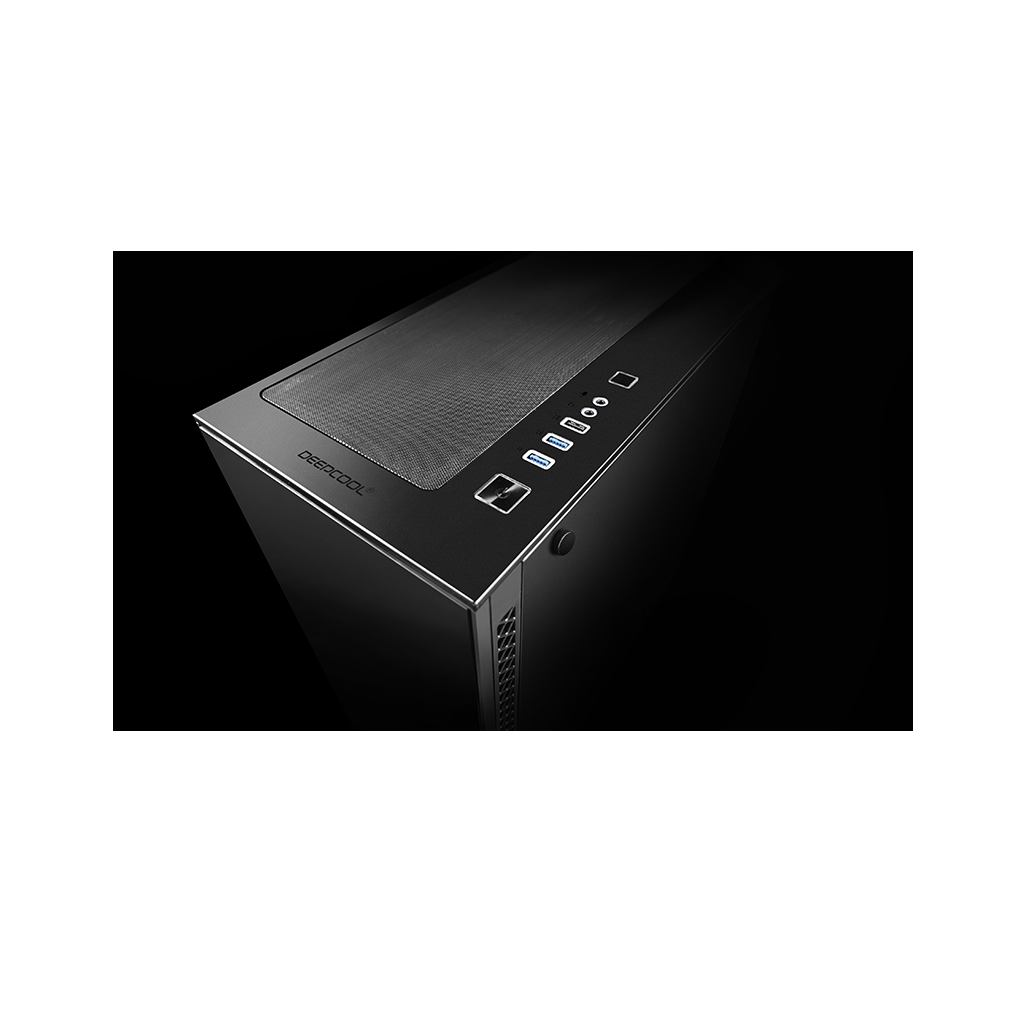

| I/O Ports | 2×USB3.0/1×USB2.0/1xAudio(HD)/1xMic |
| Expansion Slots | 7 +2 |
| Cooling Fans Support |
Pre-installed: Rear: 1×120mm. Optional: Front: 3×120/140mm; Top: 3×120/140mm
|
| Cable Management | 30mm Clearance |
| Liquid Cooler Support | Front: 120/140/240/280/360mm radiator; Top: 120/140/240/280/360mm radiator; Rear: 120mm radiator |
| Power Supply Type | ATX PS2 (maximum length: 200mm) |
| CPU Cooler Height Limit | 170mm |
| VGA Length Limit | 380mm (horizontal)/360mm (vertical) |
| Carton Dimension (LxWxH) | 537×285×539mm |
| EAN | 6933412713753 |
| P/N | DP-ATX-MATREXX70-BKG0P |
Product Dimensions
