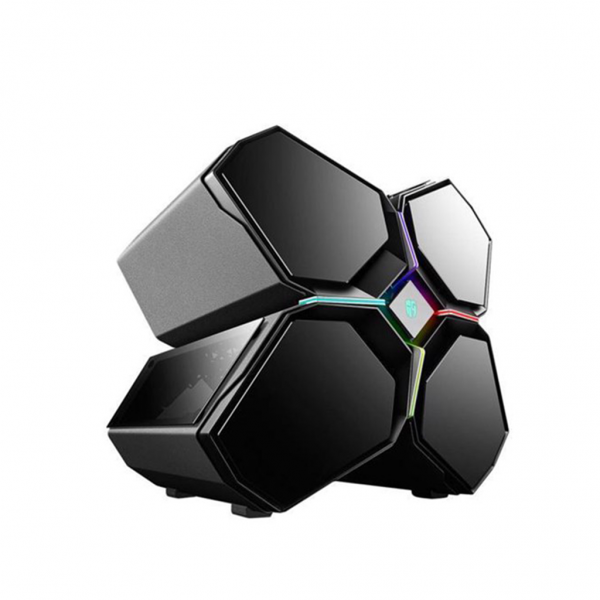

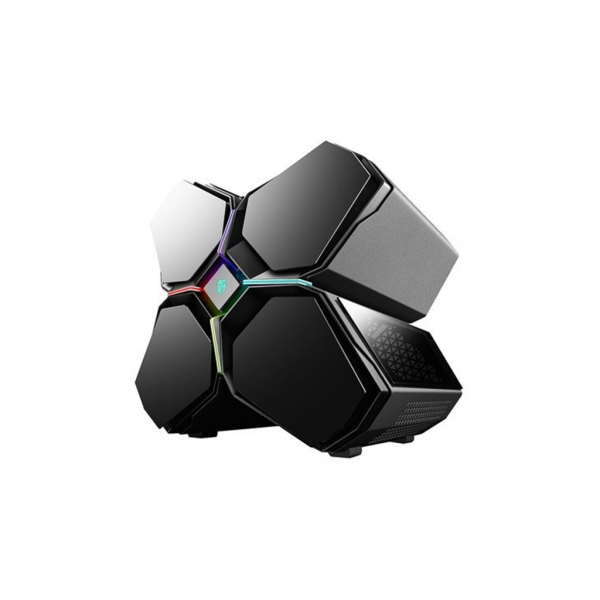

DEEPCOOL QUADSTELLAR
QUADSTELLAR – the world’s first smart PC case has revolutionized conventions by allowing users to customize RGB lighting and heat dissipation systems through an APP
Online Shop in Thailand
Developed for power rig builders, QUADSTELLAR also comes with an APP for dynamic management of lighting, heat dissipation and active thermal control components

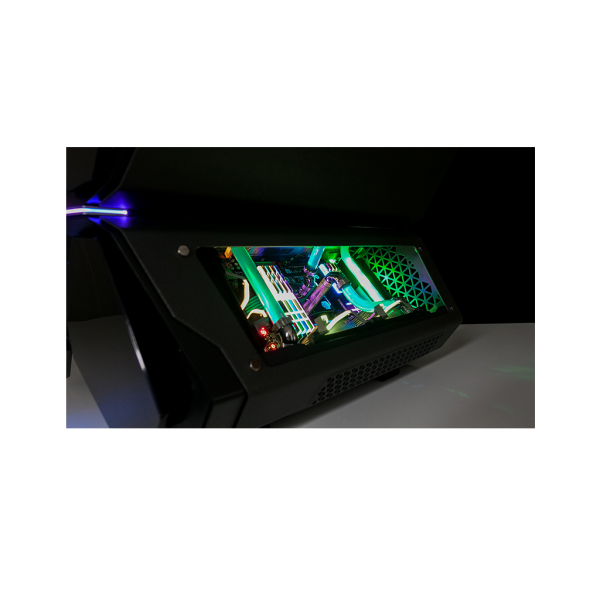

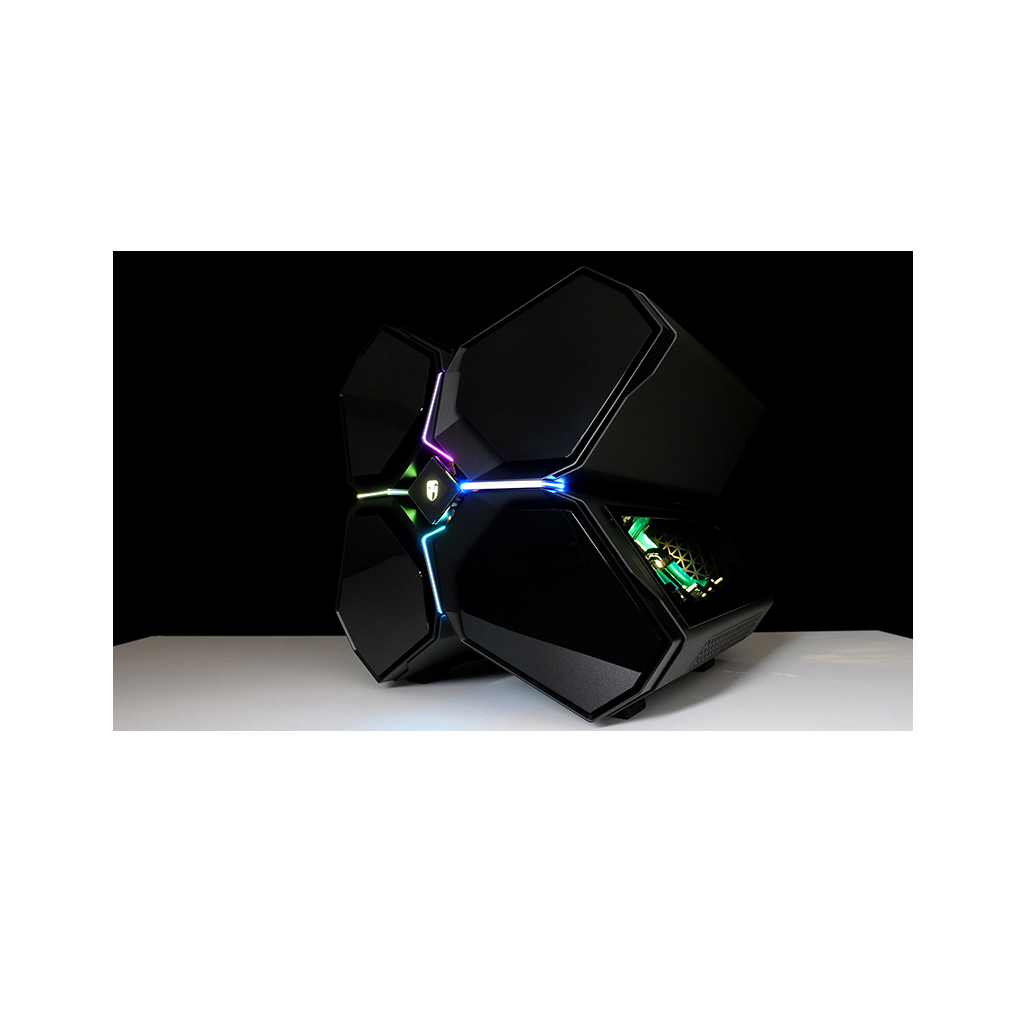

- Customizable RGB Lighting System to create a gamers’ exclusive gaming atmosphere
- Adjustable fan speed to achieve an optimal balance between speed and noise
- Intelligent temperature control, featuring higher accommodation and cooling performanc
- Optimized heat dissipation and ventilation channels designed using heat dissipation simulations, physical prototype testing, and IR spectrograms. Active thermal control gates provide maximum cooling efficiency
- QUADSTELLAR comes with a futuristic, high-tech design, with a chassis frame crafted using precision engineered cast aluminum technology
How to switch to RGB Motherboard control
1. Connect the cable provided in box onto the 3pin header on control-board as indicated
2. Connect with the cable offered by motherboard
3. Put it onto the ADD_HEADER on motherboard as indicated
4. Switch to “External Control”on APP
 |
 |
| Magnet-mounted dust filter provided at the front panel, offering users easy removal and cleaning experience | All-metal structure ensures overall rigidity and quality while keeping the weight down |
 |
 |

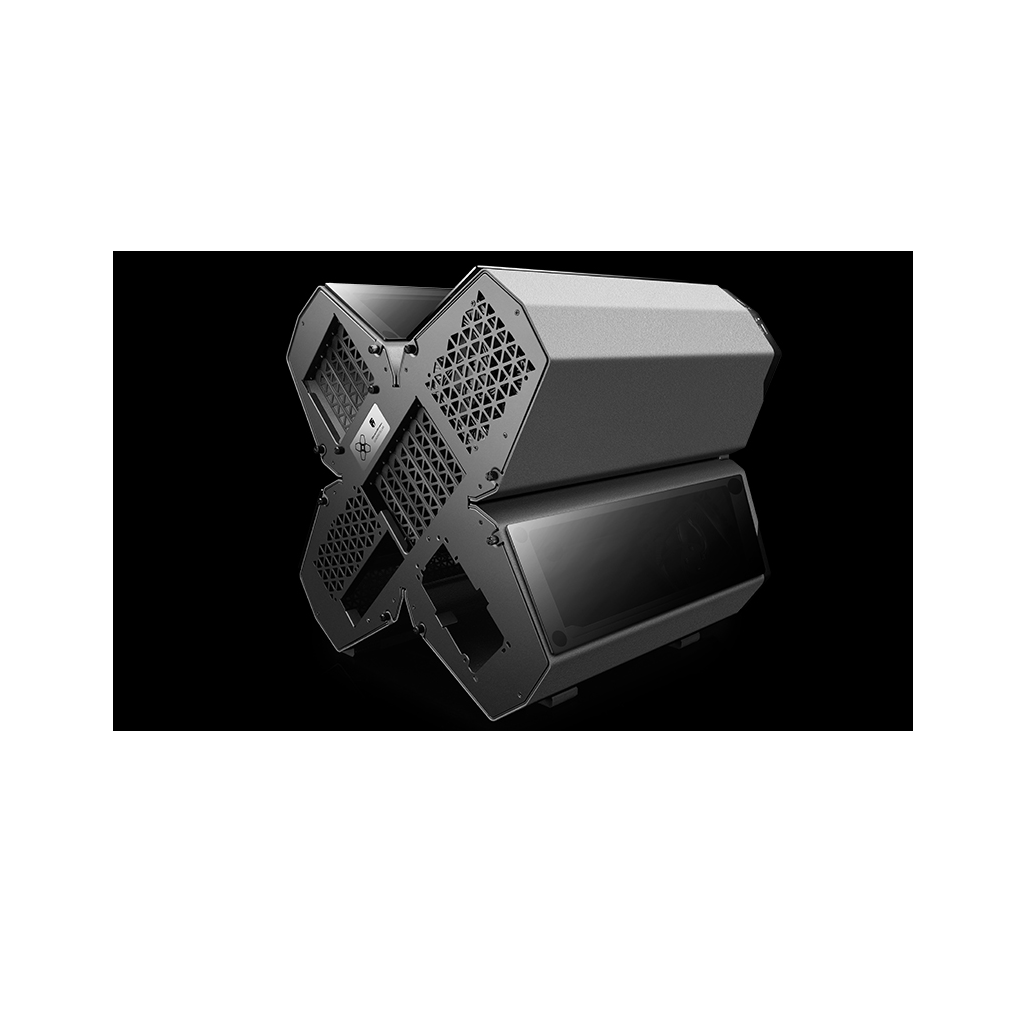

| QUADSTELLAR nameplate in the rear, creating your exclusive authentication | Novel triangular vent designs provide a great boost to ventilation rate and improved cooling performance |
Features

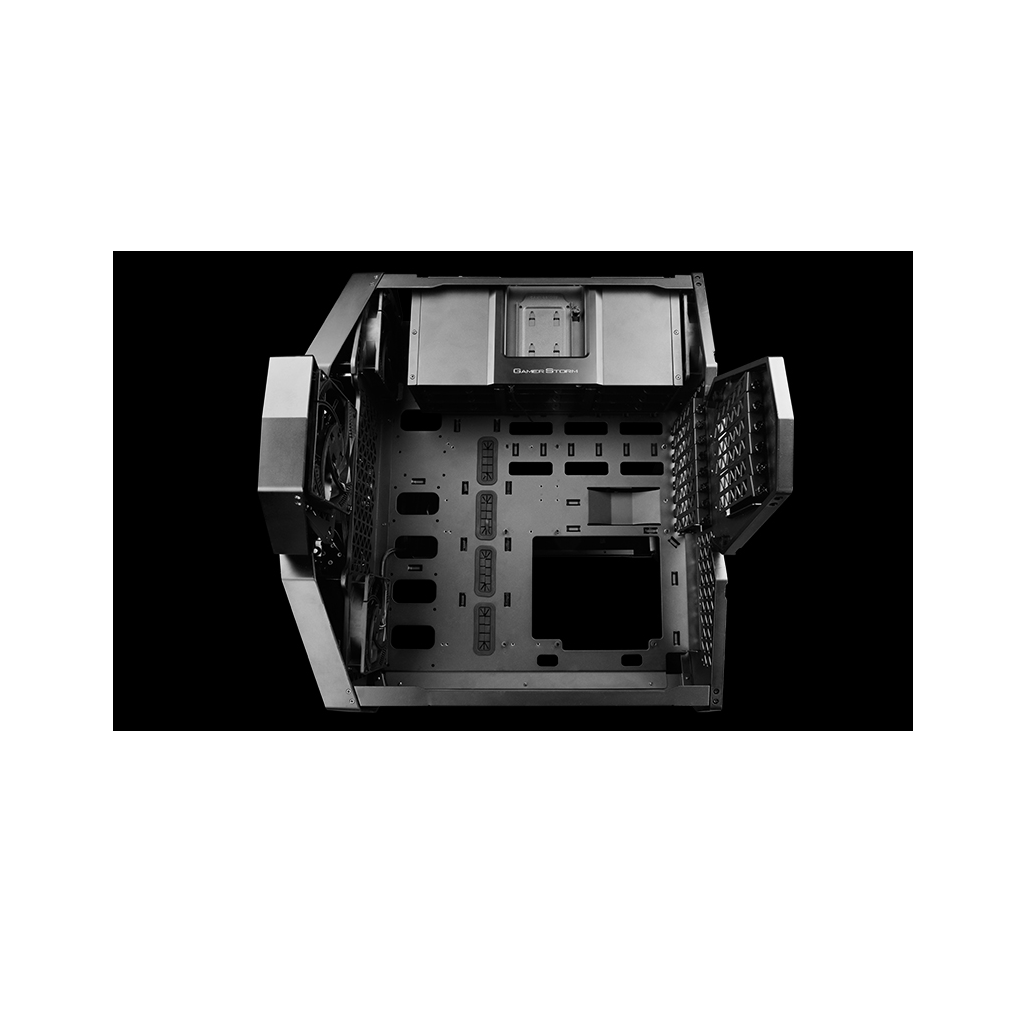

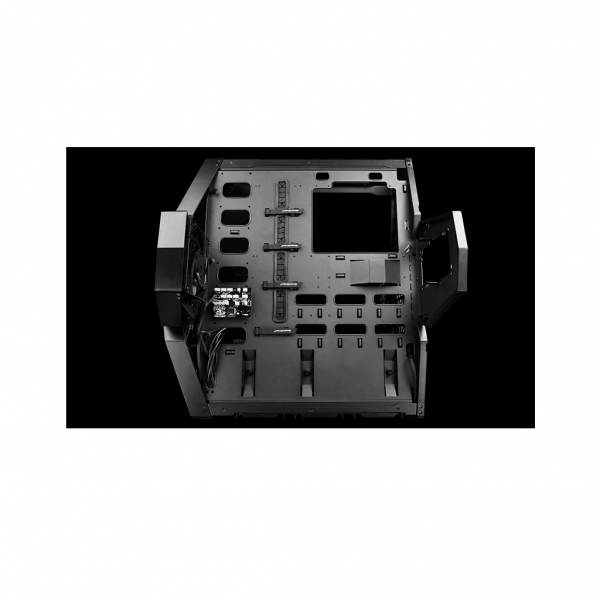

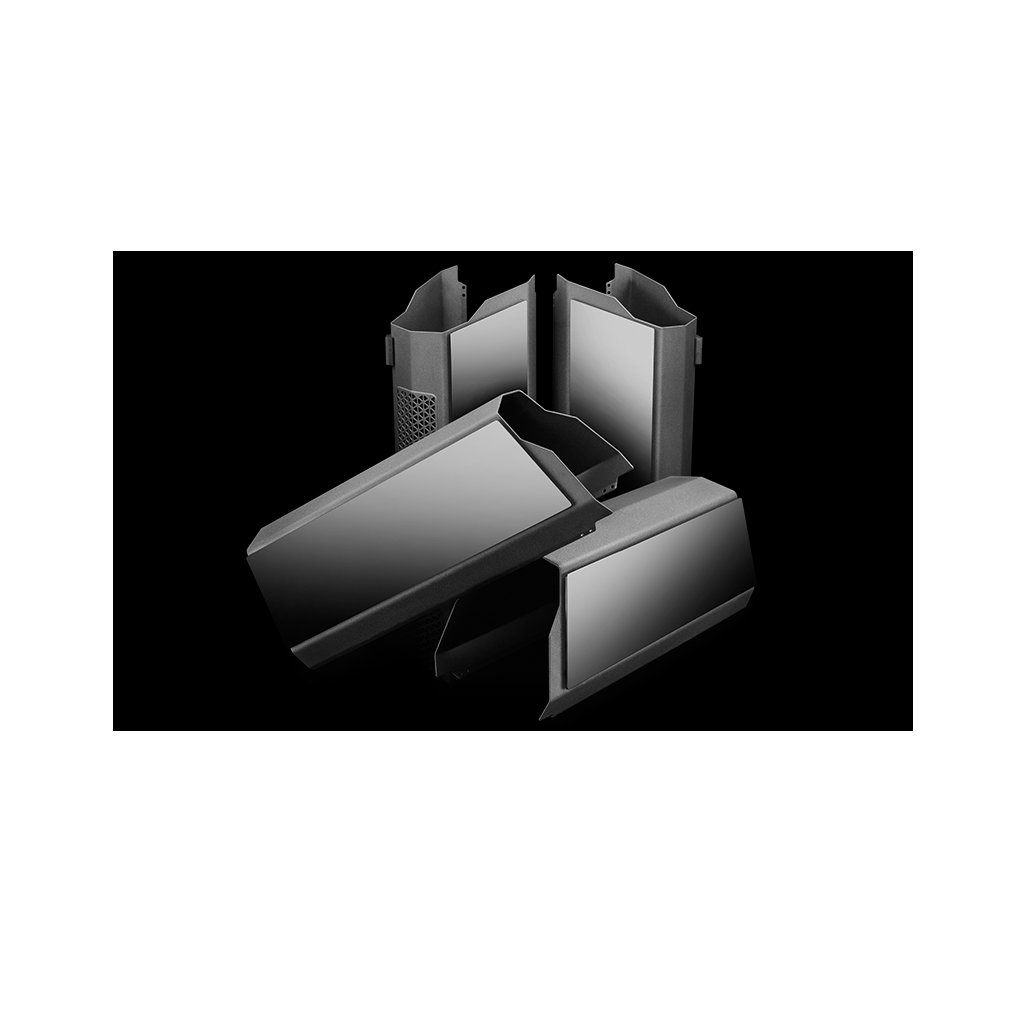

- Outfitted with 4 independent functional compartments to eliminate heat dissipation interference for different hardware components
- Optimized heat dissipation ventilation channels designed using heat dissipation simulation, physical prototype testing, and IR spectrograms
- Smart mobile device APP control for dynamic management of lighting / heat dissipation / active thermal control gates
- Chassis frame crafted using precision engineered cast aluminum technology, enhancing overall quality while maximizing weight reduction features of QUADSTELLAR

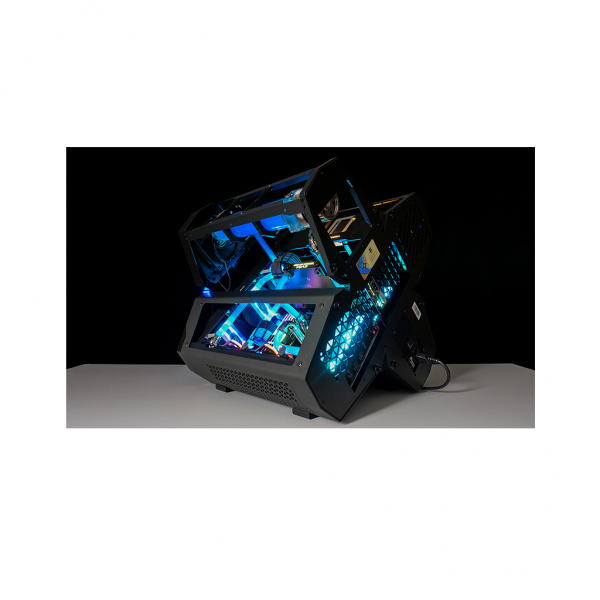

- Reserved areas for installing high-end separable water-cooling accessories to maximize the gamer vibe and compatibility

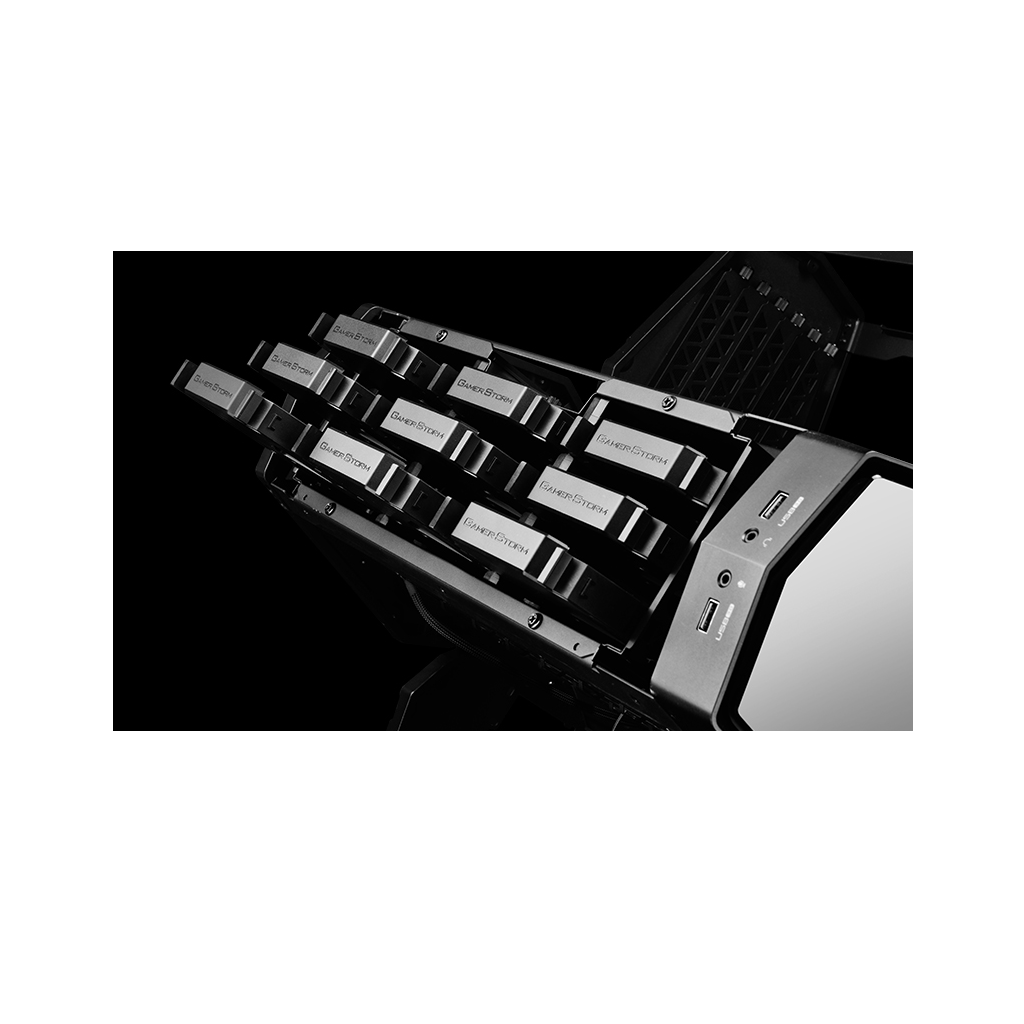

- Fitted with 8 x 3.5-inch and 2 x 2.5-inch drive bays (with additional 3 x 2.5-inch bays in the case) to offer a huge capacity for game files or data storage
- Independent graphic card compartment supports up to 3-WAY SLI / CrossFire cards（or normal 4 – WAY）
- Pre-installed one extra PCI-E Extension Cable (PEC300), if you need more, please buy PEC300 separately from your local market
Technical Spec
| Motherboards | E-ATX (305×330mm Max)/ATX/M-ATX/Mini-ITX |
| Materials | SPCC, Aluminum, Tempered Glass |
| Product Dimension | 538×483×493mm (L×W×H) |
| Net Weight | 14.5 kg |
| Gross Weight | 17.8 kg |
| 5.25″ Drive Bays | 0 |
| RGB Lights | RGB lighting effects controlled by Quadstellar APP(Addressable RGB Sync Supported) |
| 3.5″/2.5”Drive Bays | 8 |
| 2.5″ Drive Bays | 5 |
| I/O Panel | 2×USB3.0/Audio(HD)×1/Mic×1 |
| Expansion Slots | 8+6 |
| Cooling Fans | Pre-installed: Patented TF120 Fan×5pcs(Rear: 1×120mm; Front: 4×120mm); Optional: Front: 6×120mm; Rear:1×120/2×80mm; Side: 2×120mm |
| Power Supply Type | ATX PS2 (300mm length max) |
| CPU Cooler Compatibility | 110mm height max; Liquid Cooler Compatibility: Front: 120/240/360mm; Bottom: 120/240mm(28mm thickness MAX); |
| Graphic Card Compatibility | 380mm max |
| Carton Dimension | 598×565×567mm (L×W×H) |
| EAN | 6933412713470 |
| P/N | DP-EATX-QUADSTLR |

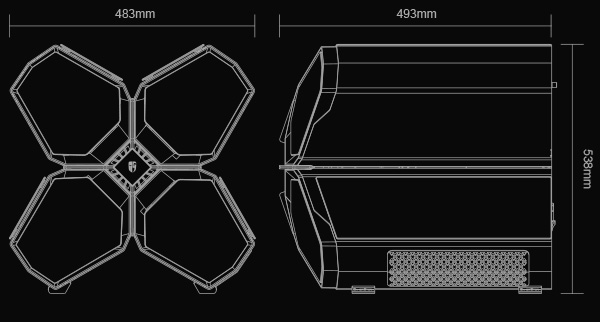

Product Dimension
