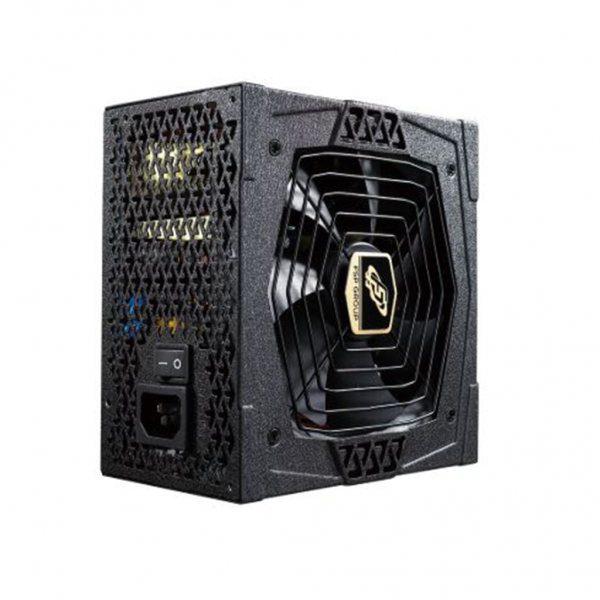

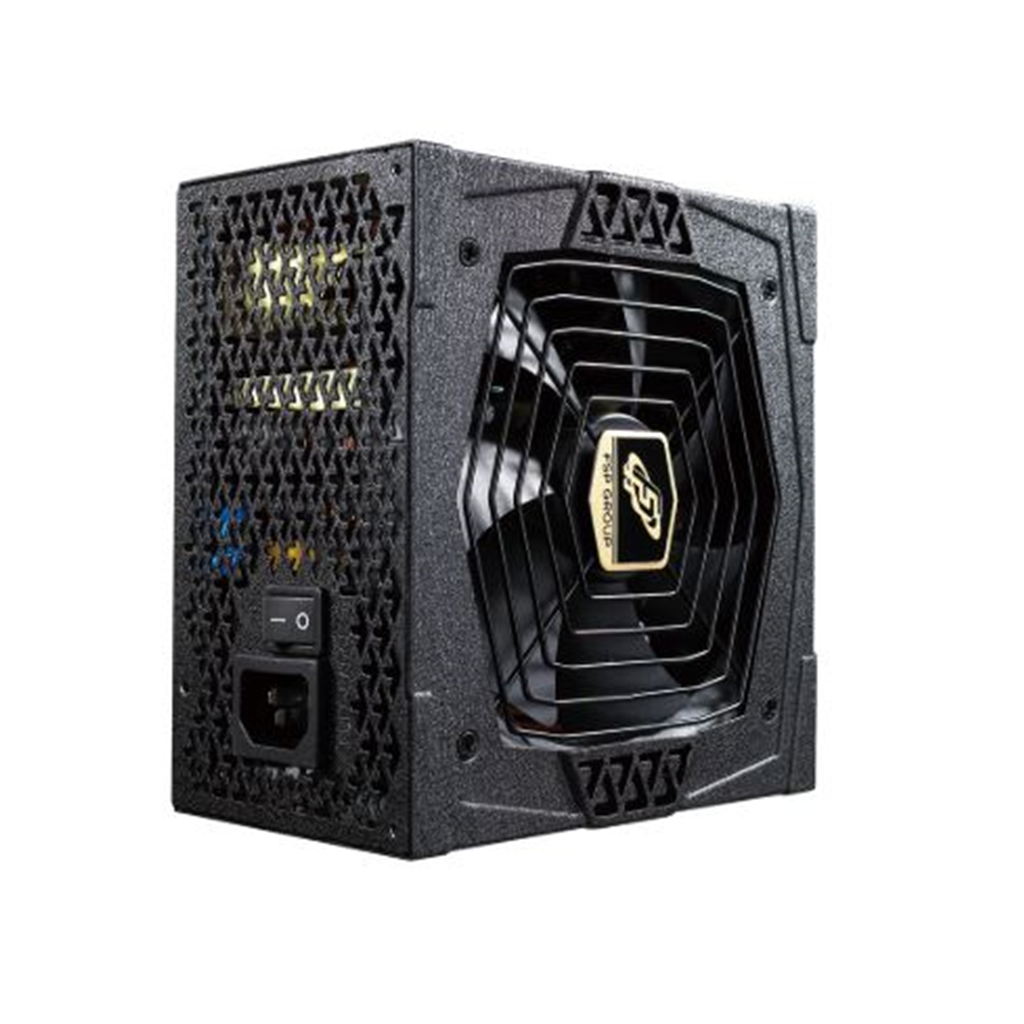

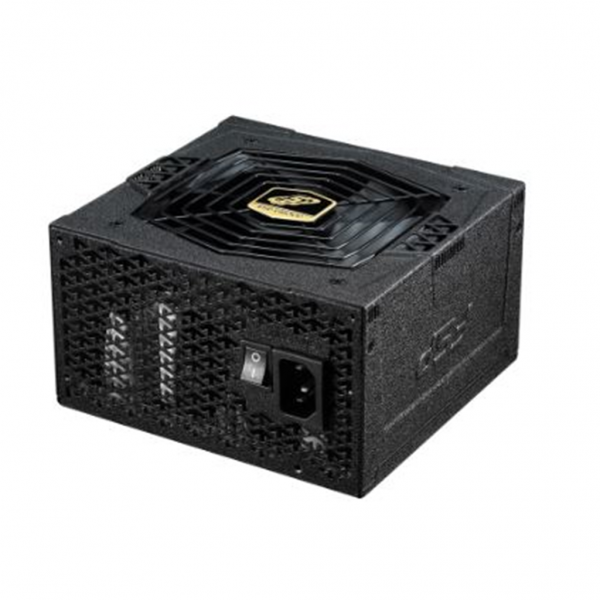

FSP 1200W AURUM PT (80+ PLATINUM)
- Complies with ATX 12V 2.31 & EPS 12V 2.92 version
- 80 PLUS® GOLD Certification
- High efficiency > 90%
- Active PFC > 99%
- +12V Single Rail Circuit Design
- SATA Array Cable Design
- Full Sleeved Cable
- Multiple PCI-E VGA Power Connectors
- Complete Protections: OCP, OVP, SCP, OPP, UVP
- Full Safety Approved
AC/DC
| Model No. | AS-600 | ||||
| AC Input | 100-240Vac ~ 8-4A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 24A | 24A | 46A | 0.3A | 3.0A |
| Max Combined Power | 130W | 552W | 18.6W | ||
| Total Power | 600W | ||||
Specifications
| Model | PT-1200FM |
| Rated Output Power | 1200W |
| Form Factor | ATX12V V2.4 & EPS12V V2.92 |
| 80 PLUS Certification | PLATINUM |
| Input Voltage | 110-240Vac (Full Range) |
| Input Current | 9-15A |
| Input Frequency | 50~60Hz |
| PFC | Active PFC (>0.9 typical) |
| Efficiency | >92%@ Typical Load |
| Fan Type | 135mm FDB Fan |
| Noise | < 21 dBA |
| Dimensions(L x W x H) | 190 x 150 x 86mm / 7.5 x 5.9 x 3.4 inch |
| Weight | 3480g |
| Operation Temp. | 0~40°C / 32°F~104°F |
| Protection | OCP/OVP/ SCP/ OPP/ UVP/ OTP |
| Safety Approval | CE/TUV/FCC/EAC/CCC/BSMI/RCM/KC |
